2 - Mid Structures - 2.1 - Monocoque

McLaren Artura

Find Your Part

McLaren Artura - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA071 SCREW - M6X16 - BUTTON Enquire To Order
16AE748CP NUT PLATE DOOR STRIKER - MOUNTING LH $27.08 To Order
Photo Part No Description Price (each) Stock
16AB713CP TUB 75MM IP CORE SEAL $6.69 To Order
16AF183CP BRACKET MOUNTING DOOR STRIKER - LH $86.29 To Order
Photo Part No Description Price (each) Stock
16AE748CP NUT PLATE DOOR STRIKER - MOUNTING LH $27.08 To Order
00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Enquire To Order
Photo Part No Description Price (each) Stock
16AF183CP BRACKET MOUNTING DOOR STRIKER - LH $86.29 To Order
16AE742CP ASSY STRIKER TETHER $65.75 To Order
Photo Part No Description Price (each) Stock
00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Enquire To Order
00RA812 BLT-HX HD-FL-M6X1X20-8.8-78 LP - WITH PATCHLOCK Enquire To Order
Photo Part No Description Price (each) Stock
16AE739CP BRACKET MOUNTING DOOR STRIKER - RH $78.97 To Order
00RC051 WASHER - M6X4.0MM Enquire To Order
Photo Part No Description Price (each) Stock
16AF184CP NUT PLATE DOOR STRIKER - MOUNTING RH $111.69 To Order
Photo Part No Description Price (each) Stock
00RA709 SCR-BTN HD-TX-M8X1.25X40-10.9- Enquire To Order
16AE749CP BRACKET MOUNTING DOOR STRIKER - RH $27.08 To Order
Photo Part No Description Price (each) Stock
16AA192MP HARNESS BAR $3,262.94 To Order
16AB713CP TUB 75MM IP CORE SEAL $6.69 To Order
Photo Part No Description Price (each) Stock
16AA140MP HARNESS BAR-BRACKET-LH $966.78 To Order
00RA071 SCREW - M6X16 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
16AA141MP HARNESS BAR-BRACKET-RH $966.78 To Order
00RA782 THD-INS-M8X1.0X12-M6X1.0-STL-80 Enquire To Order
Photo Part No Description Price (each) Stock
16AA051MP NUT-HEX-PLAIN-M8X1.25-10 $1.00 To Order
11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE Enquire To Order
Photo Part No Description Price (each) Stock
00RA485 BOLT - HEX HEAD - FLANGED - M8X25 Enquire To Order
11A5736CP PLUG - TUB DATUM $7.29 To Order
Photo Part No Description Price (each) Stock
00RA666 SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72 Enquire To Order
16AB620SP STRUCTURAL ABSORBER LH - MACHINED Enquire To Order
Photo Part No Description Price (each) Stock
14AA040MP ROLL HOOP-CONDUCTIVITY-LINK LH $152.32 To Order
16AB621SP STRUCTURAL ABSORBER RH - MACHINED Enquire To Order
Photo Part No Description Price (each) Stock
14AA041MP ROLL HOOP-CONDUCTIVITY-LINK RH $152.32 To Order
16AF810CP TAPE-FELT 100MM LENGTH - 35MM X 1.8MM $0.61 To Order
Photo Part No Description Price (each) Stock
00RA702 RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT Enquire To Order
16AD570CP TUB HOLES FOOT REST FOAM PLUG $5.46 To Order
Photo Part No Description Price (each) Stock
16AD570CP TUB HOLES FOOT REST FOAM PLUG $5.46 To Order
Photo Part No Description Price (each) Stock
11A5736CP PLUG - TUB DATUM $7.29 To Order

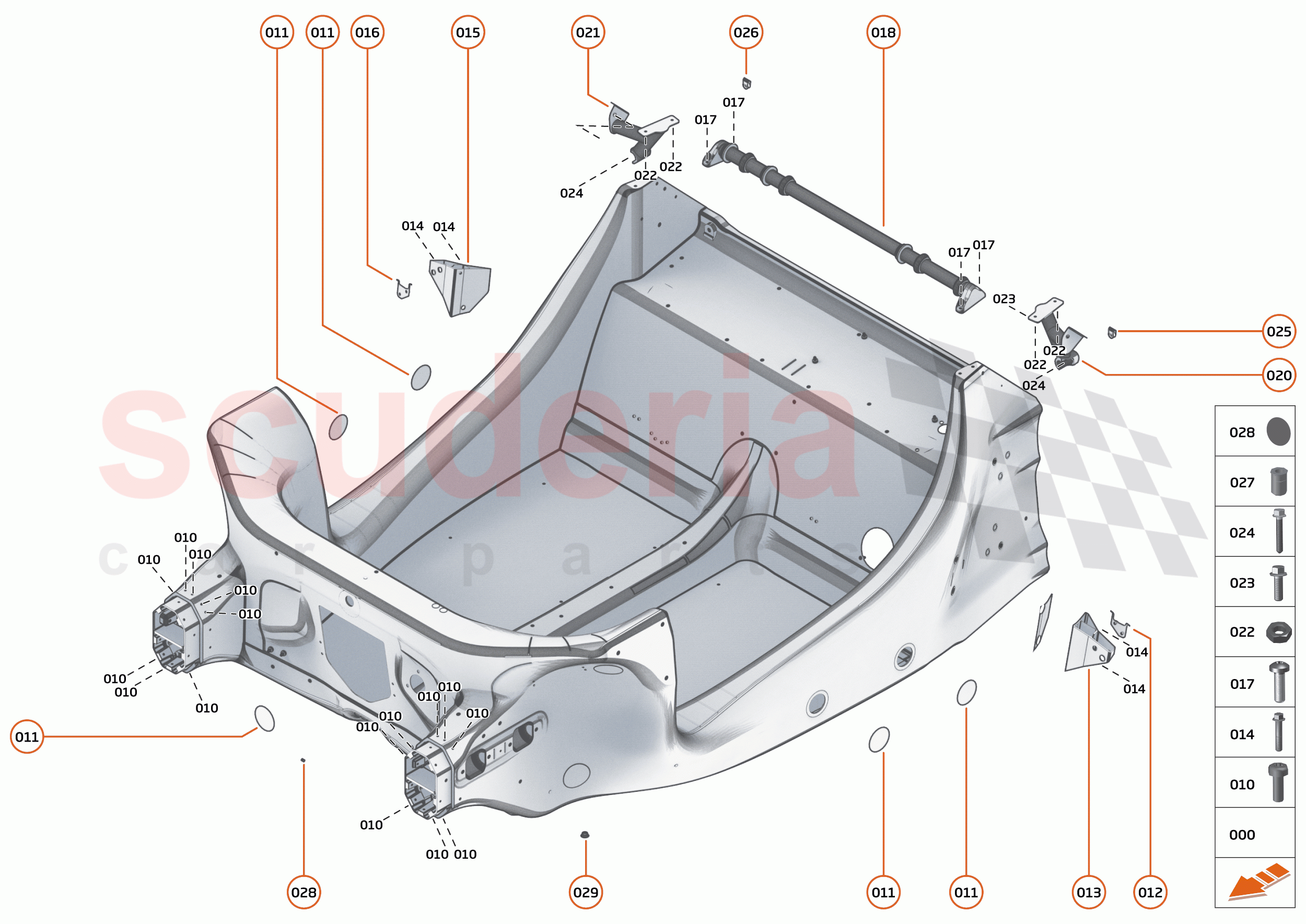

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

00RA666

SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72

 -

00RA485

BOLT - HEX HEAD - FLANGED - M8X25

 -

00RA071

SCREW - M6X16 - BUTTON

 -

16AE748CP

NUT PLATE DOOR STRIKER - MOUNTING LH

from $27.08

16AB713CP

TUB 75MM IP CORE SEAL

from $6.69

16AF183CP

BRACKET MOUNTING DOOR STRIKER - LH

from $86.29

00RA486

BOLT - HEX HEAD - FLANGED - M8X30

 -
013 16AE742CP
ASSY STRIKER TETHER 		$65.75 -
TO
014 00RA812
BLT-HX HD-FL-M6X1X20-8.8-78 LP - WITH PATCHLOCK 		- -
PE
 Enquire
015 16AE739CP
BRACKET MOUNTING DOOR STRIKER - RH 		$78.97 1
TO
015 00RC051
WASHER - M6X4.0MM 		- -
PE
 Enquire
016 16AF184CP
NUT PLATE DOOR STRIKER - MOUNTING RH 		$111.69 1
TO
017 00RA709
SCR-BTN HD-TX-M8X1.25X40-10.9- 		- 4
PE
 Enquire
017 16AE749CP
BRACKET MOUNTING DOOR STRIKER - RH 		$27.08 1
TO
018 16AA192MP
HARNESS BAR 		$3,262.94 1
TO

00RA702

RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT

 -
020 16AA140MP
HARNESS BAR-BRACKET-LH 		$966.78 1
TO
021 16AA141MP
HARNESS BAR-BRACKET-RH 		$966.78 1
TO
021 00RA782
THD-INS-M8X1.0X12-M6X1.0-STL-80 		- 2
PE
 Enquire
022 16AA051MP
NUT-HEX-PLAIN-M8X1.25-10 		$1.00 4
TO
022 11A7484CP
CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE 		- 12
PE
 Enquire

11A5736CP

PLUG - TUB DATUM

from $7.29

024 16AB620SP
STRUCTURAL ABSORBER LH - MACHINED 		- 1
PE
 Enquire
025 14AA040MP
ROLL HOOP-CONDUCTIVITY-LINK LH 		$152.32 1
TO
025 16AB621SP
STRUCTURAL ABSORBER RH - MACHINED 		- 1
PE
 Enquire
026 14AA041MP
ROLL HOOP-CONDUCTIVITY-LINK RH 		$152.32 1
TO
026 16AF810CP
TAPE-FELT 100MM LENGTH - 35MM X 1.8MM 		$0.61 1
TO

16AD570CP

TUB HOLES FOOT REST FOAM PLUG

from $5.46

030 00RA481
BOLT - HEX HEAD - FLANGED - M8X45 		- 4
PE
 Enquire
031 00RA534
Bolt - M10x85 - Hex 		- 1
PE
 Enquire
032 11A4791CP
SOP-RIVNUT-M6-0.7-1.5-2330.706 		$6.87 1
TO
032 11A4775CP
Rivnut - M6 - 3.0-4.5 - 2330.706-0045 		$5.46 1
TO
032 11A4783CP
SOP-RIVNUT-M6-3.0-5.5-2330-706 		$5.46 1
TO
032 11A4776CP
Rivnut - M5 - 2.0-3.0 - 2330.705-0030 		$5.46 1
TO
032 11A4774CP
SOP-RNUT-M6-1.50-3.00-2330-706 		$5.46 1
TO
032 11A4773CP
SOP-RIVNUT-M5-3.0-4.0-2330-705 		$5.25 1
TO
032 11A4769CP
SOP-RIVETSTUD-M5x15-315-3732-7 		$5.88 1
TO
