1 - Front Structures - 1.1 - Front Crash Structure

McLaren Artura

Find Your Part

McLaren Artura - 1 - FRONT STRUCTURES - 1.1 - FRONT CRASH STRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16A0028CP ASSY - FRONT CRASH STRUCTURE - LH Enquire To Order
16AE495CP ASSY - FRONT CRASH STRUCTURE - RH $1,624.84 To Order
Photo Part No Description Price (each) Stock
16AE494CP ASSY - FRONT CRASH STRUCTURE - LH $1,624.84 To Order
Photo Part No Description Price (each) Stock
14AA239CP BUMPER BEAM - FRONT $1,832.86 To Order
Photo Part No Description Price (each) Stock
00RA282 SCREW - 12X25 - BUTTON Enquire To Order
00RA282 SCREW - 12X25 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
Photo Part No Description Price (each) Stock
00RX043 BOLT - HEX HEAD - FLANGE - M8X20 Enquire To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
00RM013 RIVET - 1/4 4.7-11MM - BLIND - HUCKLOK Enquire To Order
Photo Part No Description Price (each) Stock
16AE202CP FEDERAL-FRONT CRASH BRKT Enquire To Order
Photo Part No Description Price (each) Stock
14A4254CP NUT PLATE - BUMPER MOUNTING - FRONT - INBOARD $30.44 To Order
Photo Part No Description Price (each) Stock
14A4434CP NUT PLATE - BUMPER MOUNTING - FRONT - OUTBOARD $30.44 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order

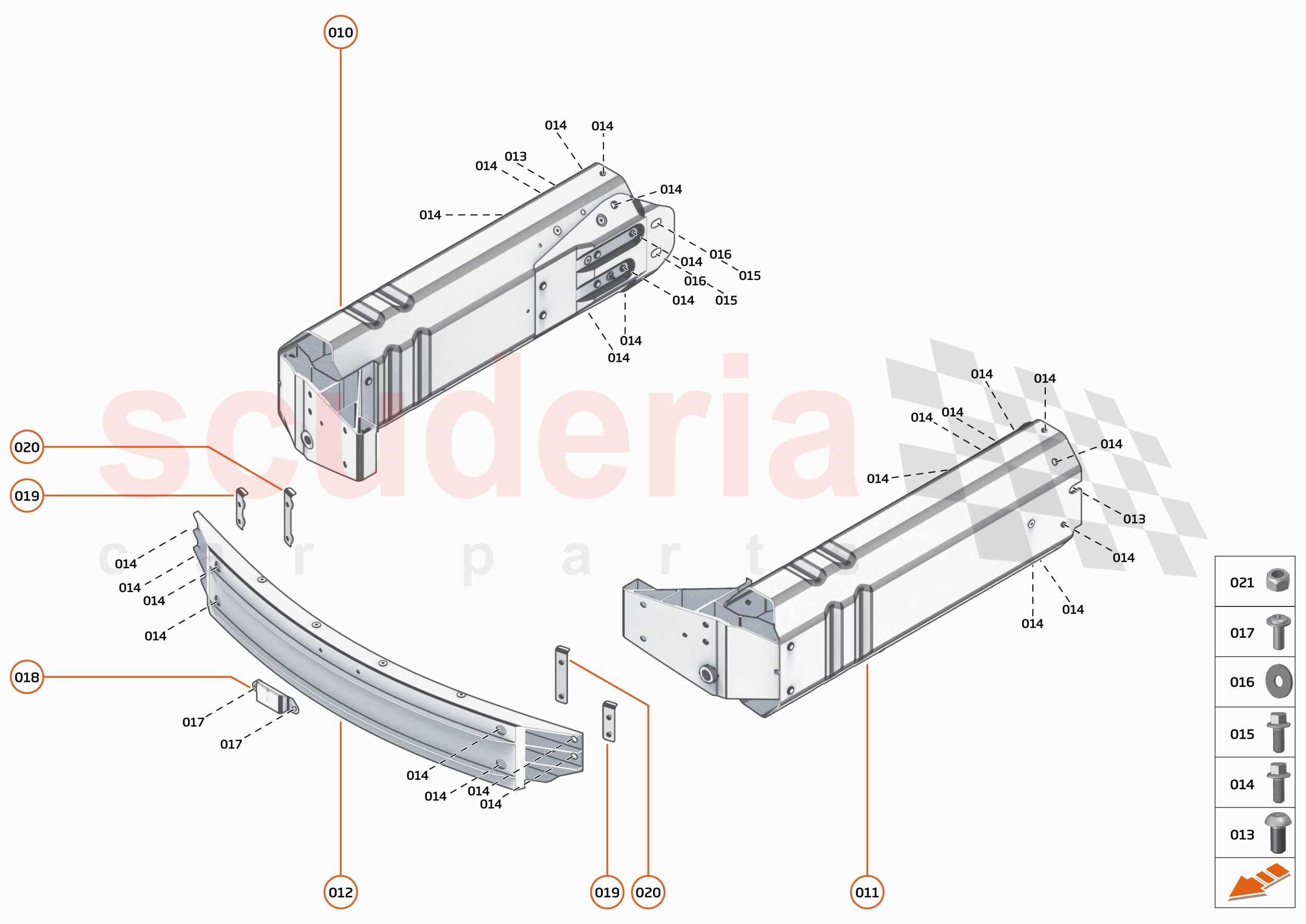

1 - FRONT STRUCTURES - 1.1 - FRONT CRASH STRUCTURE of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16A0028CP
ASSY - FRONT CRASH STRUCTURE - LH 		- 1
PE
 Enquire
010 16AE495CP
ASSY - FRONT CRASH STRUCTURE - RH 		$1,624.84 1
TO
011 16AE494CP
ASSY - FRONT CRASH STRUCTURE - LH 		$1,624.84 1
TO
012 14AA239CP
BUMPER BEAM - FRONT 		$1,832.86 1
TO

00RA282

SCREW - 12X25 - BUTTON

 -

00RA557

BOLT - HEX HEAD - M8X1.25X25

 -
015 00RX043
BOLT - HEX HEAD - FLANGE - M8X20 		- 2
PE
 Enquire
016 00RC015
WASHER - M8X24X2 		- 2
PE
 Enquire
017 00RM013
RIVET - 1/4 4.7-11MM - BLIND - HUCKLOK 		- 2
PE
 Enquire
018 16AE202CP
FEDERAL-FRONT CRASH BRKT 		- 1
PE
 Enquire
019 14A4254CP
NUT PLATE - BUMPER MOUNTING - FRONT - INBOARD 		$30.44 2
TO
020 14A4434CP
NUT PLATE - BUMPER MOUNTING - FRONT - OUTBOARD 		$30.44 2
TO
021 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 2
PE
 Enquire
