35 - Engine - 35.8 - Electrical System

McLaren 765LT Spider

Find Your Part

McLaren 765LT Spider - 35 - ENGINE - 35.8 - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1892CP COIL- IGNITION $243.70 IN STOCK
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $13.18 To Order
Photo Part No Description Price (each) Stock
11F1893CP PLUG- SPARK- NGK T20231A HR8 $44.96 IN STOCK
Photo Part No Description Price (each) Stock
13F0789CP BRACKET - NON INTAKE SOUND GENERATOR $35.23 To Order
14F0478CP BRACKET - ENGINE HARNESS $41.86 To Order
Photo Part No Description Price (each) Stock
14F0839CP WIRING HARNESS - ENGINE $1,198.32 To Order
Photo Part No Description Price (each) Stock
14F0720CP HARNESS - VEE LINK - LH - LH $70.46 To Order
Photo Part No Description Price (each) Stock
14F0483CP HARNESS - VEE LINK - RH $95.65 To Order
Photo Part No Description Price (each) Stock
14FA291CP HARNESS - ENGINE LINK - INJECTORS - RH $203.09 To Order
14F0719CP HARNESS - ENGINE LINK - INJECTORS - RH $173.72 To Order
Photo Part No Description Price (each) Stock
14FA292CP HARNESS - ENGINE LINK - INJECTORS - LH $203.09 To Order
14F0823CP HARNESS - ENGINE LINK - INJECTORS - LH Enquire To Order
Photo Part No Description Price (each) Stock
11F2191CP SENSOR - ENGINE - CRANK POSITION $60.42 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
13F0790CP BLANKING CONNECTOR - NON INTAKE SOUND GENERATOR $55.84 To Order

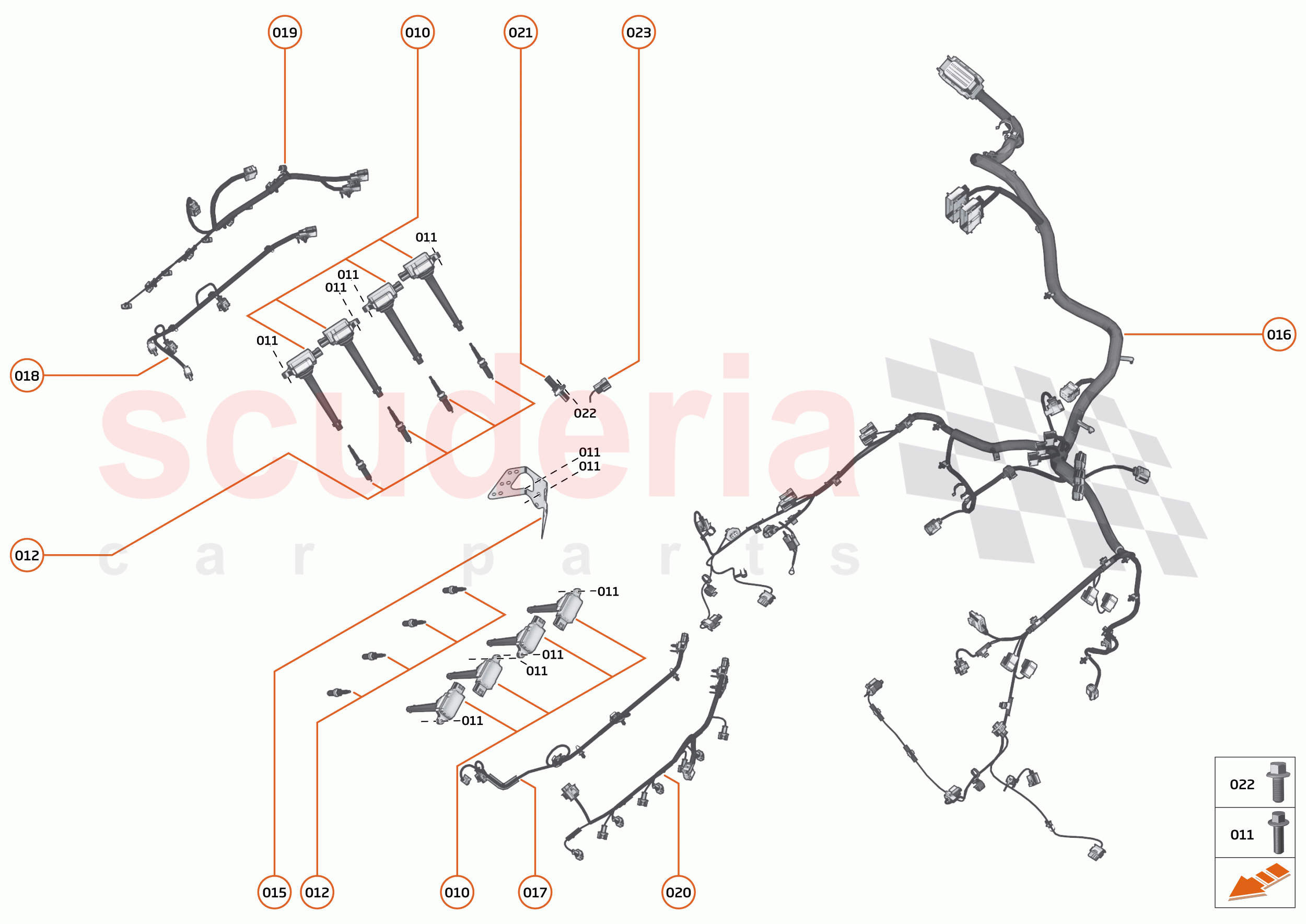

35 - ENGINE - 35.8 - ELECTRICAL SYSTEM of McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1892CP
COIL- IGNITION
IN STOCK 		$243.70 8
IN
011 11F1792CP
BOLT - M6X16 - ENGINE 		$13.18 10
TO
012 11F1893CP
PLUG- SPARK- NGK T20231A HR8
IN STOCK 		$44.96 8
IN
014 11F1783CP
BOLT - M8X30 - HEX 		$14.21 4
TO
015 13F0789CP
BRACKET - NON INTAKE SOUND GENERATOR 		$35.23 1
TO
015 14F0478CP
BRACKET - ENGINE HARNESS 		$41.86 1
TO
016 14F0839CP
WIRING HARNESS - ENGINE 		$1,198.32 1
TO
017 14F0720CP
HARNESS - VEE LINK - LH - LH 		$70.46 1
TO
018 14F0483CP
HARNESS - VEE LINK - RH 		$95.65 1
TO
019 14FA291CP
HARNESS - ENGINE LINK - INJECTORS - RH 		$203.09 1
TO
019 14F0719CP
HARNESS - ENGINE LINK - INJECTORS - RH 		$173.72 1
TO
020 14FA292CP
HARNESS - ENGINE LINK - INJECTORS - LH 		$203.09 1
TO
020 14F0823CP
HARNESS - ENGINE LINK - INJECTORS - LH 		- 1
PE
 Enquire
021 11F2191CP
SENSOR - ENGINE - CRANK POSITION 		$60.42 1
TO
022 11F1793CP
BOLT - M6X20 - HEX 		$11.14 1
TO
023 13F0790CP
BLANKING CONNECTOR - NON INTAKE SOUND GENERATOR 		$55.84 1
TO
