35 - Engine - 35.4 - Exhaust Manifold & Turbochargers

McLaren 765LT Spider

Find Your Part

McLaren 765LT Spider - 35 - ENGINE - 35.4 - EXHAUST MANIFOLD & TURBOCHARGERS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15FA303CP TURBOCHARGER ASSY - ENGINE $5,579.21 To Order
Photo Part No Description Price (each) Stock
14F0509CP V-RING - TURBO SEAL $65.98 To Order
Photo Part No Description Price (each) Stock
11F1905CP NUT - EXHAUST MANIFOLD FLANGED - M8 $11.14 To Order
Photo Part No Description Price (each) Stock
14FA036CP EXHAUST MANIFOLD - ENGINE - RH $1,599.47 To Order
Photo Part No Description Price (each) Stock
13F0599CP GASKET - EXHAUST MANIFOLD - ENGINE $96.45 To Order
Photo Part No Description Price (each) Stock
14FA035CP EXHAUST MANIFOLD - ENGINE - LH $1,451.05 To Order
Photo Part No Description Price (each) Stock
11F2555CP STUD - M8 - EXHAUST MANIFOLD $14.21 To Order
Photo Part No Description Price (each) Stock
14F0743CP HEATSHIELD - EXHAUST MANIFOLD - UPPER - RH $203.09 To Order
Photo Part No Description Price (each) Stock
11F1795CP EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S $12.17 To Order
Photo Part No Description Price (each) Stock
14F0744CP HEATSHIELD - TURBOCHARGER - RH $140.97 To Order
Photo Part No Description Price (each) Stock
14F0508CP HEATSHIELD - EXHAUST MANIFOLD - LOWER - RH $152.32 To Order
Photo Part No Description Price (each) Stock
14F0745CP HEATSHIELD - CAM COVER - RH $203.09 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $13.18 To Order
Photo Part No Description Price (each) Stock
14F0748CP HEATSHIELD - EXHAUST MANIFOLD - UPPER - FRONT - LH $132.00 To Order
Photo Part No Description Price (each) Stock
14F0639CP HEATSHIELD - TURBOCHARGER - LH $140.97 To Order
Photo Part No Description Price (each) Stock
14FA037CP HEATSHIELD - EXHAUST MANIFOLD - LOWER - LH $111.69 To Order
Photo Part No Description Price (each) Stock
14F0750CP HEATSHIELD - CAM COVER - LH $173.17 To Order
Photo Part No Description Price (each) Stock
14FA390CP ASSY - ELECTRONIC ACTUATOR - WASTEGATE Enquire To Order

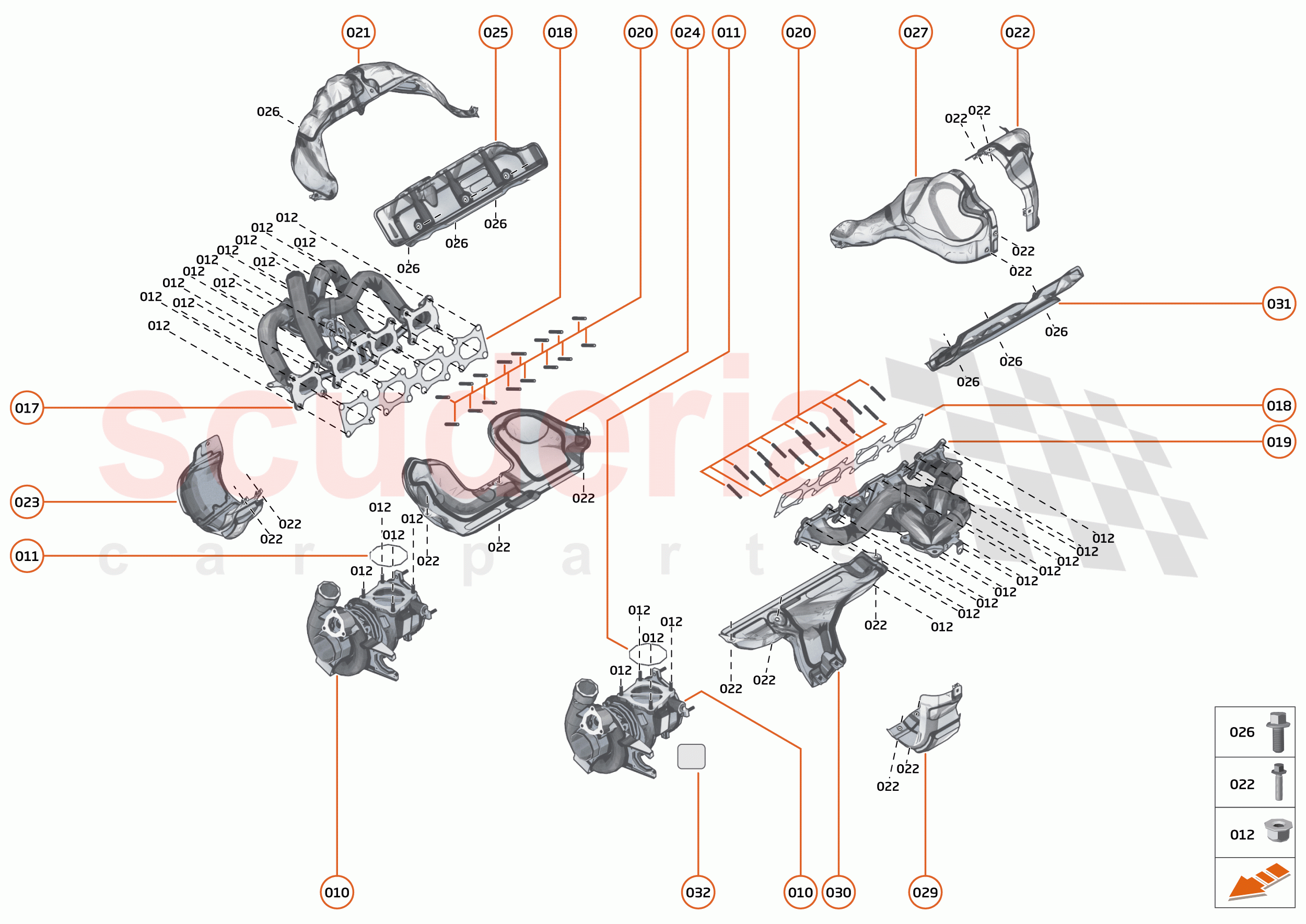

35 - ENGINE - 35.4 - EXHAUST MANIFOLD & TURBOCHARGERS of McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15FA303CP
TURBOCHARGER ASSY - ENGINE 		$5,579.21 2
TO
011 14F0509CP
V-RING - TURBO SEAL 		$65.98 2
TO
012 11F1905CP
NUT - EXHAUST MANIFOLD FLANGED - M8 		$11.14 40
TO
017 14FA036CP
EXHAUST MANIFOLD - ENGINE - RH 		$1,599.47 1
TO
018 13F0599CP
GASKET - EXHAUST MANIFOLD - ENGINE 		$96.45 2
TO
019 14FA035CP
EXHAUST MANIFOLD - ENGINE - LH 		$1,451.05 1
TO
020 11F2555CP
STUD - M8 - EXHAUST MANIFOLD 		$14.21 4
TO
021 14F0743CP
HEATSHIELD - EXHAUST MANIFOLD - UPPER - RH 		$203.09 1
TO
022 11F1795CP
EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S 		$12.17 15
TO
023 14F0744CP
HEATSHIELD - TURBOCHARGER - RH 		$140.97 1
TO
024 14F0508CP
HEATSHIELD - EXHAUST MANIFOLD - LOWER - RH 		$152.32 1
TO
025 14F0745CP
HEATSHIELD - CAM COVER - RH 		$203.09 1
TO
026 11F1792CP
BOLT - M6X16 - ENGINE 		$13.18 6
TO
027 14F0748CP
HEATSHIELD - EXHAUST MANIFOLD - UPPER - FRONT - LH 		$132.00 1
TO
028 14F0747CP
HEATSHIELD - EXHAUST MANIFOLD - UPPER - REAR - LH 		$132.00 1
TO
029 14F0639CP
HEATSHIELD - TURBOCHARGER - LH 		$140.97 1
TO
030 14FA037CP
HEATSHIELD - EXHAUST MANIFOLD - LOWER - LH 		$111.69 1
TO
031 14F0750CP
HEATSHIELD - CAM COVER - LH 		$173.17 1
TO
032 14FA390CP
ASSY - ELECTRONIC ACTUATOR - WASTEGATE 		- 2
PE
 Enquire
