29 - Fuel Tank - 29.1 - Fuel Tank

McLaren 765LT Spider

Find Your Part

McLaren 765LT Spider - 29 - FUEL TANK - 29.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15KA045CP ASSY - FUEL TANK - COMPLETE - ROW $4,790.17 To Order
Photo Part No Description Price (each) Stock
14KA056CP CONTROLLER - FUEL PUMP $342.38 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14K0159CP PIPE - BREATHER - MOULDED - CANISTER Enquire To Order
14KA064CP PIPE - BREATHER - MOULDED - CANISTER $50.76 To Order
Photo Part No Description Price (each) Stock
00RB147 HOSE CLAMP - STEPLESS EAR - 59 DIA Enquire To Order
Photo Part No Description Price (each) Stock
15KA035CP JET PUMP HOSE - FUEL TANK $201.40 To Order
Photo Part No Description Price (each) Stock
14K0087CP PUMP MOUNT - MOULDED $80.54 To Order
Photo Part No Description Price (each) Stock
15MA102CP HARNESS - FUEL CELL - FUEL TANK $201.40 To Order
Photo Part No Description Price (each) Stock
14K0053CP FILTER - CHARCOAL $812.40 To Order
Photo Part No Description Price (each) Stock
14K0123CP BRACKET - CANISTER SUPPORT $18.26 To Order
Photo Part No Description Price (each) Stock
14K0140CP PAD - FUEL TANK - CANISTER $12.08 IN STOCK
Photo Part No Description Price (each) Stock
14K0118CP HOSE - FUEL FEED $111.69 To Order
Photo Part No Description Price (each) Stock
14KA013CP BREATHER HOSE - FUEL TANK - CANISTER $90.62 To Order
Photo Part No Description Price (each) Stock
14K0054CP PIPE - PURGE - FUEL TANK $111.69 To Order
Photo Part No Description Price (each) Stock
15KA004CP FLANGE - FUEL TANK $121.84 To Order
Photo Part No Description Price (each) Stock
12K0229CP SEAL - RETAINING RING - FUEL PUMP $71.07 To Order
Photo Part No Description Price (each) Stock
14KA027CP PAD - FUEL TANK - UPPER - LH $35.23 To Order
Photo Part No Description Price (each) Stock
14KA028CP PAD - FUEL TANK - UPPER - CENTRE $65.44 To Order
Photo Part No Description Price (each) Stock
14KA029CP PAD - FUEL TANK - UPPER - RH $13.06 To Order
Photo Part No Description Price (each) Stock
14KA030CP PAD - FUEL TANK - SEPARATOR $11.06 To Order

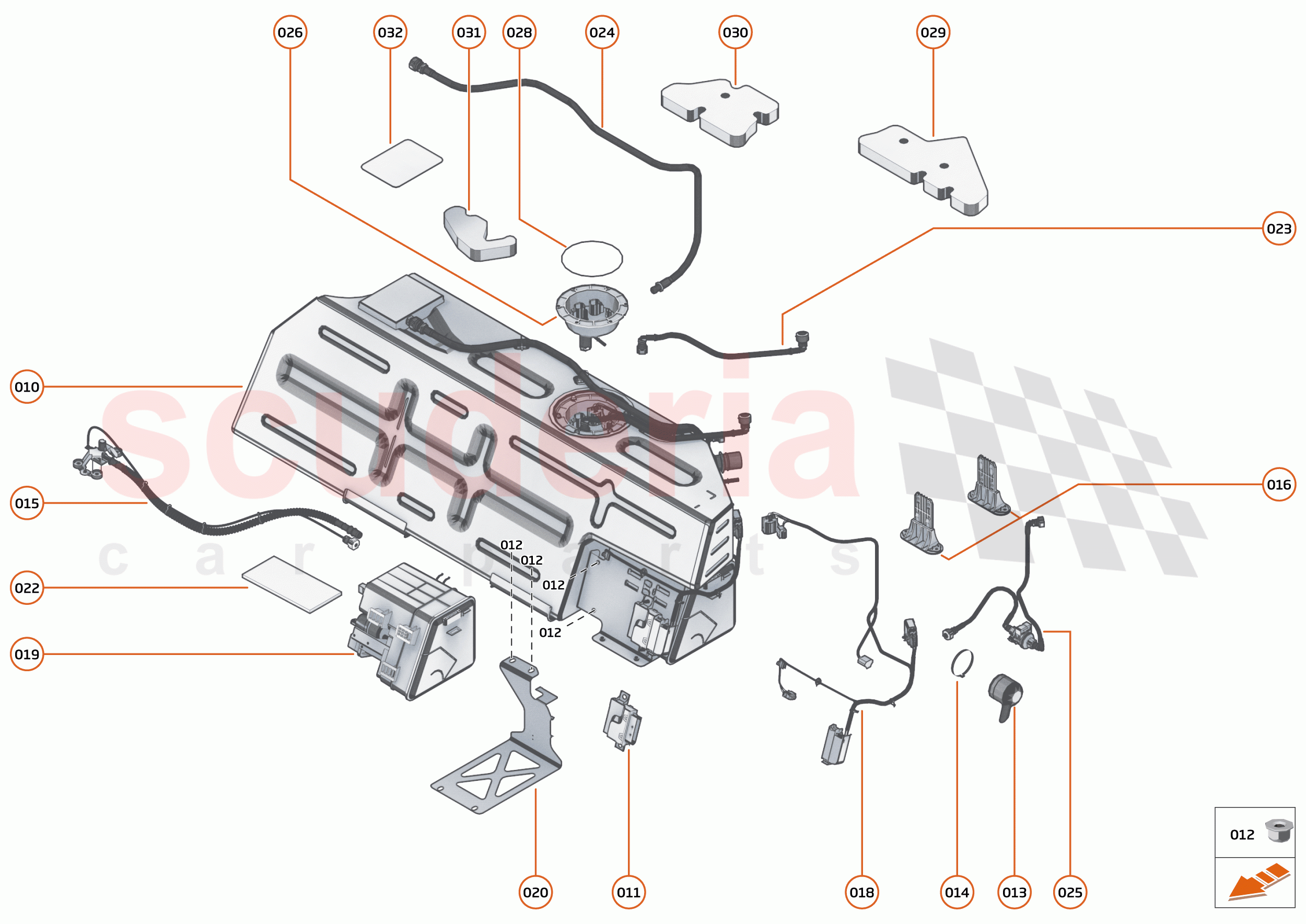

29 - FUEL TANK - 29.1 - FUEL TANK of McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15KA045CP
ASSY - FUEL TANK - COMPLETE - ROW 		$4,790.17 1
TO
011 14KA056CP
CONTROLLER - FUEL PUMP 		$342.38 2
TO
012 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
013 14K0159CP
PIPE - BREATHER - MOULDED - CANISTER 		- 1
PE
 Enquire
013 14KA064CP
PIPE - BREATHER - MOULDED - CANISTER 		$50.76 1
TO
014 00RB147
HOSE CLAMP - STEPLESS EAR - 59 DIA 		- 1
PE
 Enquire
015 15KA035CP
JET PUMP HOSE - FUEL TANK 		$201.40 1
TO
016 14K0087CP
PUMP MOUNT - MOULDED 		$80.54 2
TO
017 15KA002CP
FUEL DELIVERY MODULE - TWIN PUMP - FUEL TANK - OA-ZK-001 		- 1
PE
 Enquire
018 15MA102CP
HARNESS - FUEL CELL - FUEL TANK 		$201.40 1
TO
019 14K0053CP
FILTER - CHARCOAL 		$812.40 1
TO
020 14K0123CP
BRACKET - CANISTER SUPPORT 		$18.26 1
TO
022 14K0140CP
PAD - FUEL TANK - CANISTER
IN STOCK 		$12.08 1
IN
023 14K0118CP
HOSE - FUEL FEED 		$111.69 1
TO
024 14KA013CP
BREATHER HOSE - FUEL TANK - CANISTER 		$90.62 1
TO
025 14K0054CP
PIPE - PURGE - FUEL TANK 		$111.69 1
TO
026 15KA004CP
FLANGE - FUEL TANK 		$121.84 1
TO
028 12K0229CP
SEAL - RETAINING RING - FUEL PUMP 		$71.07 1
TO
029 14KA027CP
PAD - FUEL TANK - UPPER - LH 		$35.23 1
TO
030 14KA028CP
PAD - FUEL TANK - UPPER - CENTRE 		$65.44 1
TO
031 14KA029CP
PAD - FUEL TANK - UPPER - RH 		$13.06 1
TO
032 14KA030CP
PAD - FUEL TANK - SEPARATOR 		$11.06 1
TO
033 14KA120CP
ASSY - TWIN FUEL PUMP 		$1,624.84 1
TO
033 14KA019CP
ASSY - FUEL PUMP
FUEL PUMP; 		$629.70 1
TO
034 14KA086CP
CHARCOAL CANISTER - LEV III 		- 1
PE
 Enquire
035 00RL004
FELT TAPE 		- 1
PE
 Enquire
