5 - Upper Structures - 5.2 - Rear Upper Structure

McLaren 765LT Spider

Find Your Part

McLaren 765LT Spider - 5 - UPPER STRUCTURES - 5.2 - REAR UPPER STRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14A2717SP SERVICE HATCH-SPIDER ASSY $345.26 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA410 BOLT - BUTTON - FLANGE - M6X40 Enquire To Order
Photo Part No Description Price (each) Stock
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA242 STUD M8X1.25X35 Enquire To Order
Photo Part No Description Price (each) Stock
00RC104 Washer - M8x24x2 - Black Enquire To Order
Photo Part No Description Price (each) Stock
14AB518SP ASSY BRKT-D LOOP LH $345.26 To Order
Photo Part No Description Price (each) Stock
14AB519SP ASSY BRKT-D LOOP RH $345.26 To Order
Photo Part No Description Price (each) Stock
14AA323MP ASSY B PLR LH SPYDER BLK PK $5,179.25 To Order
Photo Part No Description Price (each) Stock
00RA606 BOLT - M8X1.25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14A3890CP SMC COMOULDED HEXINSERT M6X9 $22.57 To Order
Photo Part No Description Price (each) Stock
14A2258CP GAS STRUT INSERT Enquire To Order
Photo Part No Description Price (each) Stock
11A7405CP CLIP - HARNESS $20.29 To Order
Photo Part No Description Price (each) Stock
11A3464CP SPACER - BULKHEAD GLASS $8.10 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC051 WASHER - M6X4.0MM Enquire To Order
Photo Part No Description Price (each) Stock
00RC039 WASHER - M6 - STAR LOCK Enquire To Order

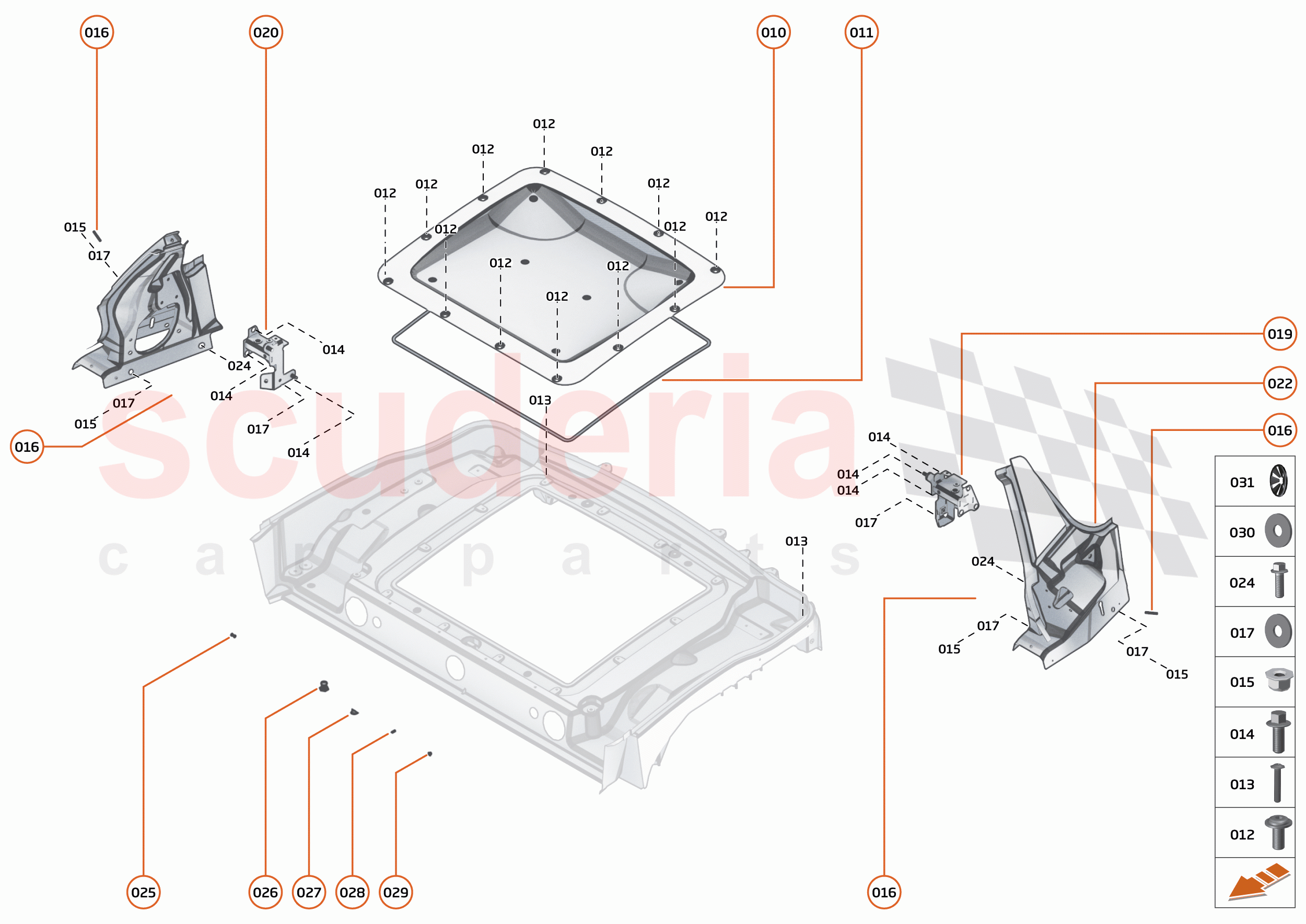

5 - UPPER STRUCTURES - 5.2 - REAR UPPER STRUCTURE of McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14A2717SP
SERVICE HATCH-SPIDER ASSY 		$345.26 1
TO
012 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 12
PE
 Enquire
013 00RA410
BOLT - BUTTON - FLANGE - M6X40 		- 2
PE
 Enquire
014 00RA557
BOLT - HEX HEAD - M8X1.25X25 		- 6
PE
 Enquire
015 00RA056
NUT - M8-8 - LOCK HEX 		- 4
PE
 Enquire
016 00RA242
STUD M8X1.25X35 		- 4
PE
 Enquire
017 00RC104
Washer - M8x24x2 - Black 		- 6
PE
 Enquire
019 14AB518SP
ASSY BRKT-D LOOP LH 		$345.26 1
TO
020 14AB519SP
ASSY BRKT-D LOOP RH 		$345.26 1
TO
022 14AA323MP
ASSY B PLR LH SPYDER BLK PK 		$5,179.25 1
TO
023 14AA324MP
ASSY B PLR RH SPYDER BLK PK 		$5,179.25 1
TO
024 00RA606
BOLT - M8X1.25 - HEX 		- 2
PE
 Enquire
025 14A3890CP
SMC COMOULDED HEXINSERT M6X9 		$22.57 10
TO
026 14A2258CP
GAS STRUT INSERT 		- 6
PE
 Enquire
027 11A7405CP
CLIP - HARNESS 		$20.29 3
TO
028 11A3464CP
SPACER - BULKHEAD GLASS 		$8.10 2
TO
029 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
030 00RC051
WASHER - M6X4.0MM 		- 4
PE
 Enquire
031 00RC039
WASHER - M6 - STAR LOCK 		- 5
PE
 Enquire
