11 - Exterior Ornamentation - 11.8 - Rear Bumper

McLaren 765LT Spider

Find Your Part

McLaren 765LT Spider - 11 - EXTERIOR ORNAMENTATION - 11.8 - REAR BUMPER

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14A4456CP COVER - BEZEL - PARKING SENSOR - REAR BUMPER $30.44 To Order
Photo Part No Description Price (each) Stock
14AA414CP BRKT REAR LAMP MTG LH $111.69 To Order
Photo Part No Description Price (each) Stock
14AA415CP BRKT REAR LAMP MTG RH $111.69 To Order
Photo Part No Description Price (each) Stock
14M0005CP DECOUPLING RING - PDC SENSOR $3.23 To Order
Photo Part No Description Price (each) Stock
14AB395RP ASSY-BUMPER SKIN-REAR Enquire To Order
14AB392RP ASSY BUMPER SKIN REAR-PDC - CAMERA Enquire To Order
14AA057RP ASSY BUMPER SKIN REAR-PDC - CAMERA Enquire To Order
Photo Part No Description Price (each) Stock
14AA932RP REAR BUMPER CAMERA BEZEL COVER $71.07 To Order
Photo Part No Description Price (each) Stock
14AB650RP RR BMPR NUMB PLATE LAMP COVER $243.70 To Order
Photo Part No Description Price (each) Stock
16AC880CP FOAM-NITTO 1010 310X5X5 $3.43 To Order
14AB825RP FOAM BUMPER REAR FED Enquire To Order
Photo Part No Description Price (each) Stock
14MA132RP PDC SENSOR-PAINTED PRIMED $121.84 To Order
Photo Part No Description Price (each) Stock
14AA423RP MLDG STONE PROTECTION RR LH $111.69 To Order
Photo Part No Description Price (each) Stock
14AA424RP MLDG STONE PROTECTION RR RH $111.69 To Order
Photo Part No Description Price (each) Stock
14AA833RP RR BPR REINF BRACKET $119.94 To Order
Photo Part No Description Price (each) Stock
14AB886RP REAR BUMPER HEATSHIELD BRACKET $223.40 To Order
Photo Part No Description Price (each) Stock
14AB832RP REAR BUMPER REFLECTOR BRACKET - LH $60.90 To Order
Photo Part No Description Price (each) Stock
14AB833RP REAR BUMPER REFLECTOR BRACKET - RH $60.90 To Order
Photo Part No Description Price (each) Stock
14AB329RP ASSY REAR BUMPER SIDE BLADE LH Enquire To Order
Photo Part No Description Price (each) Stock
14AB334RP ASSY REAR BUMPER SIDE BLADE RH Enquire To Order
Photo Part No Description Price (each) Stock
14AB243RP ECU COVER PROTECTION TAPE R LH $13.18 To Order
Photo Part No Description Price (each) Stock
14AB244RP ECU COVER PROTECTION TAPE R RH $12.03 To Order
Photo Part No Description Price (each) Stock
14AB234RP REAR AERO BLADE PROTECTION - TAPE R LH $9.52 To Order
Photo Part No Description Price (each) Stock
14AB235RP REAR AERO BLADE PROTECTION - TAPE R RH $9.52 To Order
Photo Part No Description Price (each) Stock
14AB453RP BMPR RR LWR BLADE-LH $55.84 To Order
Photo Part No Description Price (each) Stock
14AB455RP BMPR RR LWR BLADE-RH $55.84 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA565 BOLT - HEX HEAD - FLANGE - M6X12 Enquire To Order
Photo Part No Description Price (each) Stock
11A7405CP CLIP - HARNESS $20.29 To Order
Photo Part No Description Price (each) Stock
00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RB213 CLIP - U NUT - M6 Enquire To Order
00RB194 CLIP - U NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC056 Washer - M5x12.5x1 Form C Enquire To Order
Photo Part No Description Price (each) Stock
00RB006 SPIER CLIP - 4.2X7 2.5X5.0 8MM Enquire To Order
Photo Part No Description Price (each) Stock
14AB938RP INSULATION -REAR CAMERA AND LAMPS $96.45 To Order
14AB895RP HEATSHIELD-REAR CAMERA AND LAM - LAMPS $81.23 To Order
Photo Part No Description Price (each) Stock
14AA486RP RR BUMPER OUTER MACH LH Enquire To Order
Photo Part No Description Price (each) Stock
14AB346RP RR BUMPER OUTER MACH RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA363 SCREW - TORX - 4X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA263 SCREW - M6X20 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RM023 RIVNUT - M6 - 0.7-3.3 Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA249 Nut - M5 - Rawl Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order

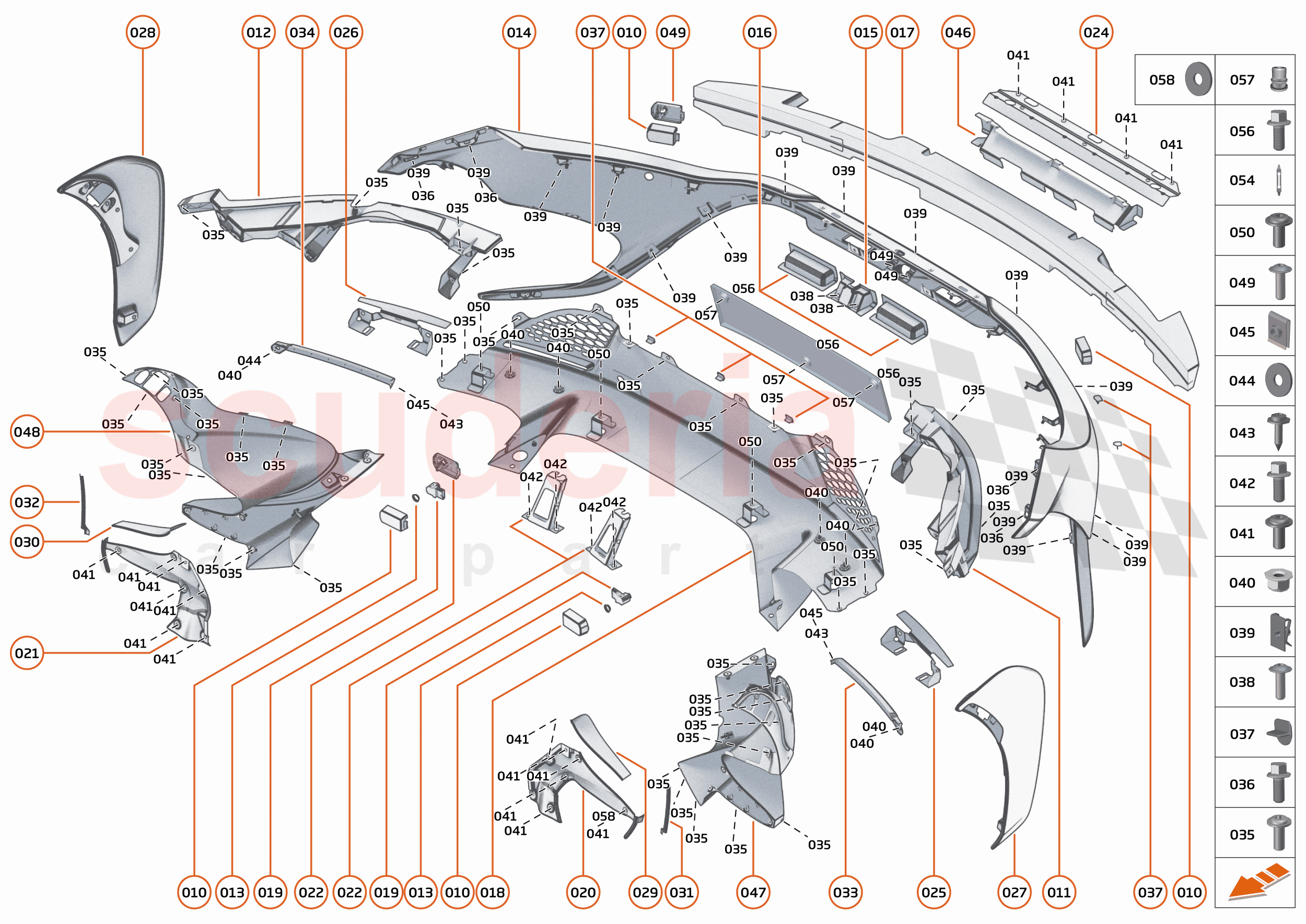

11 - EXTERIOR ORNAMENTATION - 11.8 - REAR BUMPER of McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14A4456CP
COVER - BEZEL - PARKING SENSOR - REAR BUMPER 		$30.44 2
TO
011 14AA414CP
BRKT REAR LAMP MTG LH 		$111.69 1
TO
012 14AA415CP
BRKT REAR LAMP MTG RH 		$111.69 1
TO
013 14M0005CP
DECOUPLING RING - PDC SENSOR 		$3.23 2
TO
014 14AB395RP
ASSY-BUMPER SKIN-REAR 		- 1
PE
 Enquire
014 14AB392RP
ASSY BUMPER SKIN REAR-PDC - CAMERA 		- 1
PE
 Enquire
014 14AA057RP
ASSY BUMPER SKIN REAR-PDC - CAMERA 		- 1
PE
 Enquire
015 14AA932RP
REAR BUMPER CAMERA BEZEL COVER 		$71.07 1
TO
016 14AB650RP
RR BMPR NUMB PLATE LAMP COVER 		$243.70 2
TO
017 16AC880CP
FOAM-NITTO 1010 310X5X5 		$3.43 1
TO
017 14AB825RP
FOAM BUMPER REAR FED 		- 1
PE
 Enquire
018 14AB830RP
ASSY RR BUMPER LOWER PDC 		- 1
PE
 Enquire
018 14AB826RP
ASSY REAR BUMPER LOWER 		- 1
PE
 Enquire
019 14MA132RP
PDC SENSOR-PAINTED PRIMED 		$121.84 1
TO
020 14AA423RP
MLDG STONE PROTECTION RR LH 		$111.69 1
TO
021 14AA424RP
MLDG STONE PROTECTION RR RH 		$111.69 1
TO
022 14AA833RP
RR BPR REINF BRACKET 		$119.94 2
TO
024 14AB886RP
REAR BUMPER HEATSHIELD BRACKET 		$223.40 1
TO
025 14AB832RP
REAR BUMPER REFLECTOR BRACKET - LH 		$60.90 1
TO
026 14AB833RP
REAR BUMPER REFLECTOR BRACKET - RH 		$60.90 1
TO
027 14AB329RP
ASSY REAR BUMPER SIDE BLADE LH 		- 1
PE
 Enquire
028 14AB334RP
ASSY REAR BUMPER SIDE BLADE RH 		- 1
PE
 Enquire
029 14AB243RP
ECU COVER PROTECTION TAPE R LH 		$13.18 1
TO
030 14AB244RP
ECU COVER PROTECTION TAPE R RH 		$12.03 1
TO
031 14AB234RP
REAR AERO BLADE PROTECTION - TAPE R LH 		$9.52 1
TO
032 14AB235RP
REAR AERO BLADE PROTECTION - TAPE R RH 		$9.52 1
TO
033 14AB453RP
BMPR RR LWR BLADE-LH 		$55.84 1
TO
034 14AB455RP
BMPR RR LWR BLADE-RH 		$55.84 1
TO

00RA468

SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK

 -
036 00RA565
BOLT - HEX HEAD - FLANGE - M6X12 		- 4
PE
 Enquire
037 11A7405CP
CLIP - HARNESS 		$20.29 1
TO
038 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX 		- 3
PE
 Enquire
039 00RB213
CLIP - U NUT - M6 		- 5
PE
 Enquire
039 00RB194
CLIP - U NUT - M6 		- 14
PE
 Enquire
040 00RA582
NUT - M5 - HEX 		- 4
PE
 Enquire
041 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 7
PE
 Enquire
042 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4
PE
 Enquire
043 00RA112
TORX SCREW-WASHER 4.2X16 		- 1
PE
 Enquire
044 00RC056
Washer - M5x12.5x1 Form C 		- 2
PE
 Enquire
045 00RB006
SPIER CLIP - 4.2X7 2.5X5.0 8MM 		- 1
PE
 Enquire
046 14AB938RP
INSULATION -REAR CAMERA AND LAMPS 		$96.45 1
TO
046 14AB895RP
HEATSHIELD-REAR CAMERA AND LAM - LAMPS 		$81.23 1
TO
047 14AA486RP
RR BUMPER OUTER MACH LH 		- 1
PE
 Enquire
048 14AB346RP
RR BUMPER OUTER MACH RH 		- 1
PE
 Enquire
049 00RA363
SCREW - TORX - 4X12 		- 2
PE
 Enquire
050 00RA263
SCREW - M6X20 - BUTTON 		- 2
PE
 Enquire
051 00RB176
CLIP - STEM 		- 6
PE
 Enquire
052 00RC063
Washer - M5x20x1 		- 4
PE
 Enquire
053 11A4758CP
BLACK DECAL BODYSIDE REAR LOWE 		$16.09 1
TO
054 00RM023
RIVNUT - M6 - 0.7-3.3 		- 4
PE
 Enquire
055 14AC607CP
PLINTH - LICENCE PLATE - REAR - EU 		$75.52 1
TO
056 00RA064
BOLT - M5X12 - HEX 		- 3
PE
 Enquire
057 00RA249
Nut - M5 - Rawl 		- 3
PE
 Enquire
058 00RC064
WASHER - M6X18X1.6 - BLACK 		- 1
PE
 Enquire
