34 - Engine - 34.3 - Inlet Manifold

McLaren 765LT

Find Your Part

McLaren 765LT - 34 - ENGINE - 34.3 - INLET MANIFOLD

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14FA042RP ASSY - INLET MANIFOLD $2,701.33 To Order
Photo Part No Description Price (each) Stock
14F0360CP GASKET - INLET MANIFOLD - ENGINE $55.84 To Order
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F1740CP THROTTLE BODY - ENGINE $819.72 To Order
Photo Part No Description Price (each) Stock
11F2289CP SEAL - THROTTLE BODY - ENGINE $40.60 To Order
Photo Part No Description Price (each) Stock
11F1797CP SCREW - CAP HEAD - M6X45 $8.91 To Order
Photo Part No Description Price (each) Stock
14F0322CP SENSOR - TMAP - INLET MANIFOLD - ENGINE $70.46 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
11F2290CP SEAL - INTAKE SOUND GENERATOR - THROTTLE BODY - ENGINE $30.44 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $13.18 To Order
Photo Part No Description Price (each) Stock
11F1799CP BOLT - M6X60 - HEX $3.98 To Order
Photo Part No Description Price (each) Stock
14F0766CP ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD $79.32 To Order
Photo Part No Description Price (each) Stock
14F0666CP BLANK - THROTTLE - INTAKE SOUND GENERATOR $30.44 To Order
Photo Part No Description Price (each) Stock
14FA078RP BADGE - PLENUM RH $136.39 To Order
14FA077RP BADGE - PLENUM LH $136.39 To Order

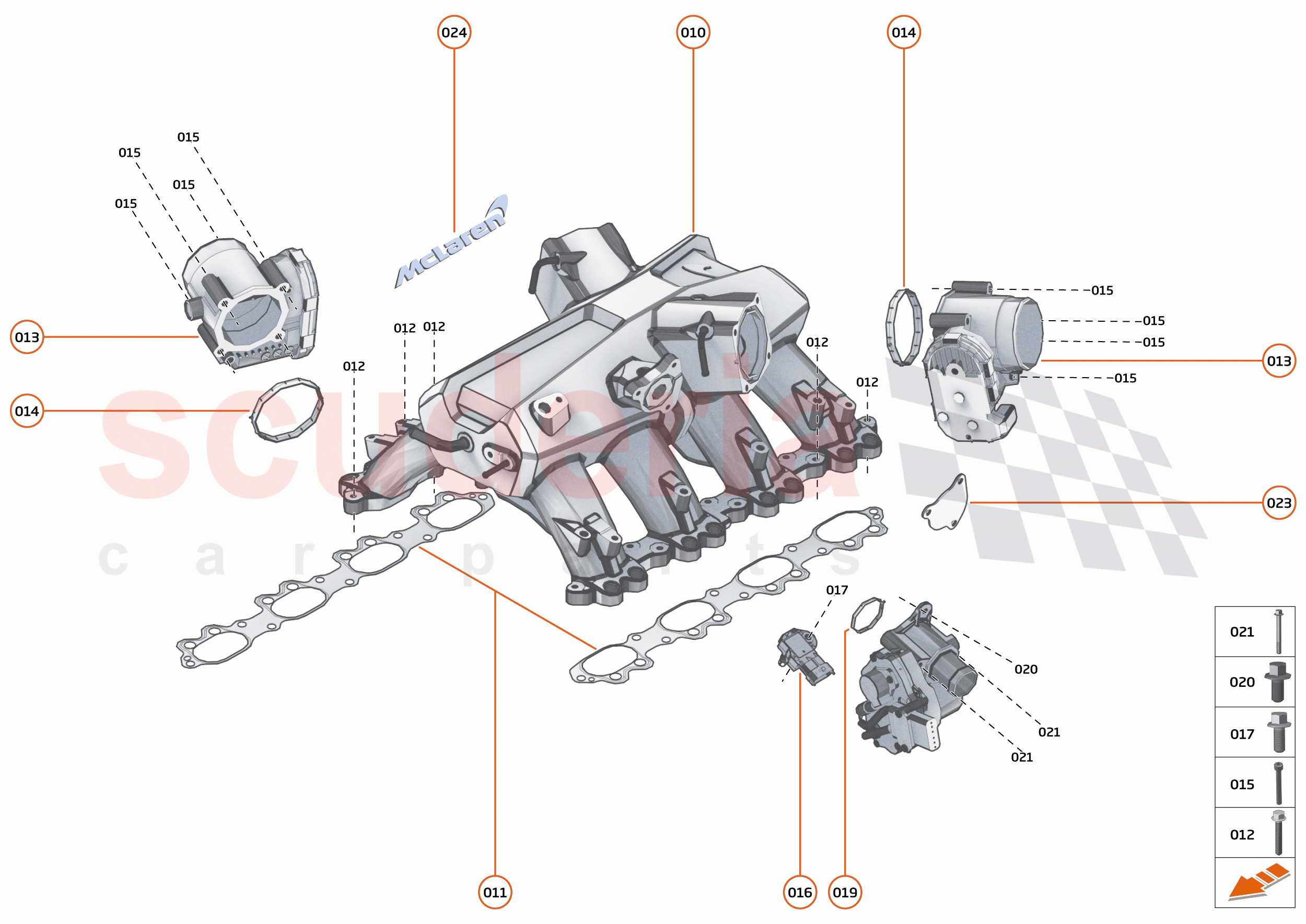

34 - ENGINE - 34.3 - INLET MANIFOLD of McLaren McLaren 765LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14FA042RP
ASSY - INLET MANIFOLD 		$2,701.33 1
TO
011 14F0360CP
GASKET - INLET MANIFOLD - ENGINE 		$55.84 2
TO
012 11F1776CP
BOLT - M6X30 - HEX 		$10.14 2
TO
013 11F1740CP
THROTTLE BODY - ENGINE 		$819.72 2
TO
014 11F2289CP
SEAL - THROTTLE BODY - ENGINE 		$40.60 2
TO
015 11F1797CP
SCREW - CAP HEAD - M6X45 		$8.91 8
TO
016 14F0322CP
SENSOR - TMAP - INLET MANIFOLD - ENGINE 		$70.46 1
TO
017 11F1793CP
BOLT - M6X20 - HEX 		$11.14 8
TO
019 11F2290CP
SEAL - INTAKE SOUND GENERATOR - THROTTLE BODY - ENGINE 		$30.44 1
TO
020 11F1792CP
BOLT - M6X16 - ENGINE 		$13.18 4
TO
021 11F1799CP
BOLT - M6X60 - HEX 		$3.98 2
TO
022 14F0766CP
ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD 		$79.32 1
TO
023 14F0666CP
BLANK - THROTTLE - INTAKE SOUND GENERATOR 		$30.44 1
TO
024 14FA078RP
BADGE - PLENUM RH 		$136.39 1
TO
024 14FA077RP
BADGE - PLENUM LH 		$136.39 1
TO
