25 - Brakes - Systems - 25.3 - Vaccum System

McLaren 765LT

Find Your Part

McLaren 765LT - 25 - BRAKES - SYSTEMS - 25.3 - VACCUM SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14CA020RP HOSE-VACUUM-PUMP $259.90 To Order
14CA008CP BRAKE BOOSTER - VACUUM PIPE TO ENGINE - LHD Enquire To Order
14CA010CP BRAKE BOOSTER - VACUUM PIPE TO ENGINE - RHD $304.64 To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB093 OETIKER CLIP - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB110 OETIKER CLIP - 19.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
15CA134CP EVAC PUMP $584.08 To Order
Photo Part No Description Price (each) Stock
00RB141 SWIVEL CLIP - FEMALE CSC9 Enquire To Order
Photo Part No Description Price (each) Stock
00RB074 Swivel Clip - 11-13mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
00RB078 SWIVEL CLIP - 8-9MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RA631 BLT-HX-FL-PPT-M6X1X45-8.8-72 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14CA019RP BRKT-EVAC PUMP $203.09 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB059 CLIP CONNECTOR - TRW Enquire To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order

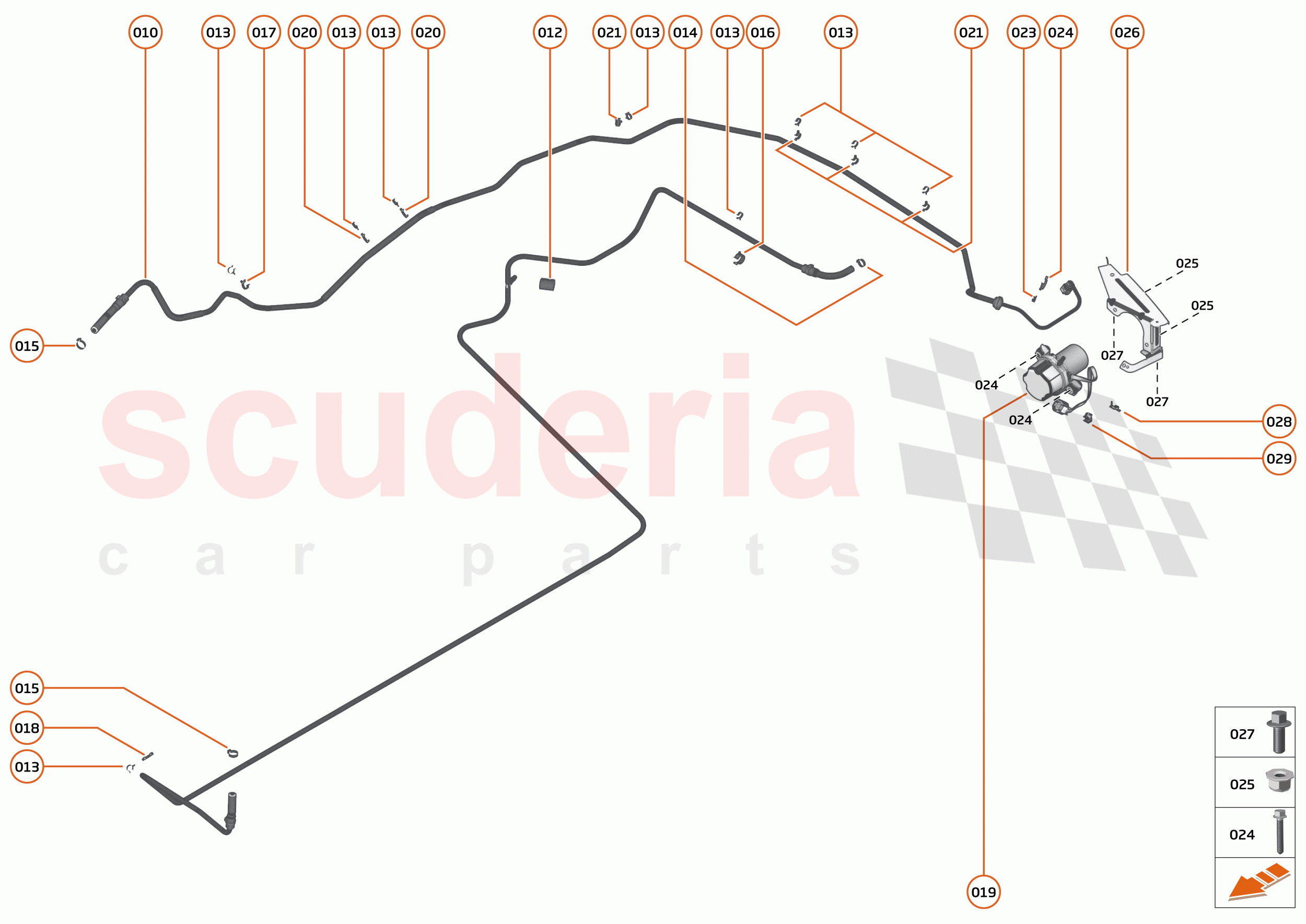

25 - BRAKES - SYSTEMS - 25.3 - VACCUM SYSTEM of McLaren McLaren 765LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14CA020RP
HOSE-VACUUM-PUMP 		$259.90 1
TO
010 14CA008CP
BRAKE BOOSTER - VACUUM PIPE TO ENGINE - LHD 		- 1
PE
 Enquire
010 14CA010CP
BRAKE BOOSTER - VACUUM PIPE TO ENGINE - RHD 		$304.64 1
TO
011 22CA113GP
PIPE BRAKE VAC TMC ENG - MANIFOLD RHD-IRON 		$812.40 1
TO
011 22CA114GP
PIPE BRAKE VAC TMC ENG - MANIFOLD LHD-IRON 		$873.34 1
TO
012 00RA366
PIPE PROTECTOR - 13MM ID 		- 1
PE
 Enquire
013 00RB018
CLIP - 11-13MM - MALE 		- 9
PE
 Enquire
014 00RB093
OETIKER CLIP - 16.6 		- 1
PE
 Enquire
015 00RB110
OETIKER CLIP - 19.2 		- 2
PE
 Enquire
016 00RB120
CLIP - 90 DEGREE - FEMALE - 20-22 		- 1
PE
 Enquire
017 00RB032
CLIP - 13-14MM - FEMALE 		- 1
PE
 Enquire
018 00RB007
CLIP - 18-20MM - FEMALE 		- 1
PE
 Enquire
019 15CA134CP
EVAC PUMP
EVAC PUMP; 		$584.08 1
TO
020 00RB141
SWIVEL CLIP - FEMALE CSC9 		- 3
PE
 Enquire
021 00RB074
Swivel Clip - 11-13mm - Female 		- 4
PE
 Enquire
022 00RG020
Swivel Clip - 20-24.5mm - Female 		- 1
PE
 Enquire
023 00RB078
SWIVEL CLIP - 8-9MM - MALE 		- 1
PE
 Enquire
024 00RA631
BLT-HX-FL-PPT-M6X1X45-8.8-72 		- 2
PE
 Enquire
025 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
026 14CA019RP
BRKT-EVAC PUMP 		$203.09 1
TO
027 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2
PE
 Enquire
028 00RB059
CLIP CONNECTOR - TRW 		- 1
PE
 Enquire
029 00RG025
CABLE TIE - PARALLEL - EDGE PANEL 		- 1
PE
 Enquire
