19 - Suspension - Rear - 19.4 - Road Springs Rear

McLaren 765LT

Find Your Part

McLaren 765LT - 19 - SUSPENSION - REAR - 19.4 - ROAD SPRINGS REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14BA077RP P14R REAR Z BAR $1,699.43 To Order
Photo Part No Description Price (each) Stock
14B0563CP PLATE - Z-BAR - REAR $25.37 To Order
Photo Part No Description Price (each) Stock
14BA083RP Z BAR BUSH RR LH $121.84 To Order
Photo Part No Description Price (each) Stock
14BA082RP Z BAR BUSH RR RH $121.84 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0013CP Z BAR DROP LINK LH $96.45 To Order
Photo Part No Description Price (each) Stock
00RA053 Nut - M10 - Lock Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
14B0200CP Z BAR DROP LINK RH $96.45 To Order

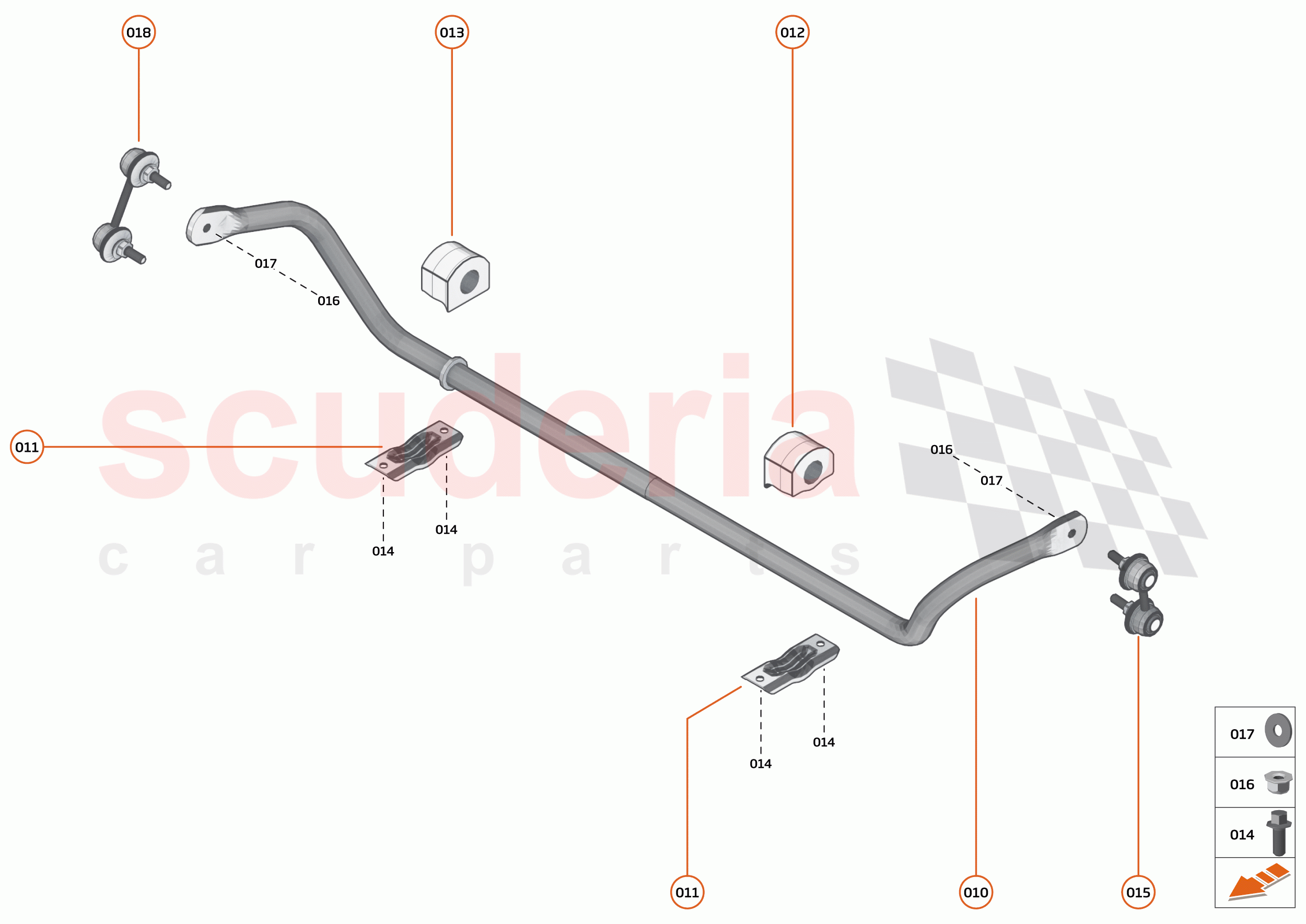

19 - SUSPENSION - REAR - 19.4 - ROAD SPRINGS REAR of McLaren McLaren 765LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14BA077RP
P14R REAR Z BAR 		$1,699.43 1
TO
011 14B0563CP
PLATE - Z-BAR - REAR 		$25.37 2
TO
012 14BA083RP
Z BAR BUSH RR LH 		$121.84 1
TO
013 14BA082RP
Z BAR BUSH RR RH 		$121.84 1
TO
014 00RA002
BOLT - M8X20 - HEX 		- 4
PE
 Enquire
015 14B0013CP
Z BAR DROP LINK LH 		$96.45 1
TO
016 00RA053
Nut - M10 - Lock Hex 		- 2
PE
 Enquire
017 00RC065
WASHER - M10X21X2.0 		- 2
PE
 Enquire
018 14B0200CP
Z BAR DROP LINK RH 		$96.45 1
TO
