McLaren 750S Coupe - 28 - FUEL TANK - 28.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

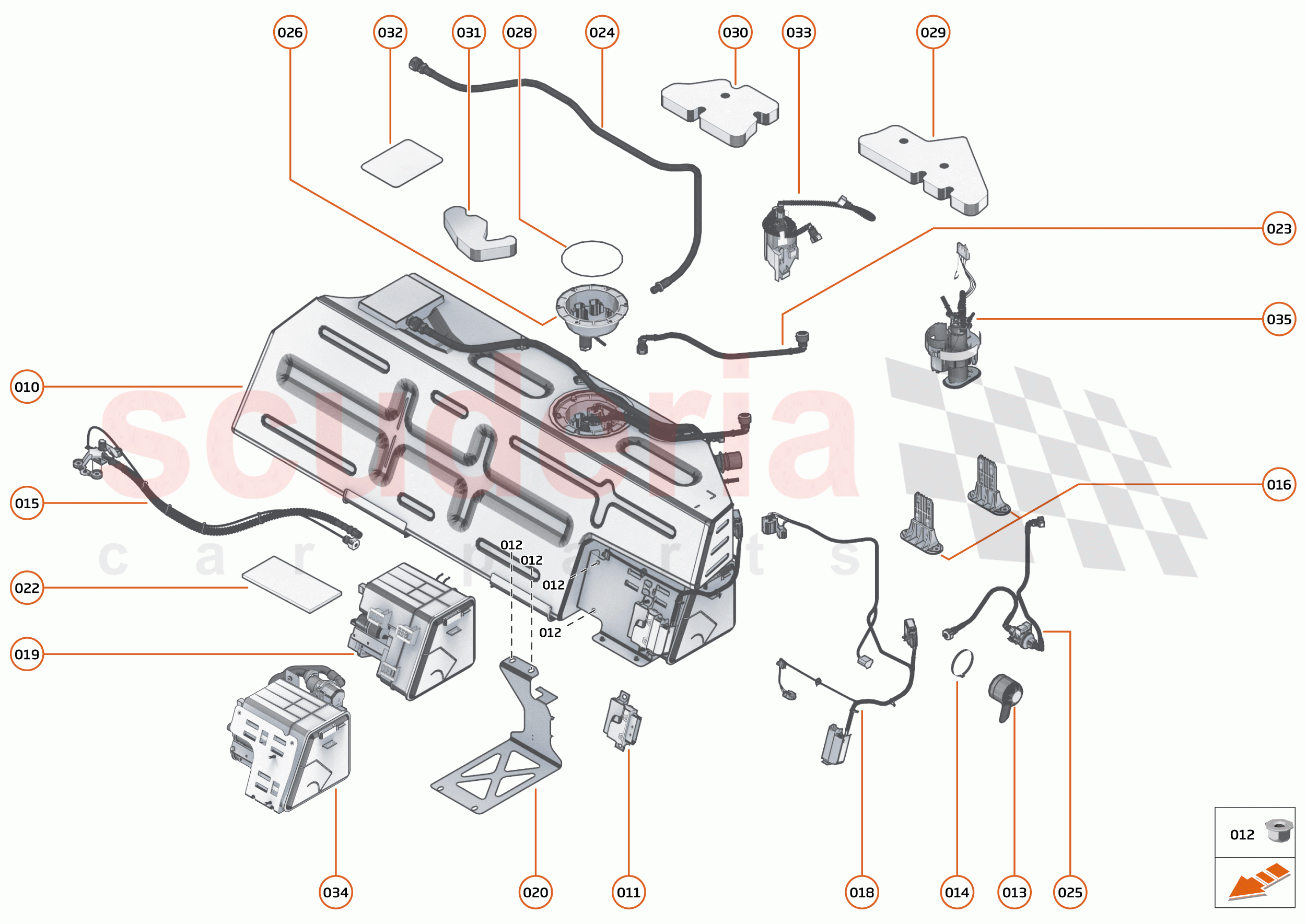

28 - FUEL TANK - 28.1 - FUEL TANK of McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA087
SCREW - M5X10 - HEX 		- 2
PE
 Enquire
000 00RA129
SCREW - NR8X16 		- 3
PE
 Enquire
000 00RB138
HOSE CLAMP - 23.5-706R 		- 2
PE
 Enquire
000 00RL004
FELT TAPE 		- 1
PE
 Enquire
010 14KA007RP
ASSY - FUEL TANK - COMPLETE FEDERAL 		- 1
PE
 Enquire
010 15KA052CP
ASSY - FUEL TANK - COMPLETE 		$5,136.09 1
TO
010 14KA115CP
ASSY - FUEL TANK - COMPLETE - CHINA 		- 1
PE
 Enquire
011 14KA056CP
CONTROLLER - FUEL PUMP 		$342.38 1
TO
012 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
013 14KA064CP
PIPE - BREATHER - MOULDED - CANISTER 		$50.76 1
TO
014 00RB147
HOSE CLAMP - STEPLESS EAR - 59 DIA 		- 1
PE
 Enquire
015 15KA035CP
JET PUMP HOSE - FUEL TANK 		$201.40 1
TO
016 14K0087CP
PUMP MOUNT - MOULDED 		$80.54 2
TO
018 15MA102CP
HARNESS - FUEL CELL - FUEL TANK 		$201.40 1
TO
019 14K0053CP
FILTER - CHARCOAL 		$812.40 1
TO
020 14K0123CP
BRACKET - CANISTER SUPPORT 		$18.26 1
TO
022 14K0140CP
PAD - FUEL TANK - CANISTER 		$12.08 1
TO
023 14K0118CP
HOSE - FUEL FEED 		$111.69 1
TO
024 14KA092CP
HOSE BREATHER - TANK TO CANISTER 		- 1
PE
 Enquire
024 14KA013CP
BREATHER HOSE - FUEL TANK - CANISTER 		$90.62 1
TO
025 14KA088CP
ASSY PIPE PURGE TANK 		- 1
PE
 Enquire
025 14K0054CP
PIPE - PURGE - FUEL TANK 		$111.69 1
TO
026 15KA004CP
FLANGE - FUEL TANK 		$121.84 1
TO
026 14K0079CP
FLANGE - FUEL TANK 		$86.29 1
TO
028 12K0258CP
SEAL - RETAINING RING - FUEL PUMP 		$71.07 1
TO
029 14KA027CP
PAD - FUEL TANK - UPPER - LH 		$35.23 1
TO
030 14KA028CP
PAD - FUEL TANK - UPPER - CENTRE 		$65.44 1
TO
031 14KA029CP
PAD - FUEL TANK - UPPER - RH 		$13.06 1
TO
032 14KA030CP
PAD - FUEL TANK - SEPARATOR 		$11.06 1
TO
033 12K0196CP
AIR FILTER - DIAGNOSIS MODULE TANK LEAKAGE 		$76.15 1
TO
034 14KA086CP
CHARCOAL CANISTER - LEV III 		- 1
PE
 Enquire
035 14KA120CP
ASSY - TWIN FUEL PUMP 		$1,624.84 1
TO
035 14KA113CP
ASSY - FUEL PUMP 		$684.79 1
TO
