43 - Exhaust - 43.2 - Muffler & Tail Pipes

McLaren 750S Spider

Find Your Part

McLaren 750S Spider - 43 - EXHAUST - 43.2 - MUFFLER & TAIL PIPES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11H0065CP ISOLATOR - MUFFLER MOUNTING $111.69 To Order
Photo Part No Description Price (each) Stock
14H0091CP CLAMP RING - 76MM $111.69 To Order
Photo Part No Description Price (each) Stock
28HA015CP ASSY-EXHAUST MUFFLER-S-VALVE Enquire To Order
28HA019CP ASSY-EXHAUST MUFFLER-S-NO VALVE Enquire To Order
Photo Part No Description Price (each) Stock
28HA028CP MUFFLER ISOLATOR BRKT-FRAME-RR $49.75 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA577 NUT-HX-FL-M6X1-8-ZFB Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
14HA038CP BRACKET LH RR-MUFFLER $111.69 To Order
Photo Part No Description Price (each) Stock
14HA039CP BRACKET RH RR-MUFFLER $111.69 To Order
Photo Part No Description Price (each) Stock
16HA203CP ISOLATOR - WEGU - MUFFLER - VERTICAL $132.00 To Order
Photo Part No Description Price (each) Stock
26HA113SP MUFFLER ISOLATOR BRKT - HANGER - RR $55.84 To Order
Photo Part No Description Price (each) Stock
28HA025CP VALVE - EXHAUST 80MM Enquire To Order

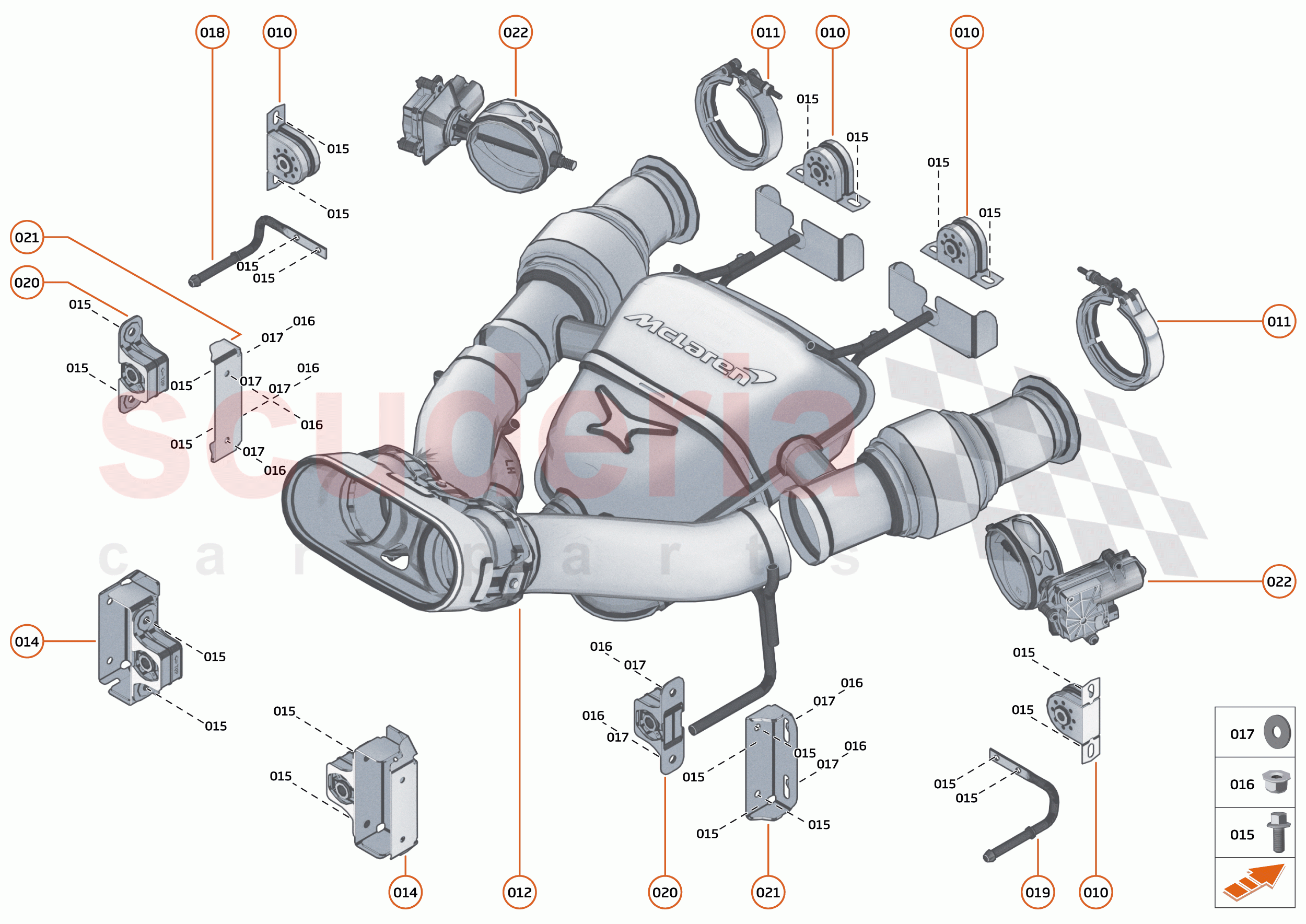

43 - EXHAUST - 43.2 - MUFFLER & TAIL PIPES of McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA565
BOLT - HEX HEAD - FLANGE - M6X12 		- 3
PE
 Enquire
010 11H0065CP
ISOLATOR - MUFFLER MOUNTING 		$111.69 2
TO
011 14H0091CP
CLAMP RING - 76MM 		$111.69 2
TO
012 28HA015CP
ASSY-EXHAUST MUFFLER-S-VALVE 		- 1
PE
 Enquire
012 28HA019CP
ASSY-EXHAUST MUFFLER-S-NO VALVE 		- 1
PE
 Enquire
013 26EA028SP
ISOLATOR INSULATION BRACKET 		$97.73 2
TO
014 28HA028CP
MUFFLER ISOLATOR BRKT-FRAME-RR 		$49.75 2
TO
015 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4
PE
 Enquire
016 00RA577
NUT-HX-FL-M6X1-8-ZFB 		- 8
PE
 Enquire
017 00RC028
WASHER - M6 FORM C 		- 8
PE
 Enquire
018 14HA038CP
BRACKET LH RR-MUFFLER 		$111.69 1
TO
019 14HA039CP
BRACKET RH RR-MUFFLER 		$111.69 1
TO
020 16HA203CP
ISOLATOR - WEGU - MUFFLER - VERTICAL 		$132.00 2
TO
021 26HA113SP
MUFFLER ISOLATOR BRKT - HANGER - RR 		$55.84 2
TO
022 28HA025CP
VALVE - EXHAUST 80MM 		- 2
PE
 Enquire
