McLaren 750S Spider - 46 - ELECTRICAL HARDWARE - 46.2 - BRACKETS, GROMMETS & FIXINGS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
28MA249CP RR HARNESS CARRIER BRACKET $84.44 To Order
Photo Part No Description Price (each) Stock
14M1087CP BRACKET - CROSS CAR HARNESS $45.68 To Order
Photo Part No Description Price (each) Stock
14M0393CP BRKT-INFOTAINMENT ECU-BASE AUDIO $72.41 To Order
14MA154RP BRKT-INFOTAINMENT ECU-HIGH AUDIO $117.28 To Order
28MA244CP BRKT-INFOTAINMENT ECU $122.83 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14M1080CP BRACKET - WIRING HARNESS - FRONT $85.58 To Order
Photo Part No Description Price (each) Stock
14M1205CP BRKT - DEVELOPMENT INTERFACE $33.05 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA521 SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order

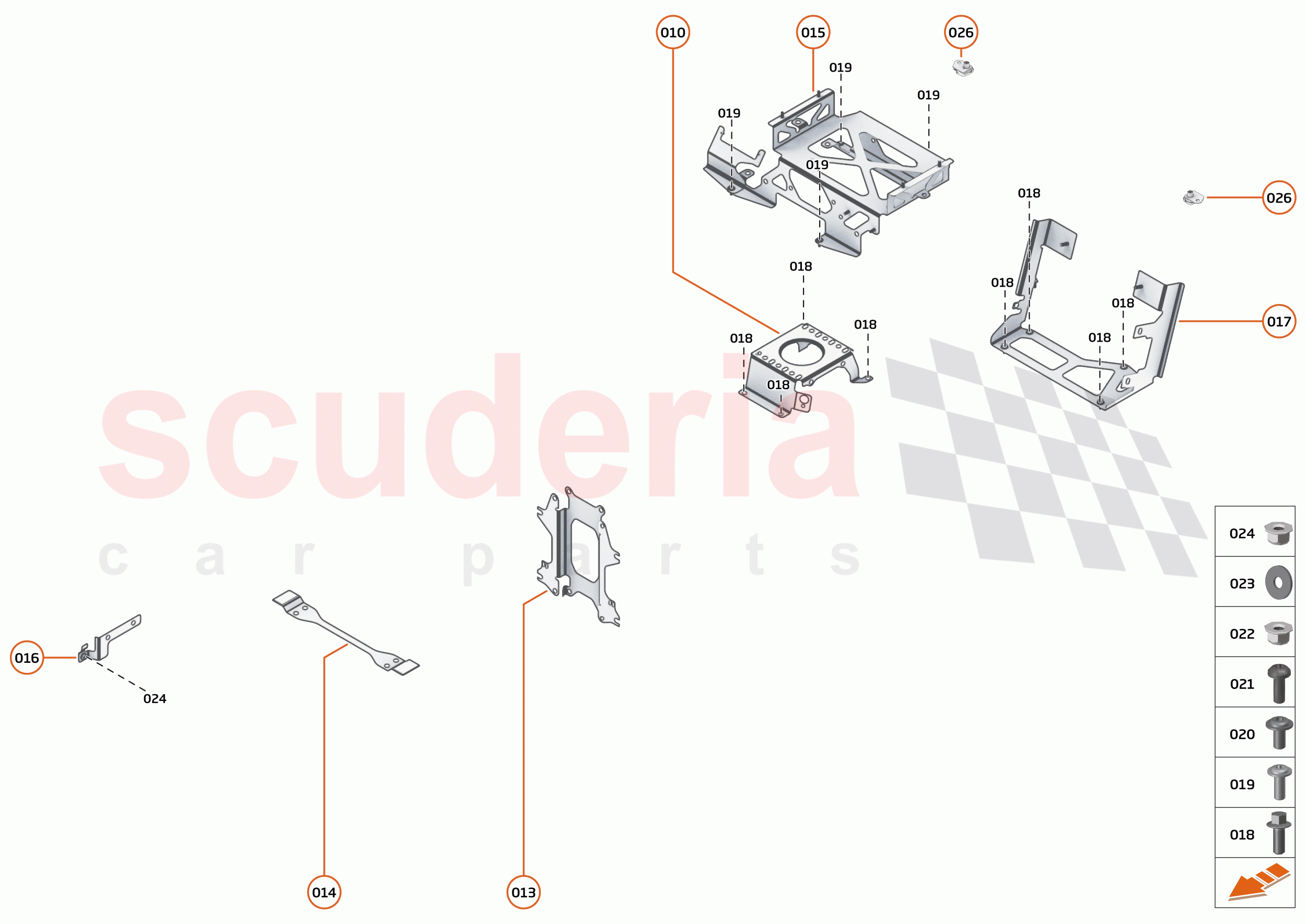

46 - ELECTRICAL HARDWARE - 46.2 - BRACKETS, GROMMETS & FIXINGS of McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RL004
FELT TAPE
Color codes: TAPE-FELT; 		- 1
PE
 Enquire
010 28MA249CP
RR HARNESS CARRIER BRACKET 		$84.44 1
TO
014 14M1087CP
BRACKET - CROSS CAR HARNESS 		$45.68 1
TO
015 14M0393CP
BRKT-INFOTAINMENT ECU-BASE AUDIO 		$72.41 1
TO
015 14MA154RP
BRKT-INFOTAINMENT ECU-HIGH AUDIO 		$117.28 1
TO
015 28MA244CP
BRKT-INFOTAINMENT ECU 		$122.83 1
TO
015 14M1153CP
BRKT-INFOTAINMENT ECU-HIGH AUDIO 		$111.69 1
TO
016 14M1080CP
BRACKET - WIRING HARNESS - FRONT 		$85.58 1
TO
017 14M1205CP
BRKT - DEVELOPMENT INTERFACE 		$33.05 1
TO
018 00RA064
BOLT - M5X12 - HEX 		- 4
PE
 Enquire
019 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 4
PE
 Enquire
020 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 2
PE
 Enquire
021 00RA521
SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 		- 4
PE
 Enquire
022 00RA582
NUT - M5 - HEX 		- 4
PE
 Enquire
023 00RC017
WASHER - M5X15X1.2 		- 4
PE
 Enquire
024 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 1
PE
 Enquire
025 14MA663CP
RR INTERIOR FUSEBOX BRACKET 		- 1
PE
 Enquire
