McLaren 750S Spider - 19 - SUSPENSION - FRONT - 19.1 - DAMPER & ACTUATOR ASSEMBLIES FRONT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
28BA288CP ASSY ACTUATOR FR RH LIFT $3,452.83 To Order
Photo Part No Description Price (each) Stock
28BA289CP ASSY ACTUATOR FR LH $2,418.42 To Order
28BA287CP ASSY ACTUATOR FR LH LIFT $3,452.83 To Order
Photo Part No Description Price (each) Stock
00RA559 BOLT - HEX HEAD - M10X1.5X40 Enquire To Order
28BA290CP ASSY ACTUATOR FR RH $2,418.42 To Order
Photo Part No Description Price (each) Stock
14BA254RP METAL BALL ACCUMULATOR $367.23 To Order

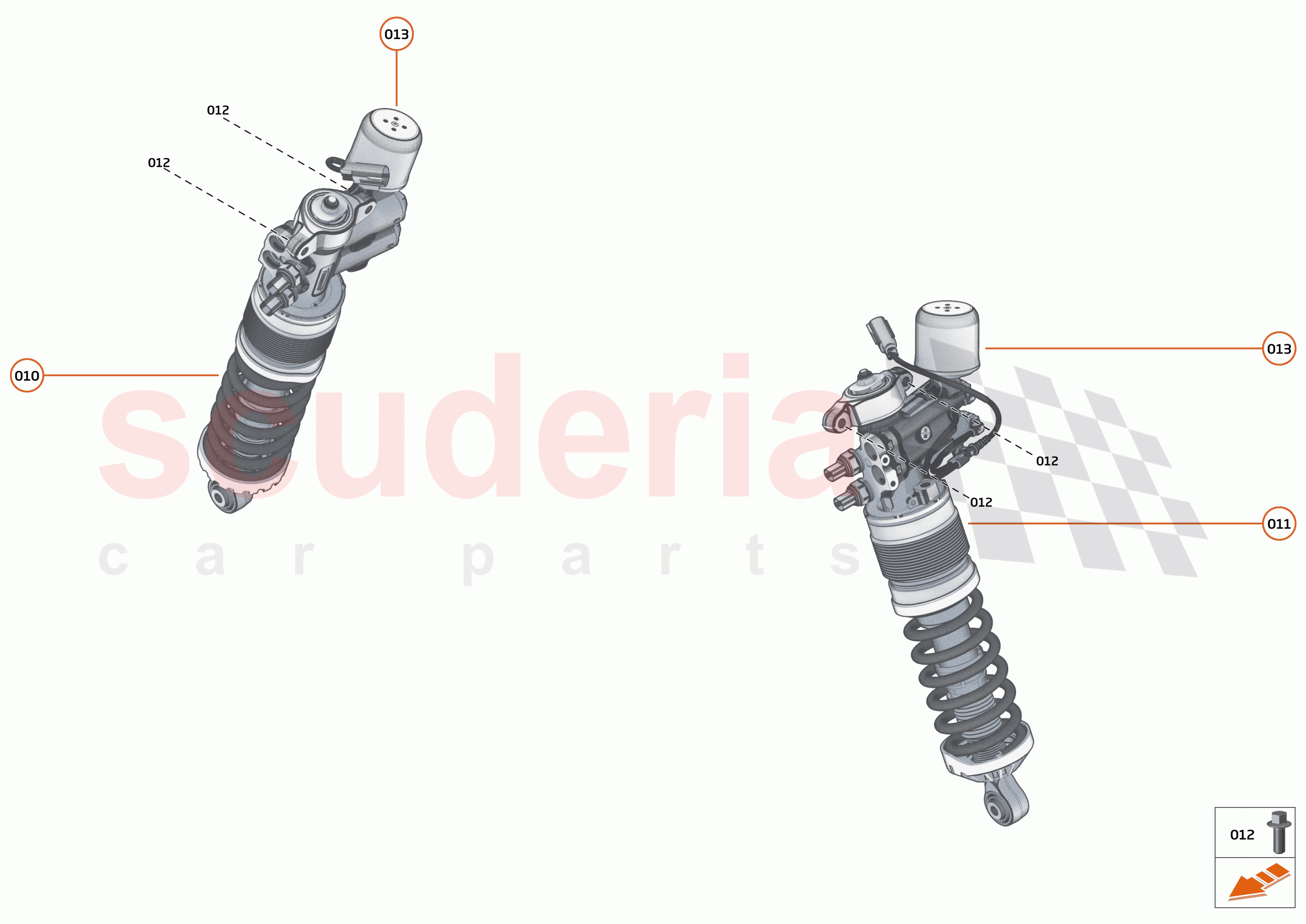

19 - SUSPENSION - FRONT - 19.1 - DAMPER & ACTUATOR ASSEMBLIES FRONT of McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 28BA288CP
ASSY ACTUATOR FR RH LIFT 		$3,452.83 1
TO
011 28BA289CP
ASSY ACTUATOR FR LH 		$2,418.42 1
TO
011 28BA287CP
ASSY ACTUATOR FR LH LIFT 		$3,452.83 1
TO
012 00RA559
BOLT - HEX HEAD - M10X1.5X40 		- 2
PE
 Enquire
012 28BA290CP
ASSY ACTUATOR FR RH 		$2,418.42 1
TO
013 14BA254RP
METAL BALL ACCUMULATOR 		$367.23 1
TO
