5 - Upper Structures - 5.2 - Rear Upper Structure

McLaren 750S Spider

Find Your Part

McLaren 750S Spider - 5 - UPPER STRUCTURES - 5.2 - REAR UPPER STRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
Photo Part No Description Price (each) Stock
11A3464CP SPACER - BULKHEAD GLASS $8.10 To Order
Photo Part No Description Price (each) Stock
00RA410 BOLT - BUTTON - FLANGE - M6X40 Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA242 STUD M8X1.25X35 Enquire To Order
Photo Part No Description Price (each) Stock
00RC104 Washer - M8x24x2 - Black Enquire To Order
Photo Part No Description Price (each) Stock
00RA606 BOLT - M8X1.25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14A2717SP SERVICE HATCH-SPIDER ASSY $345.26 To Order
Photo Part No Description Price (each) Stock
14A2716SP SERVICE HATCH FOAM SEAL SPIDER $65.98 To Order
Photo Part No Description Price (each) Stock
14AB518SP ASSY BRKT-D LOOP LH $345.26 To Order
Photo Part No Description Price (each) Stock
14AB519SP ASSY BRKT-D LOOP RH $345.26 To Order

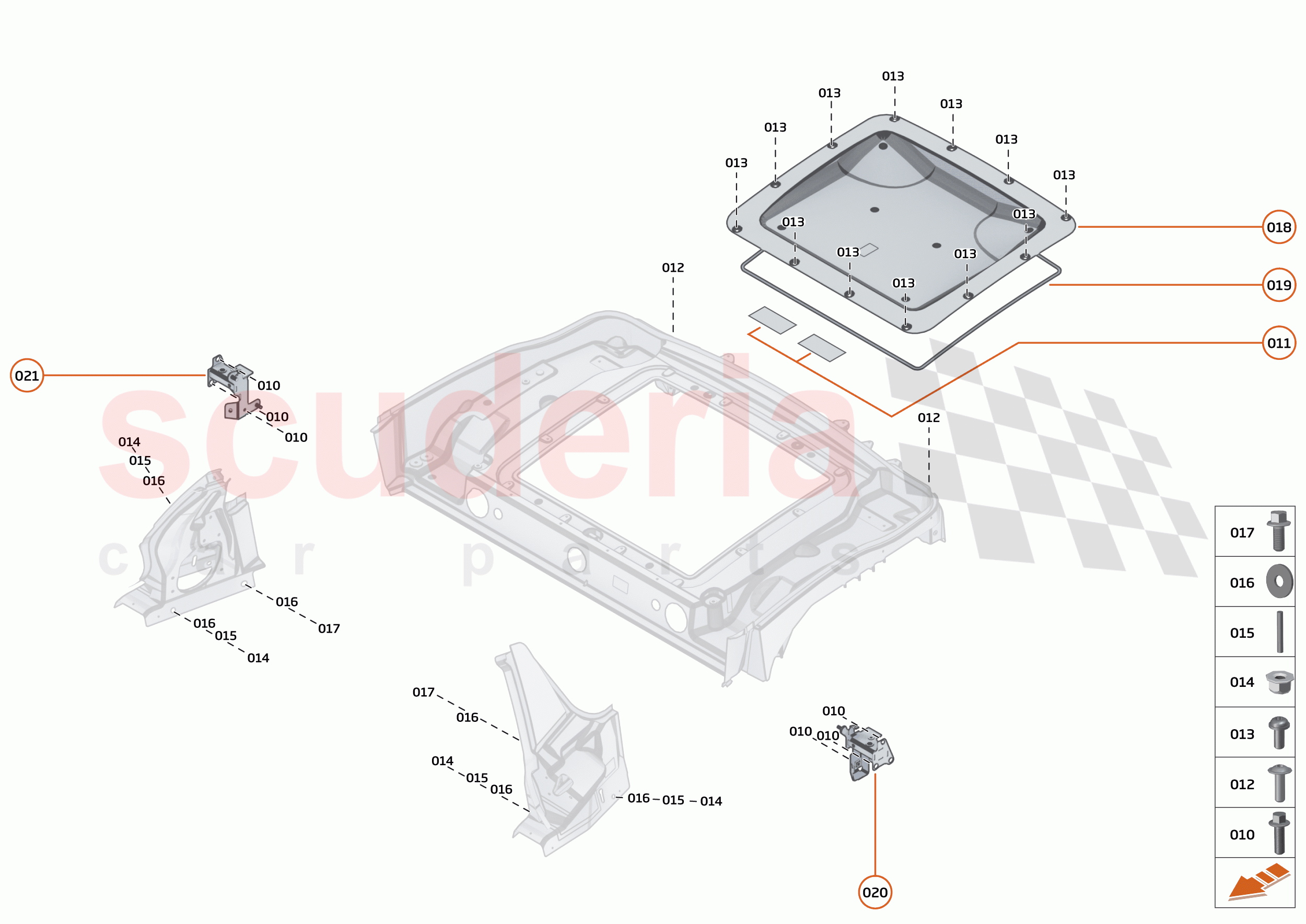

5 - UPPER STRUCTURES - 5.2 - REAR UPPER STRUCTURE of McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA557
BOLT - HEX HEAD - M8X1.25X25 		- 6
PE
 Enquire
011 11A3464CP
SPACER - BULKHEAD GLASS 		$8.10 2
TO
012 00RA410
BOLT - BUTTON - FLANGE - M6X40 		- 2
PE
 Enquire
013 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 12
PE
 Enquire
014 00RA056
NUT - M8-8 - LOCK HEX 		- 4
PE
 Enquire
015 00RA242
STUD M8X1.25X35 		- 4
PE
 Enquire
016 00RC104
Washer - M8x24x2 - Black 		- 6
PE
 Enquire
017 00RA606
BOLT - M8X1.25 - HEX 		- 2
PE
 Enquire
018 14A2717SP
SERVICE HATCH-SPIDER ASSY 		$345.26 1
TO
019 14A2716SP
SERVICE HATCH FOAM SEAL SPIDER 		$65.98 1
TO
020 14AB518SP
ASSY BRKT-D LOOP LH 		$345.26 1
TO
021 14AB519SP
ASSY BRKT-D LOOP RH 		$345.26 1
TO
