McLaren 750S Spider - 9 - OPENING ROOF SYSTEMS - 9.1 - CONVERTIBLE ROOF

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AA373MP RHT SEAL CARRIER LH BLK $1,726.40 To Order
14AB345SP ROOF PANEL SEAL CARRIER - SEAL - LEFT $1,624.84 To Order
Photo Part No Description Price (each) Stock
14AA374MP RHT SEAL CARRIER RH BLK $1,726.40 To Order
14AB346SP ROOF PANEL SEAL CARRIER - SEAL - RIGHT $1,624.84 To Order
Photo Part No Description Price (each) Stock
14AB215SP SEAL - SPIDER $1,611.30 To Order
Photo Part No Description Price (each) Stock
14A3142SP RHT PIN LH - PIN - LEFT $289.61 To Order
Photo Part No Description Price (each) Stock
14A3143SP RHT PIN RH - PIN - RIGHT $289.61 To Order
Photo Part No Description Price (each) Stock
14AB591SP RHT LATCH $1,691.89 To Order
Photo Part No Description Price (each) Stock
14AB341SP DYNAMIC FLAP MECH - FLAP MECH - LEFT $906.35 To Order
Photo Part No Description Price (each) Stock
14AB342SP DYNAMIC FLAP MECH RH $845.93 To Order
Photo Part No Description Price (each) Stock
14AB359SP TC HINGE - TONNEAU HINGE - LH AND RH $483.38 To Order
Photo Part No Description Price (each) Stock
28AA002MP ASSY RHT GLAZED BLK PK $38,291.55 To Order
28AA001MP ASSY ROOF BLK PK $27,207.15 To Order
28AA077SP ASSY PNL ROOF GLAZED $21,393.02 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16AB248SP SPD CONTROLLER - ELECTROCHROMIC - POWER UNIT $1,712.02 To Order
Photo Part No Description Price (each) Stock
28AA076SP ASSY RHT HEADLINER GLAZED Enquire To Order
28AA074SP RHT HEADLINER $3,554.39 To Order
Photo Part No Description Price (each) Stock
14MA109SP RHT ELECTROCHROMIC SWITCH $284.34 To Order
Photo Part No Description Price (each) Stock
14AA663SP RHT RR MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14AA664SP RHT FRT LH MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14AA665SP RHT FRT RH MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
00RB201 CLAMP - SPRING BAND - 21X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB204 CLAMP - SPRING BAND - 27X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA621 SCREW - M6X24 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
14AB210SP TC KINEMATIC RH - KINEMATIC - RIGHT $2,557.96 To Order
Photo Part No Description Price (each) Stock
14AB209SP TC KINEMATIC LH - KINEMATIC - LEFT $2,578.10 To Order
Photo Part No Description Price (each) Stock
14AB274SP TC STRIKER LH - STRIKER - LEFT $825.77 To Order
Photo Part No Description Price (each) Stock
14AB275SP TC STRIKER RH - STRIKER - RIGHT $765.36 To Order
Photo Part No Description Price (each) Stock
14AB179SP HOSE TONNEAU EXT DRAIN SPIDER RH $173.17 To Order
Photo Part No Description Price (each) Stock
14AB180SP HOSE TONNEAU EXT DRAIN SPIDER LH $173.17 To Order
Photo Part No Description Price (each) Stock
11A4037SP RHT - Back Light Glass Assy $1,087.63 To Order
Photo Part No Description Price (each) Stock
11A4038SP RHT - Backlight Slider Carrier Kit $17.25 To Order
Photo Part No Description Price (each) Stock
11A4039SP Motor - RHT - Back Light E-drive $261.81 To Order
Photo Part No Description Price (each) Stock
14AB487SP TONNEAU BLOCK $7.90 To Order
Photo Part No Description Price (each) Stock
28AA072SP ASSY RHT BASE $31,069.90 To Order
Photo Part No Description Price (each) Stock
28AA075SP ASSY RHT KINEMATIC $20,619.95 To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
00RA614 BOLT - M8X1.25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RA344 SCREW - HEX - FLANGE - M8X16 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA302 SCREW - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA485 BOLT - HEX HEAD - FLANGED - M8X25 Enquire To Order

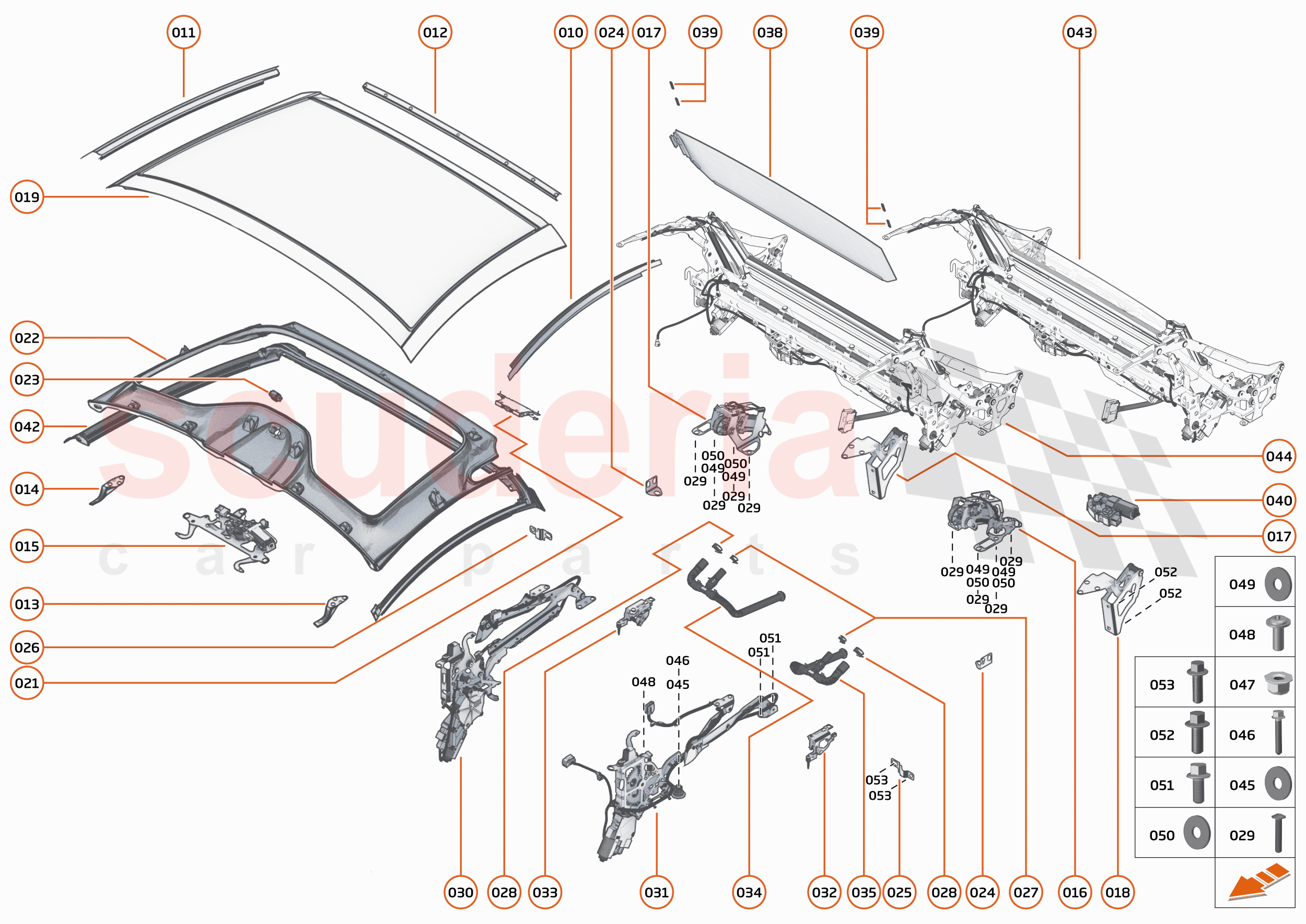

9 - OPENING ROOF SYSTEMS - 9.1 - CONVERTIBLE ROOF of McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RX049
BOLT - M8X60 - HEX 		- 2
PE
 Enquire
010 14AA373MP
RHT SEAL CARRIER LH BLK 		$1,726.40 1
TO
010 14AB345SP
ROOF PANEL SEAL CARRIER - SEAL - LEFT 		$1,624.84 1
TO
011 14AA374MP
RHT SEAL CARRIER RH BLK 		$1,726.40 1
TO
011 14AB346SP
ROOF PANEL SEAL CARRIER - SEAL - RIGHT 		$1,624.84 1
TO
012 14AB215SP
SEAL - SPIDER
RHT SEAL; 		$1,611.30 1
TO
013 14A3142SP
RHT PIN LH - PIN - LEFT
RHT PIN LH; 		$289.61 1
TO
014 14A3143SP
RHT PIN RH - PIN - RIGHT
RHT PIN RH; 		$289.61 1
TO
015 14AB591SP
RHT LATCH
RHT LATCH; 		$1,691.89 1
TO
016 14AB341SP
DYNAMIC FLAP MECH - FLAP MECH - LEFT 		$906.35 1
TO
017 14AB342SP
DYNAMIC FLAP MECH RH 		$845.93 1
TO
018 14AB359SP
TC HINGE - TONNEAU HINGE - LH AND RH 		$483.38 2
TO
019 28AA002MP
ASSY RHT GLAZED BLK PK 		$38,291.55 1
TO
019 28AA001MP
ASSY ROOF BLK PK 		$27,207.15 1
TO
019 28AA077SP
ASSY PNL ROOF GLAZED 		$21,393.02 1
TO
019 28AA073SP
ASSY RHT GLAZED 		- 1
PE
 Enquire
019 14AB348SP
ROOF PANEL BASE - PANEL BASE - ROOF
ASSY ROOF; 		$15,514.94 1
TO
021 16AB248SP
SPD CONTROLLER - ELECTROCHROMIC - POWER UNIT 		$1,712.02 1
TO
022 28AA076SP
ASSY RHT HEADLINER GLAZED 		- 1
PE
 Enquire
022 28AA074SP
RHT HEADLINER 		$3,554.39 1
TO
023 14MA109SP
RHT ELECTROCHROMIC SWITCH 		$284.34 1
TO
024 14AA663SP
RHT RR MOUNTING BRACKET 		- 2
PE
 Enquire
025 14AA664SP
RHT FRT LH MOUNTING BRACKET 		- 1
PE
 Enquire
026 14AA665SP
RHT FRT RH MOUNTING BRACKET 		- 1
PE
 Enquire
027 00RB201
CLAMP - SPRING BAND - 21X12 		- 2
PE
 Enquire
028 00RB204
CLAMP - SPRING BAND - 27X12 		- 2
PE
 Enquire
029 00RA621
SCREW - M6X24 - BUTTON 		- 4
PE
 Enquire
030 14AB210SP
TC KINEMATIC RH - KINEMATIC - RIGHT 		$2,557.96 1
TO
031 14AB209SP
TC KINEMATIC LH - KINEMATIC - LEFT 		$2,578.10 1
TO
032 14AB274SP
TC STRIKER LH - STRIKER - LEFT 		$825.77 1
TO
033 14AB275SP
TC STRIKER RH - STRIKER - RIGHT 		$765.36 1
TO
034 14AB179SP
HOSE TONNEAU EXT DRAIN SPIDER RH 		$173.17 1
TO
035 14AB180SP
HOSE TONNEAU EXT DRAIN SPIDER LH 		$173.17 1
TO
038 11A4037SP
RHT - Back Light Glass Assy 		$1,087.63 1
TO
039 11A4038SP
RHT - Backlight Slider Carrier Kit 		$17.25 1
TO
040 11A4039SP
Motor - RHT - Back Light E-drive 		$261.81 1
TO
042 14AB487SP
TONNEAU BLOCK 		$7.90 2
TO
043 28AA072SP
ASSY RHT BASE 		$31,069.90 1
TO
044 28AA075SP
ASSY RHT KINEMATIC 		$20,619.95 1
TO
045 00RC015
WASHER - M8X24X2 		- 4
PE
 Enquire
046 00RA614
BOLT - M8X1.25 - HEX 		- 2
PE
 Enquire
047 00RA075
NUT - M8-8 - HEX 		- 1
PE
 Enquire
048 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 2
PE
 Enquire
049 00RC064
WASHER - M6X18X1.6 - BLACK 		- 4
PE
 Enquire
050 00RC065
WASHER - M10X21X2.0 		- 4
PE
 Enquire
051 00RA344
SCREW - HEX - FLANGE - M8X16 - 8.8 		- 4
PE
 Enquire
052 00RA302
SCREW - M8X20 - HEX 		- 2
PE
 Enquire
053 00RA485
BOLT - HEX HEAD - FLANGED - M8X25 		- 4
PE
 Enquire
