7 - Closures - 7.7 - Door Latch

McLaren 750S Spider

Find Your Part

McLaren 750S Spider - 7 - CLOSURES - 7.7 - DOOR LATCH

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14A3218CP MOULDING - DOOR STRIKER $40.60 To Order
Photo Part No Description Price (each) Stock
14AA546CP DOOR LATCH ESCUTCHEON - RH $24.80 To Order
Photo Part No Description Price (each) Stock
14AA548CP DOOR LATCH ESCUTCHEON - LH $24.80 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC062 WASHER - M6 - SERRATED Enquire To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
15AC155CP CAP - DOOR RELEASE CABLE - LH $3.63 To Order
Photo Part No Description Price (each) Stock
15AC143CP CAP - DOOR RELEASE CABLE - RH $3.63 To Order
Photo Part No Description Price (each) Stock
16AF416CP LATCH DOOR POWER CLOSE RH $446.82 To Order
Photo Part No Description Price (each) Stock
00RA747 SCREW - CSK-TX - M8X1.25X20-10.9 Enquire To Order
Photo Part No Description Price (each) Stock
16AF051CP DOOR STRIKER - SILVER $40.60 To Order
Photo Part No Description Price (each) Stock
16AF415CP LATCH DOOR POWER CLOSE LH $446.82 To Order
Photo Part No Description Price (each) Stock
11A2814CP EXTERNAL KEY BARREL HOUSING $71.07 To Order
Photo Part No Description Price (each) Stock
00RC050 WASHER - M6X5.0MM Enquire To Order
Photo Part No Description Price (each) Stock
14A4435CP ASSY BRKT FNDR LWR RH $40.60 To Order
Photo Part No Description Price (each) Stock
14AD598CP LEVER CAM - EXTERNAL KEY BARREL $45.30 To Order
Photo Part No Description Price (each) Stock
14AC550CP DOOR RELEASE - MANUAL KEY HOLDER $71.07 To Order
Photo Part No Description Price (each) Stock
15AC144CP CABLE RELEASE - INTERNAL - DOOR LATCH $35.23 To Order
Photo Part No Description Price (each) Stock
14AD611CP ASSY BRKT FNDR LWR KEY BARREL LH $223.40 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
13AA994CP DOOR STRIKER - SHIM - 1MM $9.32 To Order
Photo Part No Description Price (each) Stock
14AA983SP CABLE DOOR LATCH EXT RELEASE $30.44 To Order

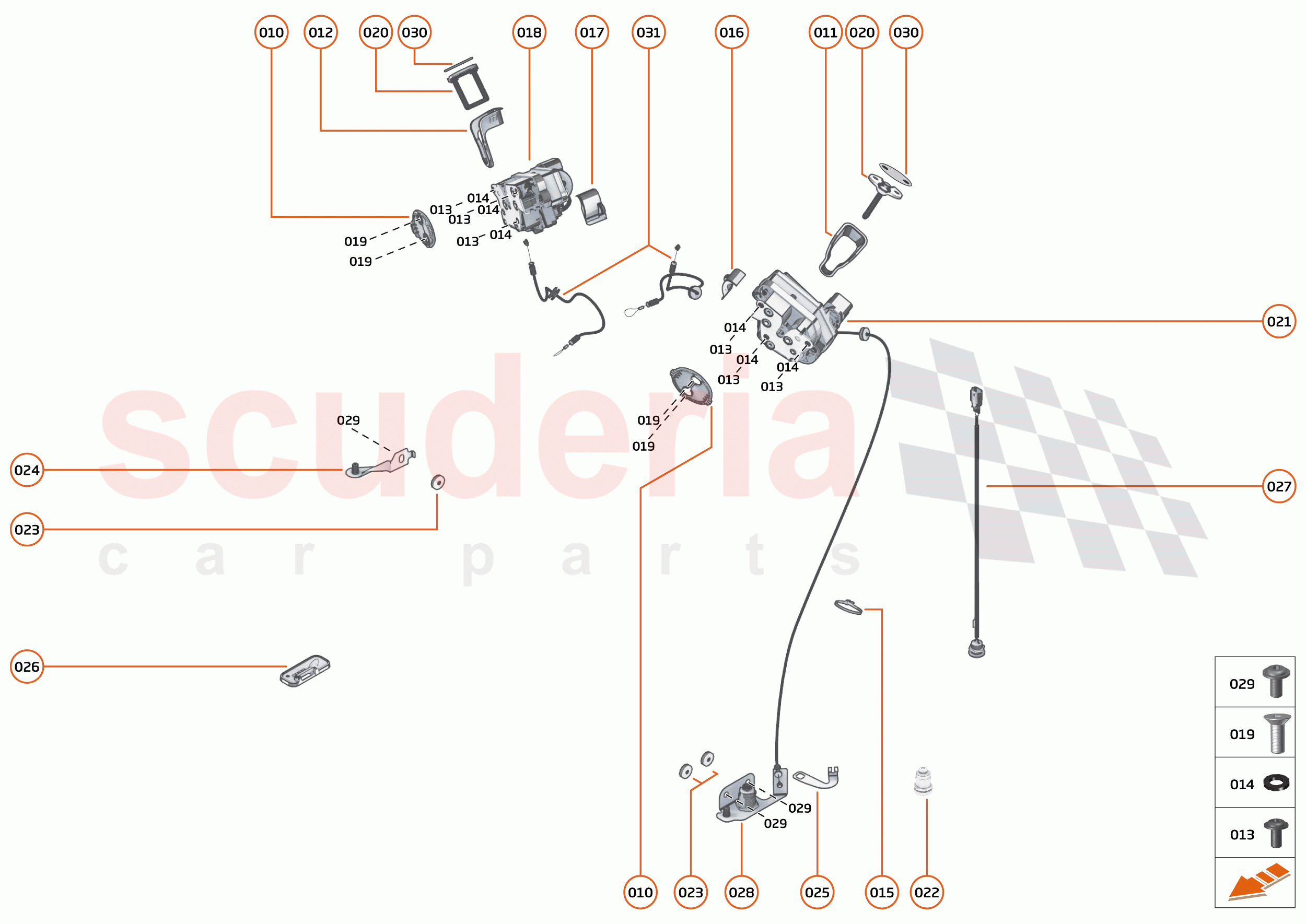

7 - CLOSURES - 7.7 - DOOR LATCH of McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14A3218CP
MOULDING - DOOR STRIKER 		$40.60 1
TO
011 14AA546CP
DOOR LATCH ESCUTCHEON - RH 		$24.80 1
TO
012 14AA548CP
DOOR LATCH ESCUTCHEON - LH 		$24.80 1
TO
013 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 3
PE
 Enquire
014 00RC062
WASHER - M6 - SERRATED 		- 3
PE
 Enquire
015 00RL012
CABLE TIE - 300X4.6MM 		- 1
PE
 Enquire
016 15AC155CP
CAP - DOOR RELEASE CABLE - LH 		$3.63 1
TO
017 15AC143CP
CAP - DOOR RELEASE CABLE - RH 		$3.63 1
TO
018 16AF416CP
LATCH DOOR POWER CLOSE RH 		$446.82 1
TO
019 00RA747
SCREW - CSK-TX - M8X1.25X20-10.9 		- 2
PE
 Enquire
020 16AF051CP
DOOR STRIKER - SILVER 		$40.60 1
TO
021 16AF415CP
LATCH DOOR POWER CLOSE LH 		$446.82 1
TO
022 11A2814CP
EXTERNAL KEY BARREL HOUSING 		$71.07 1
TO
023 00RC050
WASHER - M6X5.0MM 		- 3
PE
 Enquire
024 14A4435CP
ASSY BRKT FNDR LWR RH 		$40.60 1
TO
025 14AD598CP
LEVER CAM - EXTERNAL KEY BARREL 		$45.30 1
TO
026 14AC550CP
DOOR RELEASE - MANUAL KEY HOLDER 		$71.07 1
TO
027 15AC144CP
CABLE RELEASE - INTERNAL - DOOR LATCH 		$35.23 1
TO
028 14AD611CP
ASSY BRKT FNDR LWR KEY BARREL LH 		$223.40 1
TO
029 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 3
PE
 Enquire
030 13AA994CP
DOOR STRIKER - SHIM - 1MM 		$9.32 2
TO
031 14AA983SP
CABLE DOOR LATCH EXT RELEASE 		$30.44 1
TO
