14 - Wipers & Washer System - 14.1 - Washer System

McLaren 750S Spider

Find Your Part

McLaren 750S Spider - 14 - WIPERS & WASHER SYSTEM - 14.1 - WASHER SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AD097CP ASSY WASHER BOTTLE $152.32 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
13AA313CP HOSE CLAMP - 35-50MM $6.52 To Order
Photo Part No Description Price (each) Stock
13A4522CP CAP - WASHER BOTTLE $67.37 To Order
Photo Part No Description Price (each) Stock
13A4585CP GASKET - WINDCREEN - WASHER BOTTLE $5.67 To Order
Photo Part No Description Price (each) Stock
13A4201CP SENSOR - WASHER LEVEL $45.30 To Order
Photo Part No Description Price (each) Stock
13AA617CP GROMMET - SENSOR - WASHER LEVEL $23.84 To Order
Photo Part No Description Price (each) Stock
13A4198CP PUMP - WINDSCREEN WASH $132.00 To Order
Photo Part No Description Price (each) Stock
13A4199CP GROMMET - WASHER BOTTLE - PUMP $25.37 To Order
Photo Part No Description Price (each) Stock
14A0284CP WASHER HOSE - WINDSCREEN $30.44 To Order
14AA104CP HOSE-SCREEN WASH $14.21 To Order
Photo Part No Description Price (each) Stock
13AA316CP CABLE-TIE-BASE-FIRTREE+TIE M6 $1.53 To Order
Photo Part No Description Price (each) Stock
00RG057 GROMMET - 19X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RB170 CLIP - WASHER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
14A0285CP HOSE-SCREEN WASH RH Enquire To Order
Photo Part No Description Price (each) Stock
14A3381CP HOSE-SCREEN WASH NOZZLE $4.61 To Order
13A1860CP NOZZLE - WASHER BOTTLE $5.25 To Order
Photo Part No Description Price (each) Stock
00RB211 CLIP - PIPE - WINDSCREEN WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13A4586CP ONE WAY VALVE - PIPE - WINDSCREEN WASHER $3.23 To Order
Photo Part No Description Price (each) Stock
14AD351CP WASHER JET ADAPTER $35.54 To Order

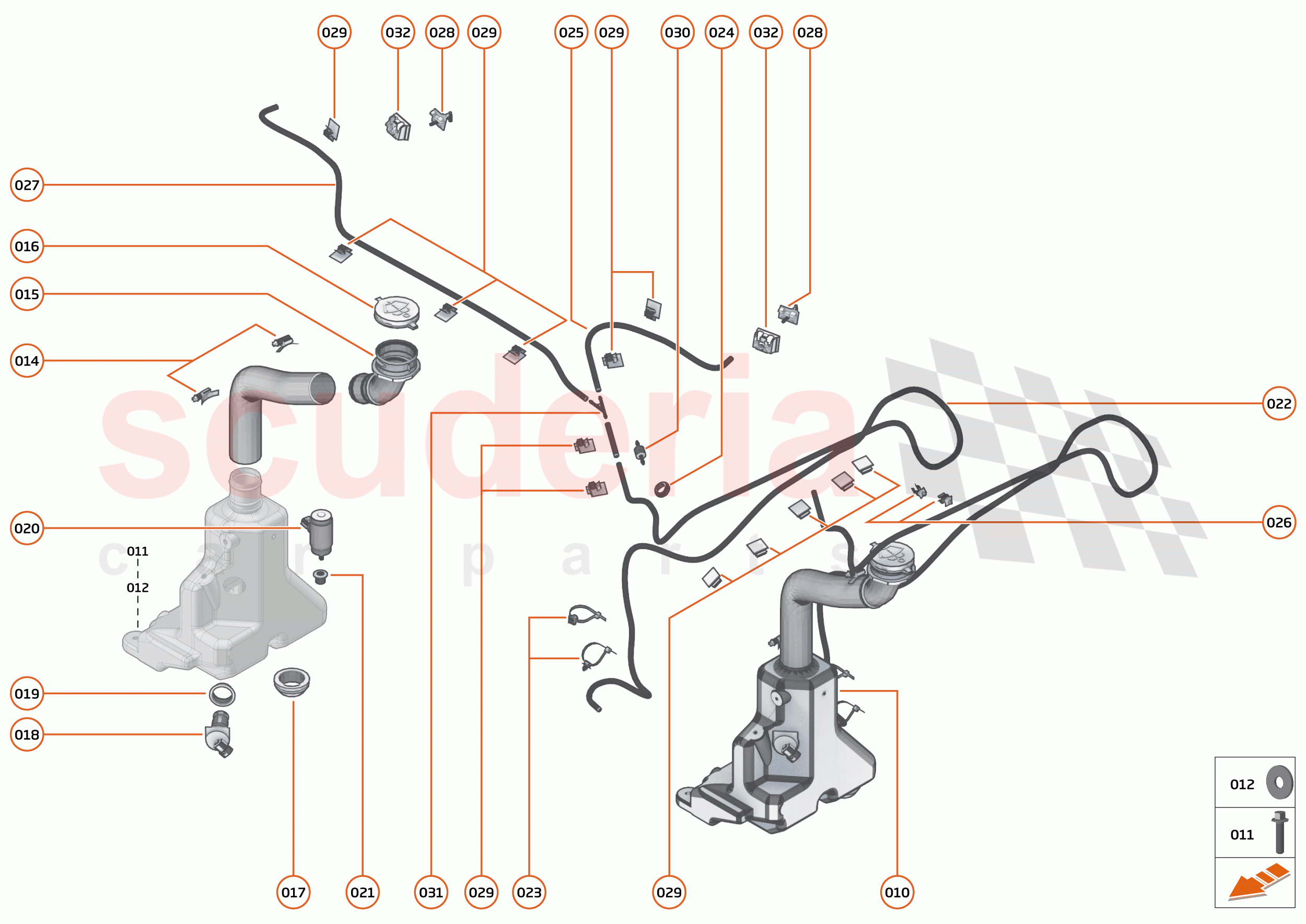

14 - WIPERS & WASHER SYSTEM - 14.1 - WASHER SYSTEM of McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AD097CP
ASSY WASHER BOTTLE 		$152.32 1
TO
011 00RA120
SCREW - M6X25 - HEX 		- 1
PE
 Enquire
012 00RC043
WASHER - M6XOD25 		- 1
PE
 Enquire
014 13AA313CP
HOSE CLAMP - 35-50MM 		$6.52 2
TO
016 13A4522CP
CAP - WASHER BOTTLE 		$67.37 1
TO
017 13A4585CP
GASKET - WINDCREEN - WASHER BOTTLE 		$5.67 1
TO
018 13A4201CP
SENSOR - WASHER LEVEL 		$45.30 1
TO
019 13AA617CP
GROMMET - SENSOR - WASHER LEVEL 		$23.84 1
TO
020 13A4198CP
PUMP - WINDSCREEN WASH 		$132.00 1
TO
021 13A4199CP
GROMMET - WASHER BOTTLE - PUMP 		$25.37 1
TO
022 14A0284CP
WASHER HOSE - WINDSCREEN 		$30.44 1
TO
022 14AA104CP
HOSE-SCREEN WASH 		$14.21 1
TO
023 13AA316CP
CABLE-TIE-BASE-FIRTREE+TIE M6 		$1.53 2
TO
024 00RG057
GROMMET - 19X1.2 		- 1
PE
 Enquire
025 14A0286CP
HOSE-SCREEN WASH LH 		- 1
PE
 Enquire
026 00RB170
CLIP - WASHER HOSE 		- 2
PE
 Enquire
027 14A0285CP
HOSE-SCREEN WASH RH 		- 1
PE
 Enquire
028 14A3381CP
HOSE-SCREEN WASH NOZZLE 		$4.61 1
TO
028 13A1860CP
NOZZLE - WASHER BOTTLE 		$5.25 2
TO
029 00RB211
CLIP - PIPE - WINDSCREEN WASHER 		- 6
PE
 Enquire
030 13A4586CP
ONE WAY VALVE - PIPE - WINDSCREEN WASHER 		$3.23 1
TO
031 13A4587CP
CONNECTOR Y-PIECE - PIPE - WINDSCREEN WASHER 		$2.00 1
TO
032 14AD351CP
WASHER JET ADAPTER 		$35.54 2
TO
