McLaren 750S Spider - 11 - EXTERIOR ORNAMENTATION - 11.7 - REAR FINISHERS AND GRILLES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14AB763RP MALE QTR TURN PIN D8-316-219-191 $7.69 To Order
Photo Part No Description Price (each) Stock
14AB406RP MALE QTR TURN WASHER D8-326-101-200 $2.22 To Order
Photo Part No Description Price (each) Stock
00RC047 Washer - OD12.7xID4.7x1.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RC118 WASHER - M6X14.4X2.4 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA464 SCREW - M4X12 - BUTTON HEAD - SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA303 Screw - Button Head - Hex Flange - M4x6-10.9 BLK Enquire To Order
Photo Part No Description Price (each) Stock
28AA590CP ASSY REAR UPPER MESH $2,823.19 To Order
Photo Part No Description Price (each) Stock
28AA616CP ASSY REAR LOWER MESH $3,134.95 To Order
Photo Part No Description Price (each) Stock
28AA274CP UNDERWING MESH LH $735.97 To Order
Photo Part No Description Price (each) Stock
28AA275CP UNDERWING MESH RH $735.97 To Order

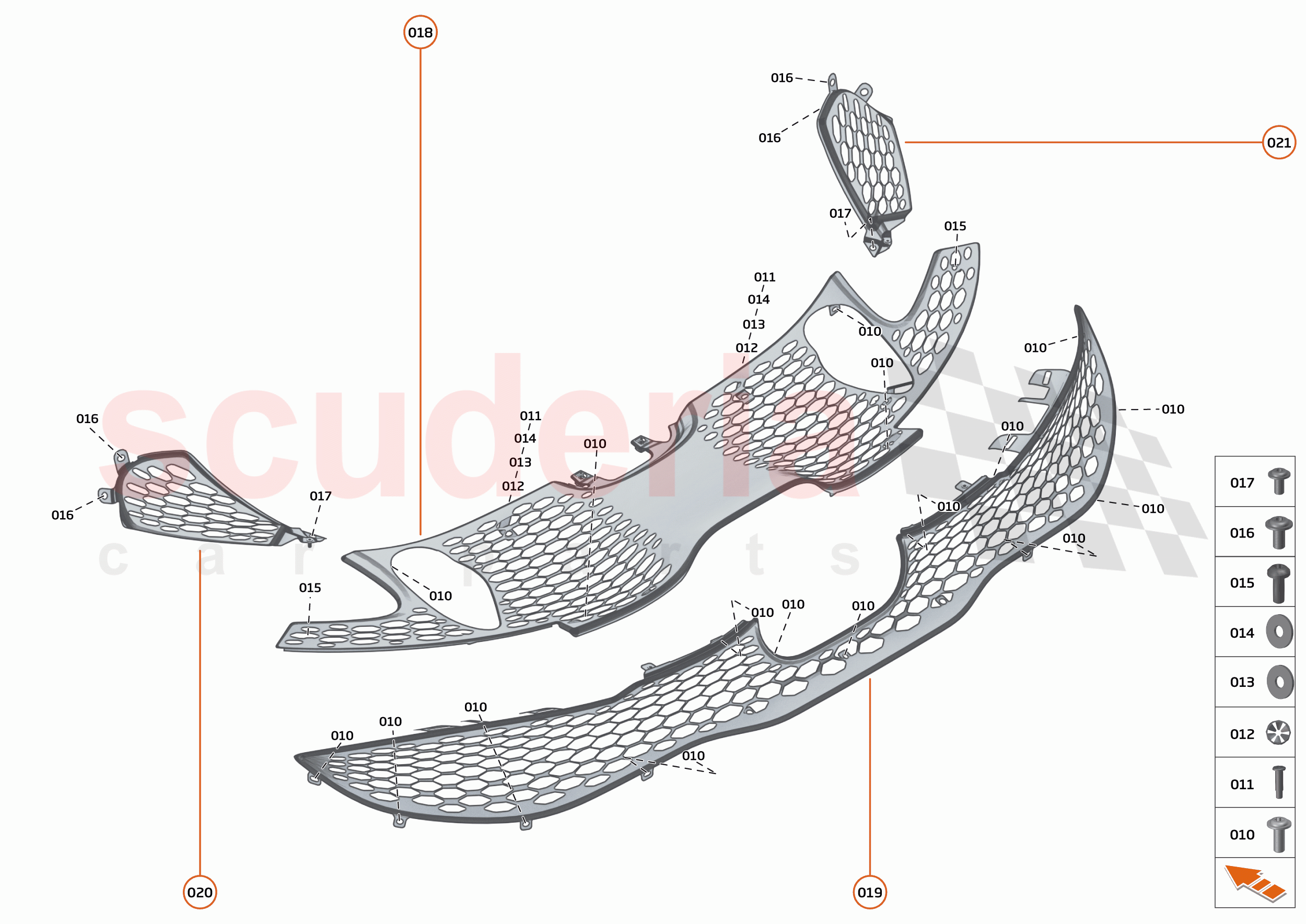

11 - EXTERIOR ORNAMENTATION - 11.7 - REAR FINISHERS AND GRILLES of McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA176
FIRTREE - 7.2X16X14 		- 2
PE
 Enquire
000 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX 		- 4
PE
 Enquire
000 00RC053
WASHER - M6X2.0MM 		- 2
PE
 Enquire
000 14AB884RP
UNDERWING MESH FOAM 		$13.18 1
TO
000 14AD413CP
RR BMPR GRILLE CTR 		$832.73 1
TO
000 14AC404CP
RR GRILLE UPR RH 		$584.08 1
TO
000 14AC403CP
RR GRILLE UPR LH 		$584.08 1
TO
000 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 4
PE
 Enquire
010 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 13
PE
 Enquire
011 14AB763RP
MALE QTR TURN PIN D8-316-219-191 		$7.69 2
TO
012 14AB406RP
MALE QTR TURN WASHER D8-326-101-200 		$2.22 2
TO
013 00RC047
Washer - OD12.7xID4.7x1.6 		- 2
PE
 Enquire
014 00RC118
WASHER - M6X14.4X2.4 - BLACK 		- 2
PE
 Enquire
015 00RA464
SCREW - M4X12 - BUTTON HEAD - SOCKET 		- 2
PE
 Enquire
016 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 2
PE
 Enquire
017 00RA303
Screw - Button Head - Hex Flange - M4x6-10.9 BLK 		- 1
PE
 Enquire
018 28AA590CP
ASSY REAR UPPER MESH 		$2,823.19 1
TO
019 28AA616CP
ASSY REAR LOWER MESH 		$3,134.95 1
TO
020 28AA274CP
UNDERWING MESH LH 		$735.97 1
TO
021 28AA275CP
UNDERWING MESH RH 		$735.97 1
TO
