33 - Heat Insulation - 33.2 - Heatshields - Vehicle Mounted

McLaren 750S Coupe

Find Your Part

McLaren 750S Coupe - 33 - HEAT INSULATION - 33.2 - HEATSHIELDS - VEHICLE MOUNTED

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14E0025CP HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD $96.45 To Order
Photo Part No Description Price (each) Stock
14E0074CP NVH - BULKHEAD - CENTRE $75.52 To Order
Photo Part No Description Price (each) Stock
14H0083CP GASKET - BULKHEAD $14.21 To Order
Photo Part No Description Price (each) Stock
00RA146 SCRIVET - DIA 8 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
00RG003 FIRTREE 7.2X15X24 Enquire To Order
Photo Part No Description Price (each) Stock
14E0066CP HEATSHIELD - BULKHEAD - RH $161.11 To Order
Photo Part No Description Price (each) Stock
00RG054 CLIP - FIRTREE - 8X14 Enquire To Order
Photo Part No Description Price (each) Stock
15EA014CP HEATSHIELD - BULKHEAD - LH $385.87 To Order
Photo Part No Description Price (each) Stock
00RM005 ANIXTER RIVET - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14E0044CP HEATSHIELD - AIR GUIDE - FRONT - LH $140.97 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA301 Clip - Spier - M5 - 0.5/2.1-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order
Photo Part No Description Price (each) Stock
14E0045CP HEATSHIELD - AIR GUIDE - FRONT - RH $140.97 To Order
Photo Part No Description Price (each) Stock
00RC063 Washer - M5x20x1 Enquire To Order
00RC060 Washer - M5X25X1.3 Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
28EA011CP HEATSHIELD MUFFLER LOWER-NO VALVE Enquire To Order
28EA009CP HEATSHIELD MUFFLER LOWER-VALVE $446.82 To Order
Photo Part No Description Price (each) Stock
28EA008CP HEATSHIELD MUFFLER UPPER $446.82 To Order

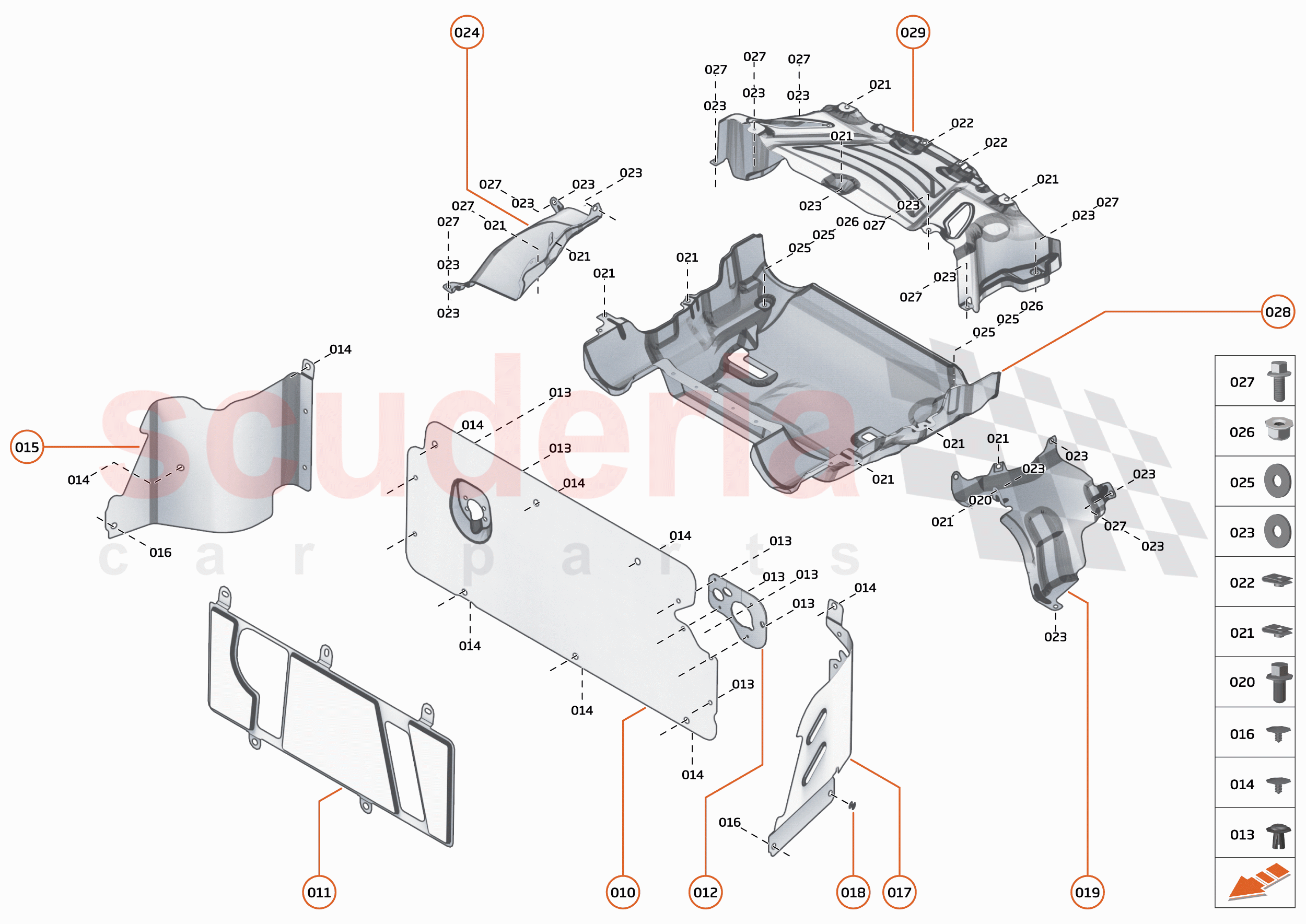

33 - HEAT INSULATION - 33.2 - HEATSHIELDS - VEHICLE MOUNTED of McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14E0025CP
HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD 		$96.45 1
TO
011 14E0074CP
NVH - BULKHEAD - CENTRE 		$75.52 1
TO
012 14H0083CP
GASKET - BULKHEAD 		$14.21 1
TO
013 00RA146
SCRIVET - DIA 8 X 14 		- 7
PE
 Enquire
014 00RG003
FIRTREE 7.2X15X24 		- 2
PE
 Enquire
015 14E0066CP
HEATSHIELD - BULKHEAD - RH 		$161.11 1
TO
016 00RG054
CLIP - FIRTREE - 8X14 		- 1
PE
 Enquire
017 15EA014CP
HEATSHIELD - BULKHEAD - LH 		$385.87 1
TO
018 00RM005
ANIXTER RIVET - BLACK 		- 2
PE
 Enquire
019 14E0044CP
HEATSHIELD - AIR GUIDE - FRONT - LH 		$140.97 1
TO
020 00RX003
BOLT - M6X1X12 - HEX 		- 1
PE
 Enquire
021 00RB183
CLIP - U NUT - M6 		- 2
PE
 Enquire
022 00RA301
Clip - Spier - M5 - 0.5/2.1-SS 		- 2
PE
 Enquire
023 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 5
PE
 Enquire
024 14E0045CP
HEATSHIELD - AIR GUIDE - FRONT - RH 		$140.97 1
TO
025 00RC063
Washer - M5x20x1 		- 2
PE
 Enquire
025 00RC060
Washer - M5X25X1.3 		- 4
PE
 Enquire
026 00RA582
NUT - M5 - HEX 		- 2
PE
 Enquire
027 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 12
PE
 Enquire
027 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2
PE
 Enquire
028 28EA011CP
HEATSHIELD MUFFLER LOWER-NO VALVE 		- 1
PE
 Enquire
028 28EA009CP
HEATSHIELD MUFFLER LOWER-VALVE 		$446.82 1
TO
029 28EA008CP
HEATSHIELD MUFFLER UPPER 		$446.82 1
TO
