46 - Infotainment - 46.2 - Antenna System

McLaren 750S Coupe

Find Your Part

McLaren 750S Coupe - 46 - INFOTAINMENT - 46.2 - ANTENNA SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

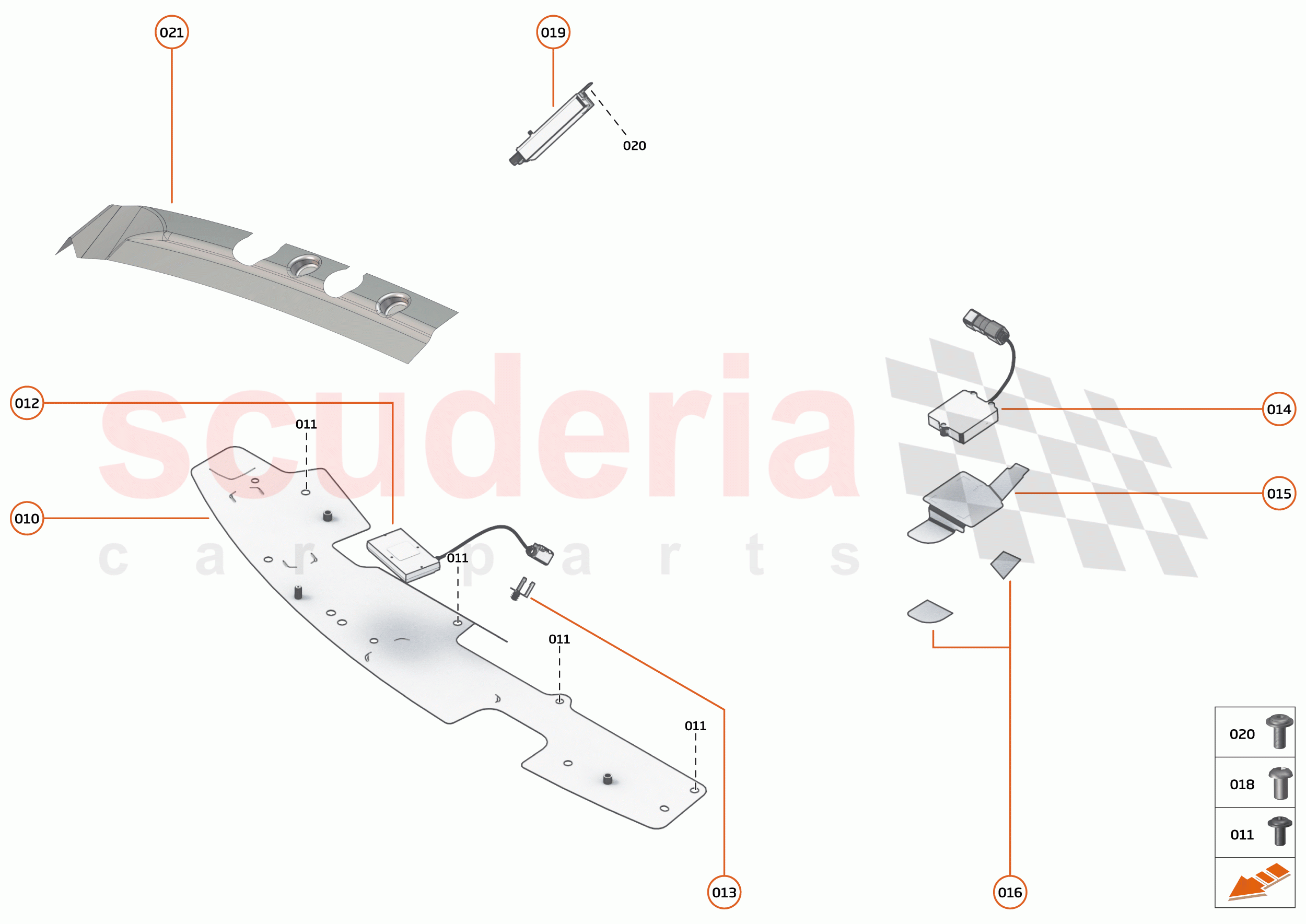

46 - INFOTAINMENT - 46.2 - ANTENNA SYSTEM of McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RL001
CABLE TIE - FIRTREE BASE 		- 1
PE
 Enquire
000 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2
PE
 Enquire
010 28MA378CP
MTG PNL-ANTENNA-RHD 		- 1
PE
 Enquire
010 28MA377CP
MTG PNL-ANTENNA-LHD 		- 1
PE
 Enquire
011 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 4
PE
 Enquire
012 16MA439CP
ANTENNA-GNSS 		- 1
PE
 Enquire
013 12M0555CP
CONNECTOR HOLDER - SINGLE 		$14.21 1
TO
014 14M0251CP
ANTENNA - SIRIUS - MY18 		- 1
PE
 Enquire
015 14MA139CP
BRACKET - ANTENNA - SIRIUS XM 		$35.23 1
TO
016 11C0593CP
TAPE ADHESIVE - COROPLAST - 837X - 19X100MM 		$35.54 1
TO
016 00RL004
FELT TAPE 		- 1
PE
 Enquire
018 00RA116
SCREW - M6X10 - BUTTON - 8.8 		- 1
PE
 Enquire
019 11M0454CP
ANTENNA - AM/FM AMPLIFIER 		$191.32 1
TO
020 00RA142
SCREW - M6X8 - BUTTON 		- 1
PE
 Enquire
021 14MA300CP
GROUND PLANE - AM-FM ANTENNA - A PILLAR - AM-FM ANTENNA CU GND PLN RHD 		- 1
PE
 Enquire
021 14MA299CP
GROUND PLANE - AM-FM ANTENNA - A PILLAR - AM-FM ANTENNA CU GND PLN LHD 		- 1
PE
 Enquire
