McLaren 750S Coupe

Find Your Part

McLaren 750S Coupe - 45 - ELECTRICAL HARDWARE - 45.2 - BRACKETS, GROMMETS & FIXINGS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

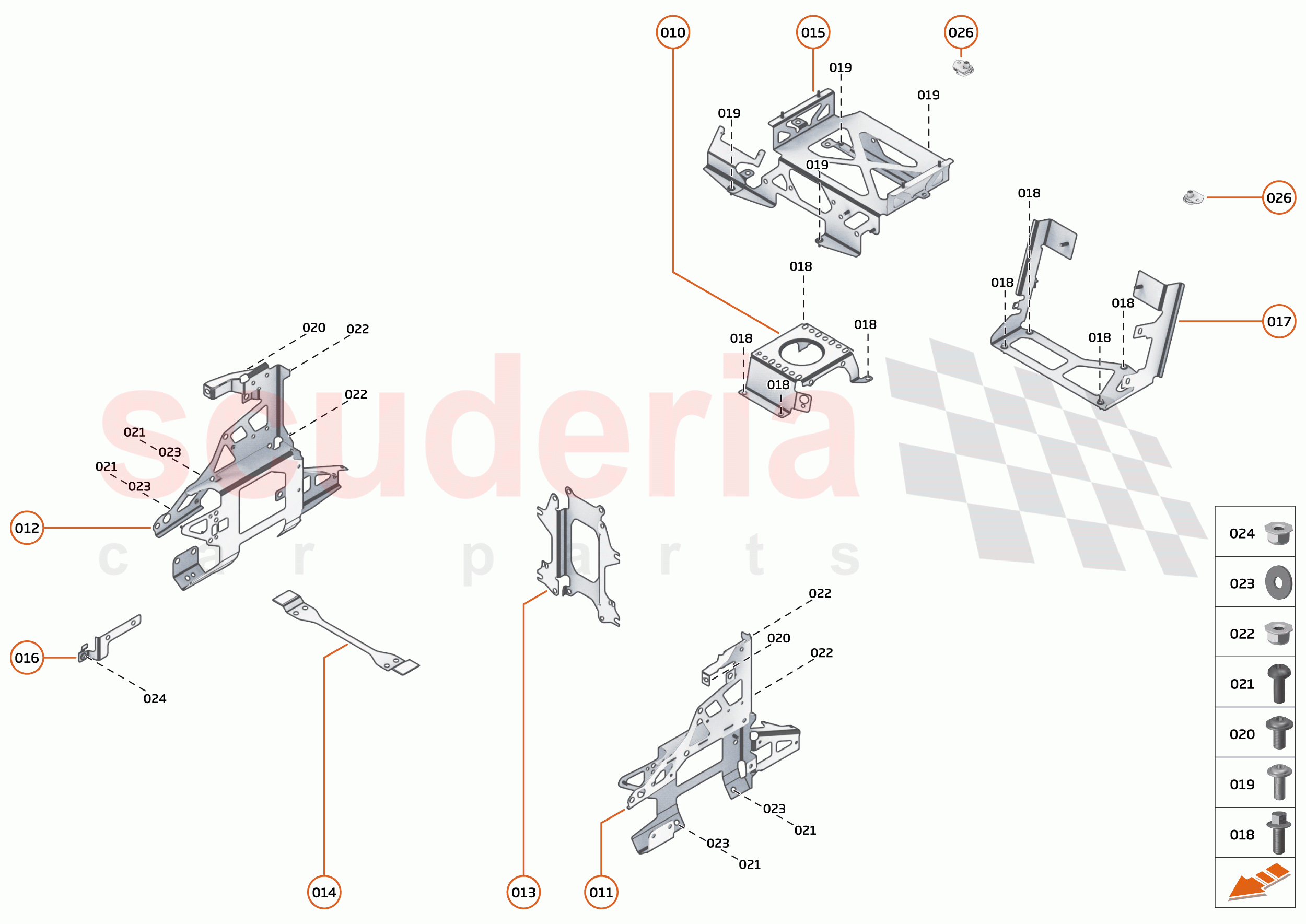

45 - ELECTRICAL HARDWARE - 45.2 - BRACKETS, GROMMETS & FIXINGS of McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RL004
FELT TAPE 		- 1
PE
 Enquire
010 28MA249CP
RR HARNESS CARRIER BRACKET 		$84.44 1
TO
011 14M1011CP
BRACKET - DISPLAY CONTROL UNIT - LH 		$300.07 1
TO
012 14M1012CP
BRACKET - DISPLAY CONTROL UNIT - RH 		$300.07 1
TO
013 14MA129CP
BRACKET - DISPLAY CONTROL UNIT - CENTRE 		$95.91 1
TO
014 14M1087CP
BRACKET - CROSS CAR HARNESS 		$45.68 1
TO
015 28MA244CP
BRKT-INFOTAINMENT ECU 		$122.83 1
TO
015 14M0393CP
BRKT-INFOTAINMENT ECU-BASE AUDIO 		$72.41 1
TO
016 14M1080CP
BRACKET - WIRING HARNESS - FRONT 		$85.58 1
TO
017 14M1205CP
BRKT - DEVELOPMENT INTERFACE 		$33.05 1
TO
018 00RA064
BOLT - M5X12 - HEX 		- 4
PE
 Enquire
019 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 4
PE
 Enquire
020 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 2
PE
 Enquire
021 00RA521
SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 		- 4
PE
 Enquire
022 00RA582
NUT - M5 - HEX 		- 4
PE
 Enquire
023 00RC017
WASHER - M5X15X1.2 		- 4
PE
 Enquire
024 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 1
PE
 Enquire
025 14MA663CP
RR INTERIOR FUSEBOX BRACKET 		- 1
PE
 Enquire
026 14M0969CP
COUPLING - HEATED REAR GLASS 		$192.93 2
TO
