43 - Wiring Harness - 43.2 - Body Wiring Harness

McLaren 750S Coupe

Find Your Part

McLaren 750S Coupe - 43 - WIRING HARNESS - 43.2 - BODY WIRING HARNESS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

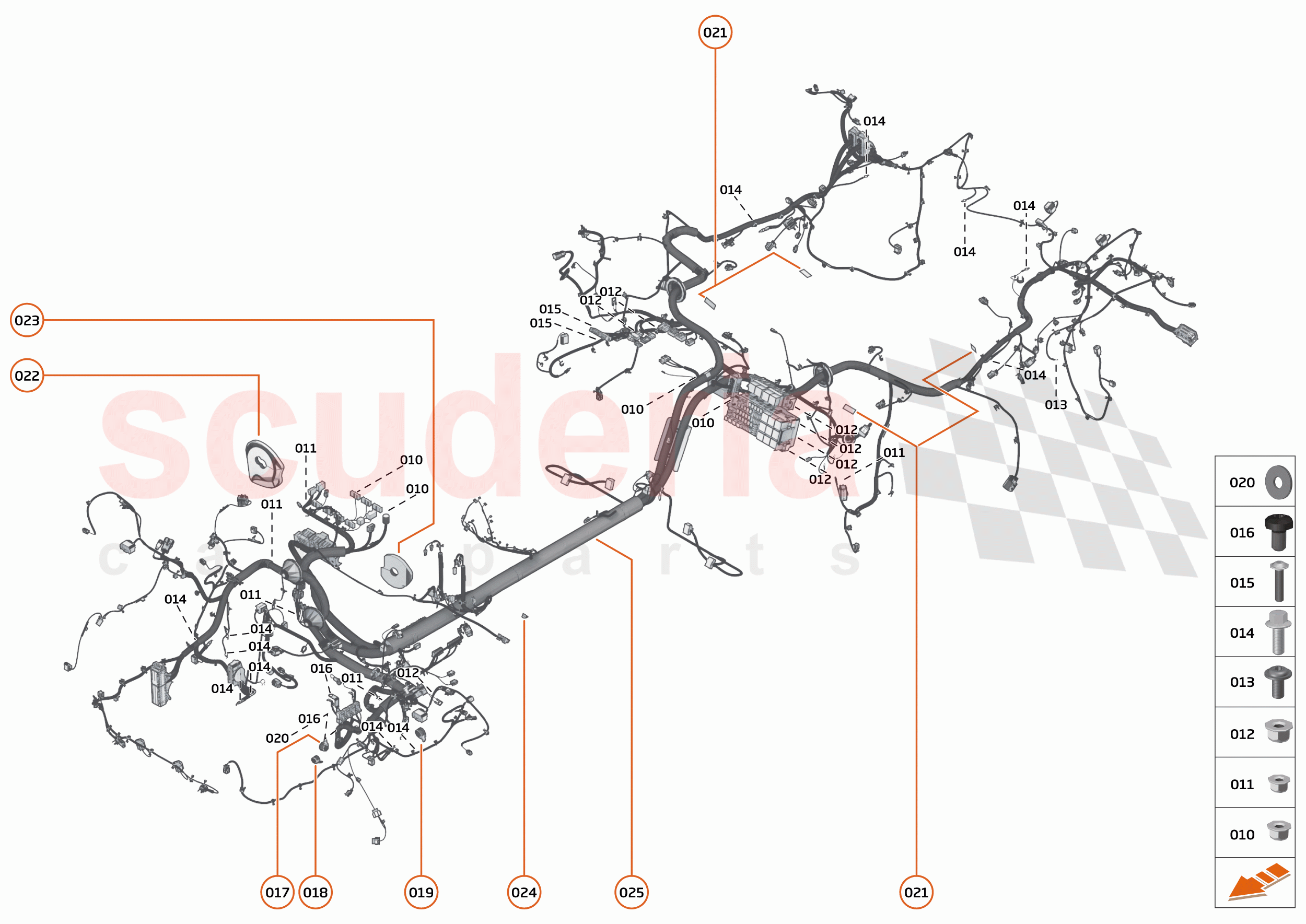

43 - WIRING HARNESS - 43.2 - BODY WIRING HARNESS of McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RB259
CAB TIE-EDGE-SIDE-1-3X45-NYL-BLK 		- 1
PE
 Enquire
010 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 4
PE
 Enquire
011 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
012 00RA582
NUT - M5 - HEX 		- 1
PE
 Enquire
012 00RA075
NUT - M8-8 - HEX 		- 8
PE
 Enquire
013 00RA458
BOLT - M6X10 - FLANGED 		- 1
PE
 Enquire
013 00RA179
SCREW - M6X10-10.9 - BUTTON 		- 1
PE
 Enquire
014 00RA313
SCREW - M6X16 - HEX - SILVER 		- 16
PE
 Enquire
015 00RA595
SCREW - BUTTON HEAD - TORX FLANGED - M3X16 		- 2
PE
 Enquire
016 00RA602
BOLT - M6X1X10 - TORX 		- 2
PE
 Enquire
017 00RB060
P CLIP - DIA 20 		- 1
PE
 Enquire
018 00RB097
P-CLIP - DIA 25 - M6 		- 1
PE
 Enquire
019 00RB100
P-CLIP - DIA 30 - M6 		- 1
PE
 Enquire
020 00RC008
WASHER - M6X12.5X0.9 		- 2
PE
 Enquire
021 00RL004
FELT TAPE 		- 4
PE
 Enquire
022 11M1285CP
NVH PAD - GROMMET - UPPER 		$40.26 1
TO
023 11M2530CP
NVH PAD - GROMMET - LOWER - RHD 		$17.10 1
TO
023 11M2517CP
NVH PAD - GROMMET - LOWER - LHD 		$16.19 1
TO
024 11A7405CP
CLIP - HARNESS 		$20.29 3
TO
025 28MA239CP
HARNESS BODY COUPE FED 12SP - CAM 		- 1
PE
 Enquire
025 28MA238CP
HARNESS BODY COUPE RHD 12SP - CAM 		- 1
PE
 Enquire
025 28MA237CP
HARNESS BODY COUPE LHD 12SP - CAM 		- 1
PE
 Enquire
025 28MA236CP
HARNESS BODY COUPE FED 4SP CAM 		- 1
PE
 Enquire
025 28MA235CP
HARNESS BODY COUPE RHD 4SP CAM 		- 1
PE
 Enquire
025 28MA234CP
HARNESS BODY COUPE LHD 4SP CAM 		- 1
PE
 Enquire
025 28MA190CP
HARNESS BODY COUPE FED 12SP 		- 1
PE
 Enquire
025 28MA189CP
HARNESS BODY COUPE RHD 12SP 		- 1
PE
 Enquire
025 28MA188CP
HARNESS BODY COUPE LHD 12SP 		- 1
PE
 Enquire
025 28MA199CP
HARNESS BODY COUPE FED 4SP 		- 1
PE
 Enquire
025 28MA198CP
HARNESS BODY COUPE RHD 04SP 		- 1
PE
 Enquire
025 28MA197CP
HARNESS BODY COUPE LHD 4SP 		- 1
PE
 Enquire
