20 - Suspension - Systems - 20.1 - Suspension Fluid Systems

McLaren 750S Coupe

Find Your Part

McLaren 750S Coupe - 20 - SUSPENSION - SYSTEMS - 20.1 - SUSPENSION FLUID SYSTEMS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

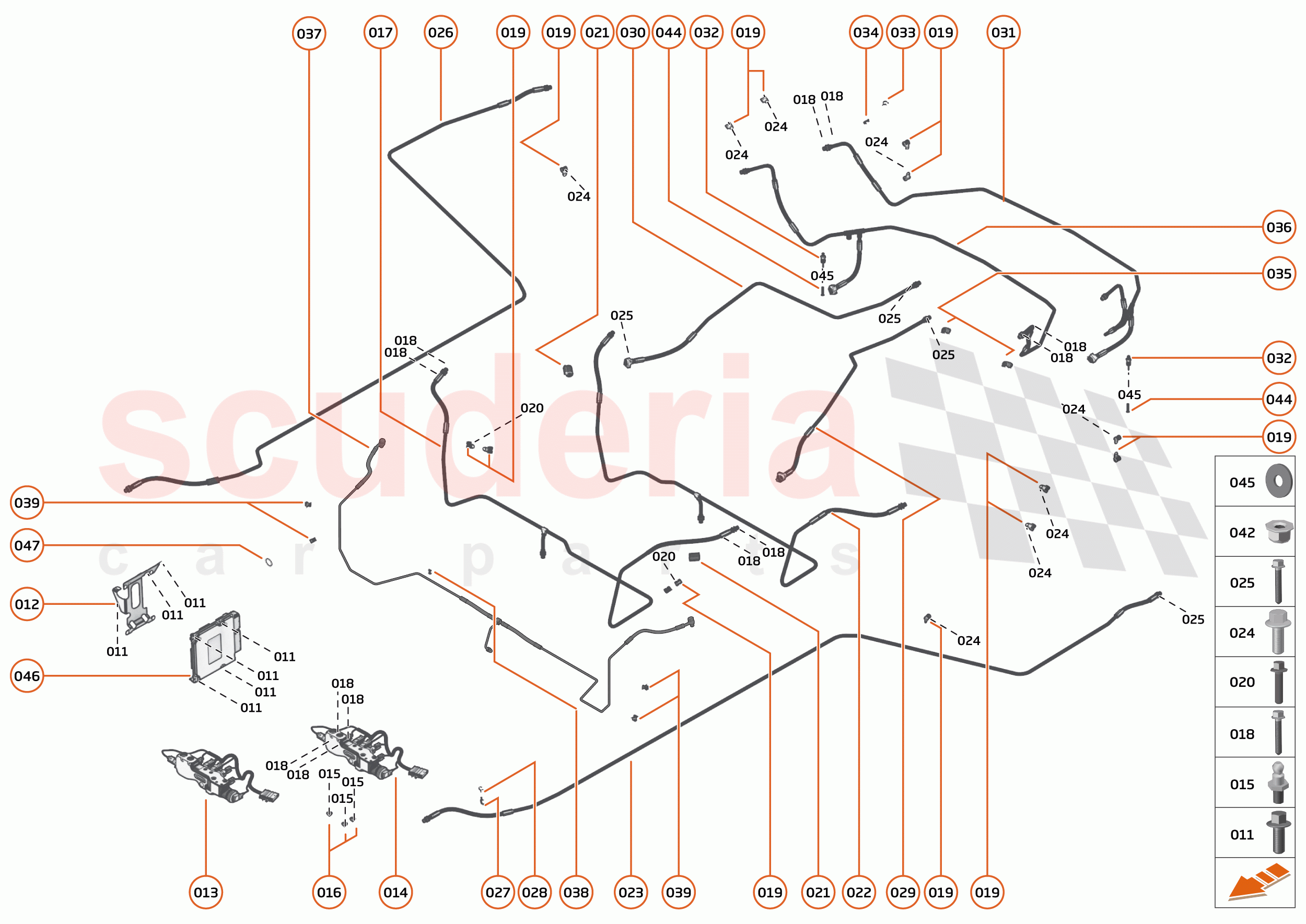

20 - SUSPENSION - SYSTEMS - 20.1 - SUSPENSION FLUID SYSTEMS of McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 14BA263CP
O-RING - VITON - BLACK - 224000NT 		$50.76 1
TO
011 00RA083
SCREW - M6X20 - FLANGE HEX 		- 7
PE
 Enquire
012 14B0060CP
CCU BRACKET 		$50.76 1
TO
013 14B0271CP
APMU - WITHOUT NOSELIFT 		$2,762.25 1
TO
014 28BA121CP
APMU-WITH-LIFT 		$2,498.22 1
TO
015 00RA585
STUD BALL - M6X9 		- 3
PE
 Enquire
016 00RB187
CLIP - SNAPLOC - 14X7 		- 3
PE
 Enquire
017 14B0671CP
PIPE - SUSPENSION FRONT - LATERAL - COMPRESSION 		$446.82 1
TO
018 00RA201
BOLT - M5X0.8X30 - HEX 		- 1
PE
 Enquire
019 00RB127
P-CLIP - 12/13 - EPDM 		- 1
PE
 Enquire
020 00RA120
SCREW - M6X25 - HEX 		- 1
PE
 Enquire
021 00RA366
PIPE PROTECTOR - 13MM ID 		- 1
PE
 Enquire
021 00RA357
PIPE PROTECTOR 		- 1
PE
 Enquire
022 14B0672CP
PIPE - SUSPENSION FRONT - LATERAL - REBOUND 		$446.82 1
TO
023 14B0512CP
PIPE-LONGI-TUNNEL-CIRCUIT 		$324.96 1
TO
024 00RA313
SCREW - M6X16 - HEX - SILVER 		- 1
PE
 Enquire
025 00RA235
BOLT - M5X35 - FLANGED - 8.8 		- 1
PE
 Enquire
026 14B0513CP
PIPE - SUSPENSION - LONGITUDINAL - REBOUND 		$324.96 1
TO
027 00RB032
CLIP - 13-14MM - FEMALE 		- 1
PE
 Enquire
028 00RB045
CLIP - 9.5-10MM - MALE 		- 1
PE
 Enquire
029 14B0680CP
PIPE - SUSPENSION REAR - LONGITUDINAL - COMPRESSION 		$304.64 1
TO
030 14B0681CP
PIPE - SUSPENSION REAR - LONGITUDINAL - REBOUND 		$304.64 1
TO
031 14B0676CP
PIPE - SUSPENSION REAR - LATERAL - COMPRESSION 		$588.99 1
TO
032 14BA142CP
SWAGELOK SS-QC4-D-400 		$223.40 1
TO
033 00RB018
CLIP - 11-13MM - MALE 		- 1
PE
 Enquire
034 00RB074
Swivel Clip - 11-13mm - Female 		- 1
PE
 Enquire
035 00RB142
PIPE CLIP - 12X12 		- 2
PE
 Enquire
036 14B0677CP
PIPE - SUSPENSION REAR - LATERAL - REBOUND 		$588.99 1
TO
037 28BA130CP
ASSY - HOSE-PIPE-LIFT-FR 		$223.40 1
TO
038 00RB134
DOUBLE PIPE CLIP IAC27 		- 1
PE
 Enquire
039 00RB180
CLIP - FIRTREE - 23.8X4 		- 2
PE
 Enquire
042 00RA055
NUT - M6 - LOCKING - HEX 		- 1
PE
 Enquire
044 12B0660CP
1-4IN QC STEM PROTECTOR - ZYTEL - SUSPENSION FILL CAP 		$3.84 1
TO
045 14BA240CP
WASHER - REAR ROLL - CIRCUIT - WASHER REAR ROLL CIRCUIT 		$4.65 1
TO
046 14MA986CP
CHASSIS CONTROL UNIT 		$3,967.87 1
TO
