McLaren 750S Coupe - 5 - UPPER STRUCTURES - 5.2 - REAR UPPER STRUCTURE

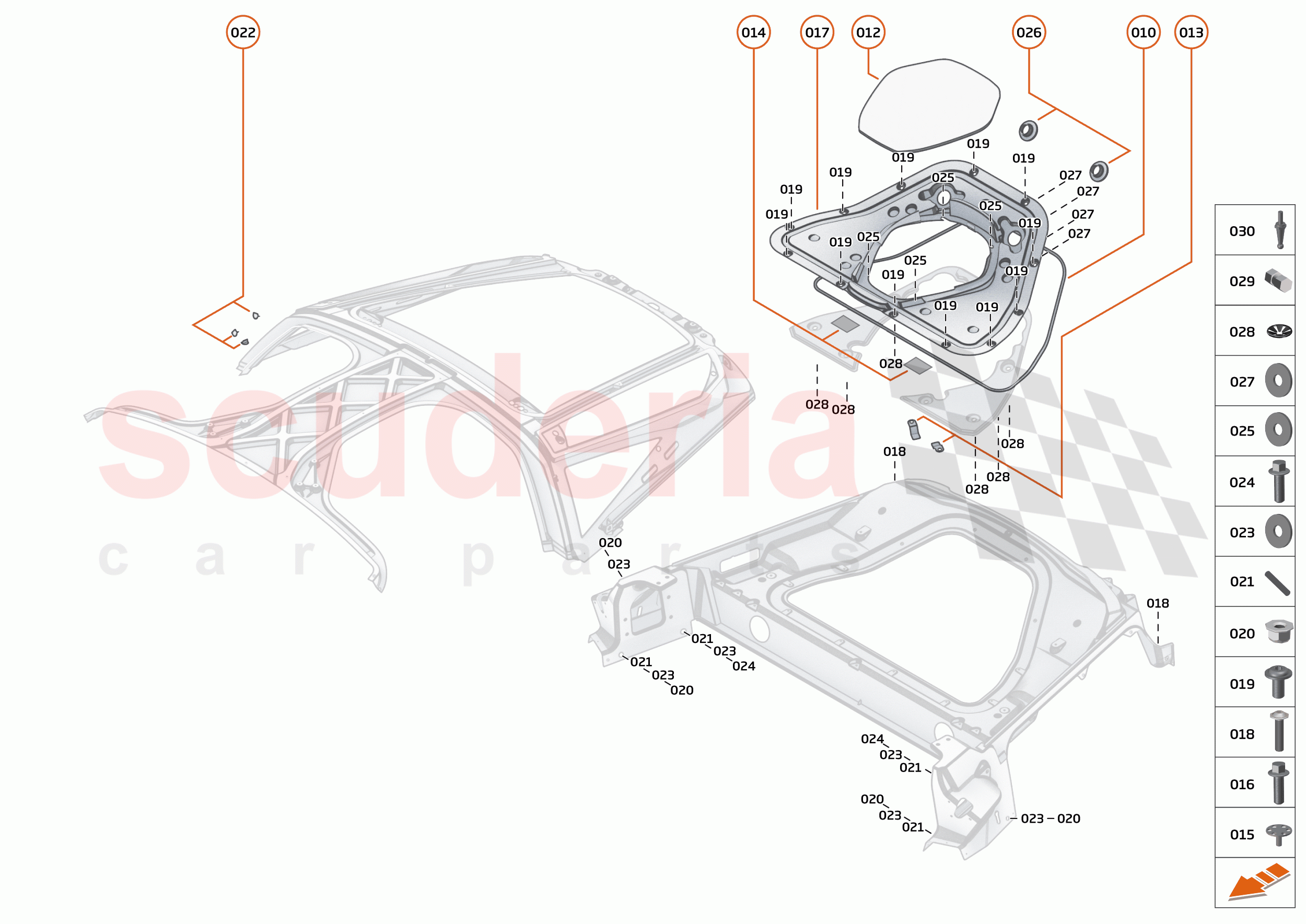

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AA333CP FOAM SEAL - SERVICE HATCH $16.22 To Order
Photo Part No Description Price (each) Stock
14AA182RP ASSY-SERVICE HATCH GLAZING $649.93 To Order
Photo Part No Description Price (each) Stock
14AB440RP BRKT-SERVICE HATCH 1 $30.44 To Order
Photo Part No Description Price (each) Stock
11A3464CP SPACER - BULKHEAD GLASS $8.10 To Order
Photo Part No Description Price (each) Stock
00RK005 STUD CIRCLE BASE M6X16-SS-00 Enquire To Order
Photo Part No Description Price (each) Stock
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
Photo Part No Description Price (each) Stock
28AA376CP SERVICE HATCH-GLAZING ASSY $8,428.99 To Order
14AC028RP SERVICE HATCH NON-GLAZING ASSY Enquire To Order
Photo Part No Description Price (each) Stock
00RA410 BOLT - BUTTON - FLANGE - M6X40 Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA242 STUD M8X1.25X35 Enquire To Order
Photo Part No Description Price (each) Stock
11A7405CP CLIP - HARNESS $20.29 To Order
Photo Part No Description Price (each) Stock
00RC104 Washer - M8x24x2 - Black Enquire To Order
Photo Part No Description Price (each) Stock
00RA606 BOLT - M8X1.25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14HA051RP GROMMET - ESG SYMPOSER $20.29 To Order
Photo Part No Description Price (each) Stock
00RC051 WASHER - M6X4.0MM Enquire To Order
Photo Part No Description Price (each) Stock
00RC039 WASHER - M6 - STAR LOCK Enquire To Order
Photo Part No Description Price (each) Stock
14A3890CP SMC COMOULDED HEXINSERT M6X9 $22.57 To Order
Photo Part No Description Price (each) Stock
00RA788 STUD-BALL-M6X12X28-8.8-ZNPC Enquire To Order
5 - UPPER STRUCTURES - 5.2 - REAR UPPER STRUCTURE of McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AA333CP
FOAM SEAL - SERVICE HATCH 		$16.22 1
TO
012 14AA182RP
ASSY-SERVICE HATCH GLAZING 		$649.93 1
TO
013 14AB440RP
BRKT-SERVICE HATCH 1 		$30.44 2
TO
014 11A3464CP
SPACER - BULKHEAD GLASS 		$8.10 2
TO
015 00RK005
STUD CIRCLE BASE M6X16-SS-00 		- 15
PE
 Enquire
016 00RA557
BOLT - HEX HEAD - M8X1.25X25 		- 3
PE
 Enquire
017 28AA376CP
SERVICE HATCH-GLAZING ASSY 		$8,428.99 1
TO
017 14AC028RP
SERVICE HATCH NON-GLAZING ASSY 		- 1
PE
 Enquire
018 00RA410
BOLT - BUTTON - FLANGE - M6X40 		- 2
PE
 Enquire
019 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 12
PE
 Enquire
020 00RA056
NUT - M8-8 - LOCK HEX 		- 4
PE
 Enquire
021 00RA242
STUD M8X1.25X35 		- 4
PE
 Enquire
022 11A7405CP
CLIP - HARNESS 		$20.29 3
TO
023 00RC104
Washer - M8x24x2 - Black 		- 6
PE
 Enquire
024 00RA606
BOLT - M8X1.25 - HEX 		- 2
PE
 Enquire
025 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
026 14HA051RP
GROMMET - ESG SYMPOSER 		$20.29 2
TO
027 00RC051
WASHER - M6X4.0MM 		- 4
PE
 Enquire
028 00RC039
WASHER - M6 - STAR LOCK 		- 5
PE
 Enquire
029 14A3890CP
SMC COMOULDED HEXINSERT M6X9 		$22.57 10
TO
030 00RA788
STUD-BALL-M6X12X28-8.8-ZNPC 		- 4
PE
 Enquire
