2 - Mid Structures - 2.1 - Monocoque

McLaren 750S Coupe

Find Your Part

McLaren 750S Coupe - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A5736CP PLUG - TUB DATUM $7.29 To Order
Photo Part No Description Price (each) Stock
00RA689 BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
11A7142CP BRACKET - DAMPER MOUNTING - LH $223.40 To Order
Photo Part No Description Price (each) Stock
11A7143CP BRACKET - DAMPER MOUNTING - RH $223.40 To Order
Photo Part No Description Price (each) Stock
11A5734CP BLANKING PLUG - CIRCULAR - 42MM $11.14 To Order
Photo Part No Description Price (each) Stock
11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM $11.14 To Order
Photo Part No Description Price (each) Stock
11A7572CP NUT PLATE - A-POST - M8 $50.76 To Order
Photo Part No Description Price (each) Stock
11A7573CP NUT PLATE - B-POST - M8 $50.76 To Order
Photo Part No Description Price (each) Stock
00RA535 BOLT - M10X1.5X55 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14AA376MP ASSY HARNESS BAR $16,154.73 To Order
Photo Part No Description Price (each) Stock
14AA036MP BLT-HXHD-FL-M10X1.5X50-10.9-72 $65.98 To Order
Photo Part No Description Price (each) Stock
14AA040MP ROLL HOOP-CONDUCTIVITY-LINK LH $152.32 To Order
Photo Part No Description Price (each) Stock
14AA041MP ROLL HOOP-CONDUCTIVITY-LINK RH $152.32 To Order
Photo Part No Description Price (each) Stock
15AD019CP TUB - BLACK DECAL - 120MM X 62MM $5.21 To Order
Photo Part No Description Price (each) Stock
14AA042MP ROLL HOOP-WASHER PLATE $111.69 To Order
Photo Part No Description Price (each) Stock
14A3890CP SMC COMOULDED HEXINSERT M6X9 $22.57 To Order

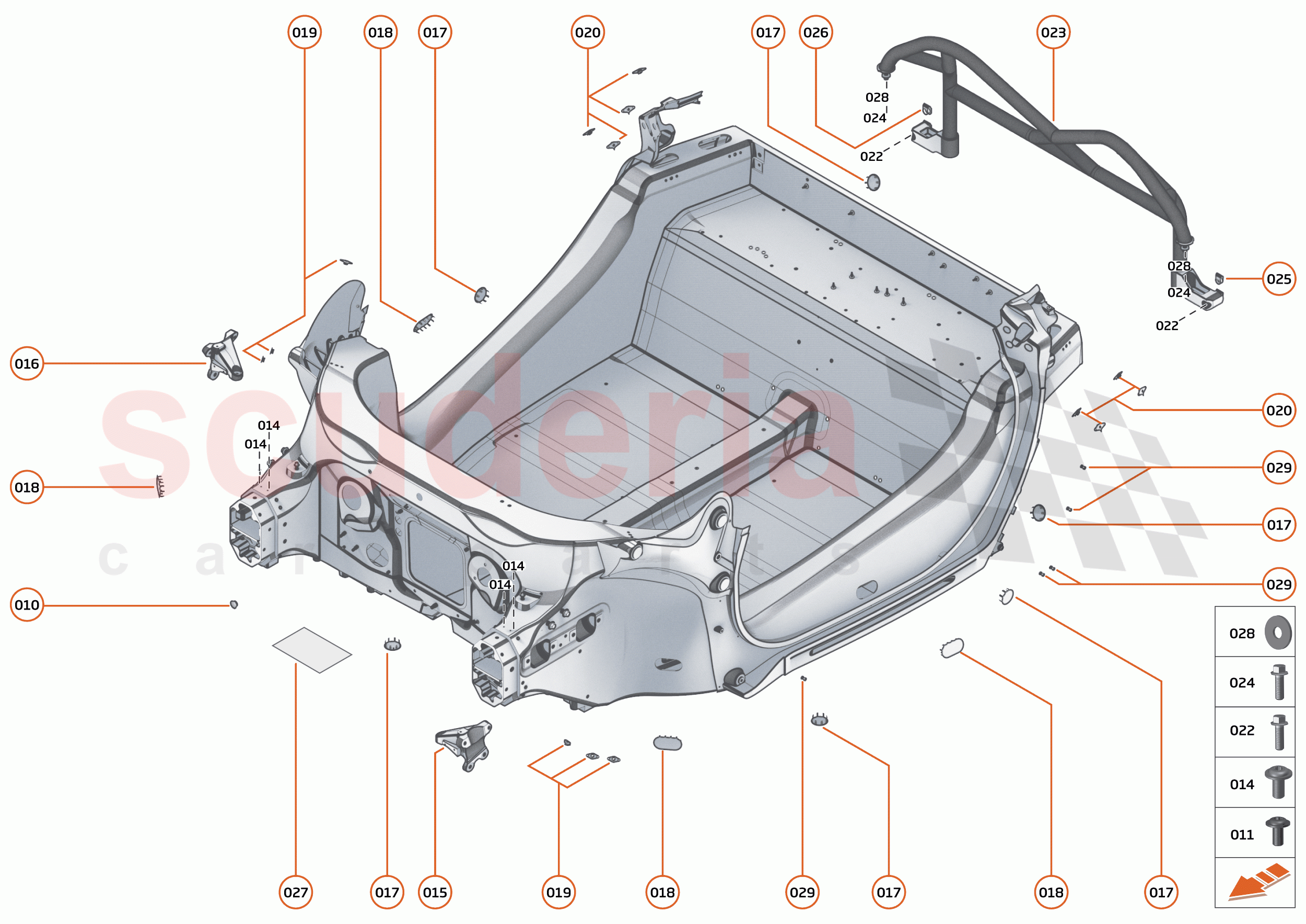

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A5736CP
PLUG - TUB DATUM 		$7.29 4
TO
011 00RA689
BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX 		- 3
PE
 Enquire
014 00RA522
BOLT - BUTTON HEAD - TORX - M5X16 		- 2
PE
 Enquire
015 11A7142CP
BRACKET - DAMPER MOUNTING - LH 		$223.40 1
TO
016 11A7143CP
BRACKET - DAMPER MOUNTING - RH 		$223.40 1
TO
017 11A5734CP
BLANKING PLUG - CIRCULAR - 42MM 		$11.14 6
TO
018 11A5735CP
BLANKING PLUG - OVAL - 74MM X 37MM 		$11.14 4
TO
019 11A7572CP
NUT PLATE - A-POST - M8 		$50.76 2
TO
020 11A7573CP
NUT PLATE - B-POST - M8 		$50.76 6
TO
022 00RA535
BOLT - M10X1.5X55 - HEX 		- 2
PE
 Enquire
023 14AA376MP
ASSY HARNESS BAR 		$16,154.73 1
TO
024 14AA036MP
BLT-HXHD-FL-M10X1.5X50-10.9-72 		$65.98 2
TO
025 14AA040MP
ROLL HOOP-CONDUCTIVITY-LINK LH 		$152.32 1
TO
026 14AA041MP
ROLL HOOP-CONDUCTIVITY-LINK RH 		$152.32 1
TO
027 15AD019CP
TUB - BLACK DECAL - 120MM X 62MM 		$5.21 4
TO
028 14AA042MP
ROLL HOOP-WASHER PLATE 		$111.69 2
TO
029 14A3890CP
SMC COMOULDED HEXINSERT M6X9 		$22.57 5
TO
