7 - Closures - 7.6 - Door Hinge

McLaren 750S Coupe

Find Your Part

McLaren 750S Coupe - 7 - CLOSURES - 7.6 - DOOR HINGE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AD319CP HINGE - DOOR - LOWER COUPE - LH $1,188.33 To Order
14AD321CP HINGE - DOOR - LOWER COUPE - RH $1,188.33 To Order
Photo Part No Description Price (each) Stock
00RA485 BOLT - HEX HEAD - FLANGED - M8X25 Enquire To Order
Photo Part No Description Price (each) Stock
00RC048 WASHER - FORM C - 21X1.6 - M8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA590 BOLT - HEX HEAD - FLANGED - M10X35 Enquire To Order
Photo Part No Description Price (each) Stock
00RA616 BOLT - M10X1.5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC034 WASHER - PLAIN - M12X28X2.7 Enquire To Order
Photo Part No Description Price (each) Stock
14AC854CP GAS STRUT - DOOR - LOWER $192.93 To Order
Photo Part No Description Price (each) Stock
16AE949CP DOOR BALL STUD $11.14 To Order
Photo Part No Description Price (each) Stock
14AA600CP CLIP - SAFETY LOCKING - GAS STRUT - DOOR $1.49 To Order
Photo Part No Description Price (each) Stock
14A3742CP GROMMET - GAS STRUT - RH $45.68 To Order
14A3741CP GROMMET - GAS STRUT - LH $45.68 To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA601 SCREW - M6X1X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB012 CLIP - 2MM - TRIM PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RA427 Starlock - Diameter 6mm Shaft - 8024 Enquire To Order
Photo Part No Description Price (each) Stock
14AD317CP HINGE - DOOR - UPPER COUPE - LH $1,188.33 To Order
14AD318CP HINGE - DOOR - UPPER COUPE - RH $1,188.33 To Order
Photo Part No Description Price (each) Stock
00RA483 SCREW - BUTTON HEAD - TORX - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
00RA600 SCREW - HEX HEAD - M6X1X20-8.8-78 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14AB924CP WASHER - M6X18X3 $3.23 To Order
Photo Part No Description Price (each) Stock
13AA448CP SHIM - DOOR HINGE - UPPER OUTBOARD - 0.6MM $25.37 To Order
13AA451CP SHIM - DOOR HINGE - UPPER OUTBOARD - 1.0MM $25.37 To Order
Photo Part No Description Price (each) Stock
14AC432CP BRACKET - DATUM DOOR - 2MM - BRKT DATUM DOOR 2MM $40.60 To Order
14AC433CP BRACKET - DATUM DOOR - 1MM - BRKT DATUM DOOR 1MM $30.44 To Order
14AC434CP BRACKET - DATUM DOOR - 0.5MM - BRKT DATUM DOOR 0.5MM $16.22 To Order

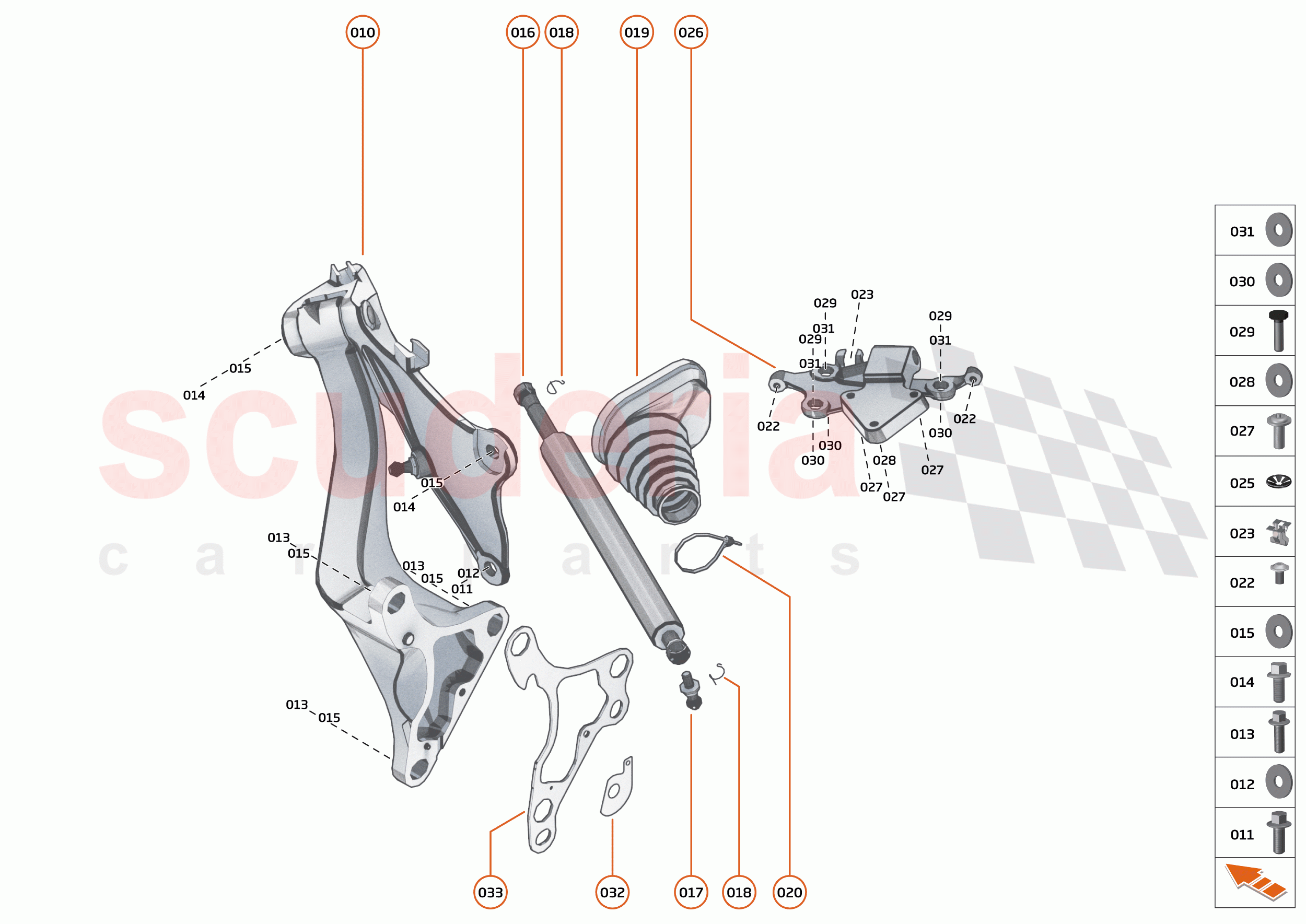

7 - CLOSURES - 7.6 - DOOR HINGE of McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA457
SCREW - M10X30-10.9 - HEX 		- 1
PE
 Enquire
010 14AD319CP
HINGE - DOOR - LOWER COUPE - LH 		$1,188.33 1
TO
010 14AD321CP
HINGE - DOOR - LOWER COUPE - RH 		$1,188.33 1
TO
011 00RA485
BOLT - HEX HEAD - FLANGED - M8X25 		- 1
PE
 Enquire
012 00RC048
WASHER - FORM C - 21X1.6 - M8 		- 1
PE
 Enquire
013 00RA590
BOLT - HEX HEAD - FLANGED - M10X35 		- 3
PE
 Enquire
014 00RA616
BOLT - M10X1.5 - HEX 		- 2
PE
 Enquire
015 00RC034
WASHER - PLAIN - M12X28X2.7 		- 5
PE
 Enquire
016 14AC854CP
GAS STRUT - DOOR - LOWER 		$192.93 1
TO
017 16AE949CP
DOOR BALL STUD 		$11.14 1
TO
018 14AA600CP
CLIP - SAFETY LOCKING - GAS STRUT - DOOR 		$1.49 1
TO
019 14A3742CP
GROMMET - GAS STRUT - RH 		$45.68 1
TO
019 14A3741CP
GROMMET - GAS STRUT - LH 		$45.68 1
TO
020 00RL012
CABLE TIE - 300X4.6MM 		- 1
PE
 Enquire
022 00RA601
SCREW - M6X1X12 		- 2
PE
 Enquire
023 00RB012
CLIP - 2MM - TRIM PANEL 		- 1
PE
 Enquire
025 00RA427
Starlock - Diameter 6mm Shaft - 8024 		- 2
PE
 Enquire
026 14AD317CP
HINGE - DOOR - UPPER COUPE - LH 		$1,188.33 1
TO
026 14AD318CP
HINGE - DOOR - UPPER COUPE - RH 		$1,188.33 1
TO
027 00RA483
SCREW - BUTTON HEAD - TORX - M6X16 		- 3
PE
 Enquire
028 00RC028
WASHER - M6 FORM C 		- 1
PE
 Enquire
029 00RA600
SCREW - HEX HEAD - M6X1X20-8.8-78 		- 3
PE
 Enquire
030 00RC064
WASHER - M6X18X1.6 - BLACK 		- 3
PE
 Enquire
031 14AB924CP
WASHER - M6X18X3 		$3.23 3
TO
032 13AA448CP
SHIM - DOOR HINGE - UPPER OUTBOARD - 0.6MM 		$25.37 1
TO
032 13AA451CP
SHIM - DOOR HINGE - UPPER OUTBOARD - 1.0MM 		$25.37 1
TO
033 14AC432CP
BRACKET - DATUM DOOR - 2MM - BRKT DATUM DOOR 2MM 		$40.60 1
TO
033 14AC433CP
BRACKET - DATUM DOOR - 1MM - BRKT DATUM DOOR 1MM 		$30.44 1
TO
033 14AC434CP
BRACKET - DATUM DOOR - 0.5MM - BRKT DATUM DOOR 0.5MM 		$16.22 1
TO
