47 - Interior Systems - 47.8 - Seat Assembly - Electric

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 47 - INTERIOR SYSTEMS - 47.8 - SEAT ASSEMBLY - ELECTRIC

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA325 SCREW - M8X20 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
14NB365CP ASSY-SEAT-ELECTRIC-RHD-PASSENGER-CF Enquire To Order
14NB357CP ASSY-SEAT-ELECTRIC-RHD-PASSENGER-STD Enquire To Order
14NA984CP ASSY-SEAT-ELECTRIC-LHD-DRIVER-CF Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14NB364CP ASSY-SEAT-ELECTRIC- LHD-PASSENGER-CF Enquire To Order
14NB356CP ASSY-SEAT-ELECTRIC- LHD-PASSENGER-STD Enquire To Order
14NA986CP ASSY-SEAT-ELECTRIC-RHD-DRIVER-CF Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13NA028CP SEAT ECU MODULE $684.79 To Order

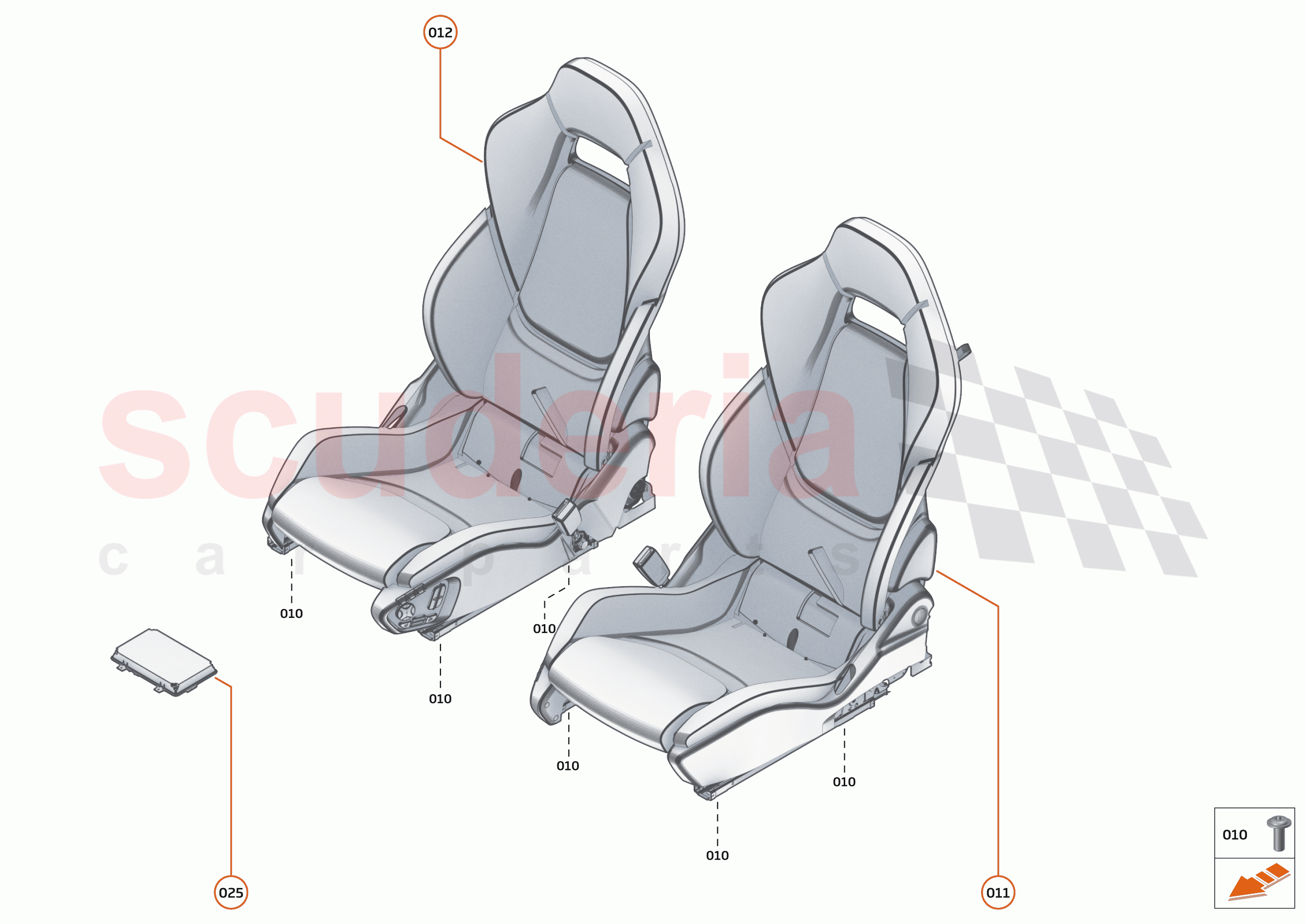

47 - INTERIOR SYSTEMS - 47.8 - SEAT ASSEMBLY - ELECTRIC of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA325
SCREW - M8X20 - BUTTON 		- 4
PE
 Enquire
011 14NB365CP
ASSY-SEAT-ELECTRIC-RHD-PASSENGER-CF 		- 1
PE
 Enquire
011 14NB357CP
ASSY-SEAT-ELECTRIC-RHD-PASSENGER-STD 		- 1
PE
 Enquire
011 14NA984CP
ASSY-SEAT-ELECTRIC-LHD-DRIVER-CF 		- 1
PE
 Enquire
011 14NA976CP
ASSY-SEAT-ELECTRIC- LHD-DRIVER-STD 		- 1
PE
 Enquire
012 14NB364CP
ASSY-SEAT-ELECTRIC- LHD-PASSENGER-CF 		- 1
PE
 Enquire
012 14NB356CP
ASSY-SEAT-ELECTRIC- LHD-PASSENGER-STD 		- 1
PE
 Enquire
012 14NA986CP
ASSY-SEAT-ELECTRIC-RHD-DRIVER-CF 		- 1
PE
 Enquire
012 14NA978CP
ASSY-SEAT-ELECTRIC-RHD-DRIVER-STD 		- 1
PE
 Enquire
014 13NA025CP
Pad - Heater - Backrest 		$191.32 2
TO
015 13NA026CP
Pad - Heater - Cushion 		$241.69 2
TO
016 13NA027CP
Fixing Kit - Seat - ECU - Switchpack 		$100.68 4
TO
017 13NA032CP
Assy - Lumbar Adjuster 		$1,188.33 2
TO
018 13NA038CP
Switch Pack - Driver - Andesite - RHD 		$1,188.33 1
TO
018 13NA037CP
Switch Pack - Driver - Andesite - LHD 		$1,069.07 1
TO
019 13NA041CP
Switch Pack - Passenger - Andesite - LHD 		$1,069.07 1
TO
020 13NA042CP
Switch Pack - Passenger - Andesite - RHD 		$1,208.49 1
TO
021 13NA045CP
Side Valance - Outboard - Full Electric - LH - Andesite 		$1,208.49 1
TO
022 13NA046CP
Side Valance - Outboard - Full Electric - RH - Andesite 		$1,168.20 1
TO
023 13NA049CP
Side Valance - Inboard - Full Electric - LH - Andesite 		$1,208.49 1
TO
024 13NA050CP
Side Valance - Inboard - Full Electric - RH - Andesite 		$1,188.33 1
TO
025 13NA028CP
SEAT ECU MODULE 		$684.79 2
TO
