17 - Suspension - Front - 17.3 - Transverse Links Front

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 17 - SUSPENSION - FRONT - 17.3 - TRANSVERSE LINKS FRONT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14BA262CP WISHBONE - UPPER - FRONT - RH $1,540.23 To Order
14B0524CP WISHBONE - UPPER - FRONT - LH $622.51 To Order
Photo Part No Description Price (each) Stock
00RX053 BOLT - WISHBONE - M10X1.5X35 Enquire To Order
Photo Part No Description Price (each) Stock
14BA135CP SPACER - WISHBONE $25.37 To Order
Photo Part No Description Price (each) Stock
14B0718CP WISHBONE - LOWER - FRONT - RH $1,848.27 To Order
14B0712CP WISHBONE - LOWER - FRONT - LH $1,848.27 To Order
Photo Part No Description Price (each) Stock
11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.71 To Order
Photo Part No Description Price (each) Stock
14BA006CP BRACKET - DISPLACEMENT SENSOR - FRONT - RH $30.44 To Order
14BA004CP BRACKET - DISPLACEMENT SENSOR - FRONT - LH $30.44 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
13B0681CP SENSOR - DISPLACEMENT $121.84 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL $35.54 To Order
Photo Part No Description Price (each) Stock
14B0545CP BALL STUD - DISPLACEMENT SENSOR $12.17 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B1552CP Ball Joint - Gaiter - Kit $50.34 To Order
Photo Part No Description Price (each) Stock
14BA039CP BALL JOINT - GAITER - LOWER - KIT $4.21 To Order
Photo Part No Description Price (each) Stock
11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID $50.76 To Order

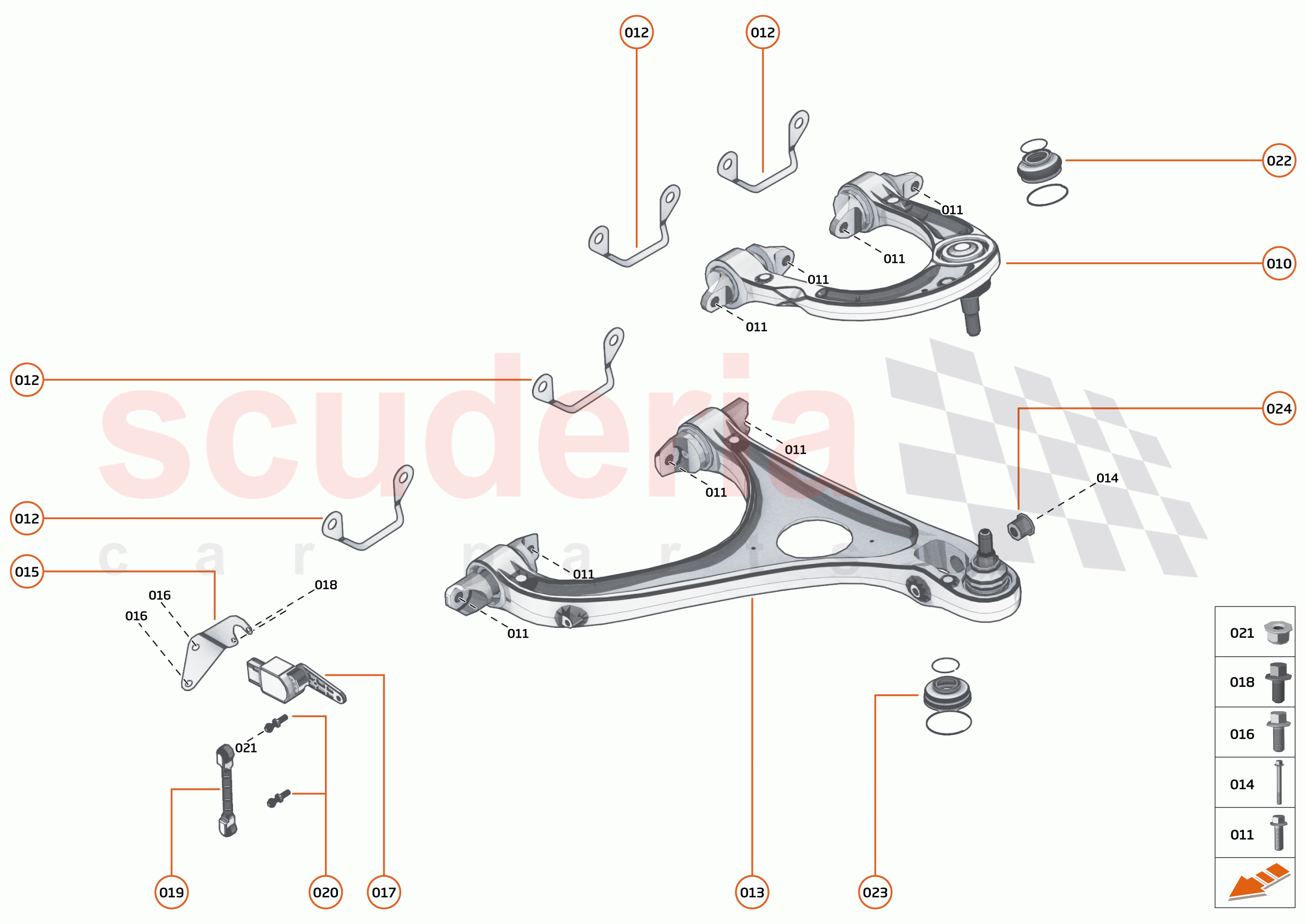

17 - SUSPENSION - FRONT - 17.3 - TRANSVERSE LINKS FRONT of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14BA262CP
WISHBONE - UPPER - FRONT - RH 		$1,540.23 1
TO
010 14B0524CP
WISHBONE - UPPER - FRONT - LH 		$622.51 1
TO
011 00RX053
BOLT - WISHBONE - M10X1.5X35 		- 1
PE
 Enquire
012 14BA135CP
SPACER - WISHBONE 		$25.37 2
TO
013 14B0718CP
WISHBONE - LOWER - FRONT - RH 		$1,848.27 1
TO
013 14B0712CP
WISHBONE - LOWER - FRONT - LH 		$1,848.27 1
TO
014 11B1314CP
BOLT - M10X70 - DAMPER MOUNTING - LOWER 		$8.71 1
TO
015 14BA006CP
BRACKET - DISPLACEMENT SENSOR - FRONT - RH 		$30.44 1
TO
015 14BA004CP
BRACKET - DISPLACEMENT SENSOR - FRONT - LH 		$30.44 1
TO
016 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4
PE
 Enquire
017 13B0681CP
SENSOR - DISPLACEMENT 		$121.84 1
TO
018 00RA087
SCREW - M5X10 - HEX 		- 2
PE
 Enquire
019 14B0494CP
BALL SCKT SENSOR DISPLACEMENT - GIMBAL 		$35.54 1
TO
020 14B0545CP
BALL STUD - DISPLACEMENT SENSOR 		$12.17 2
TO
021 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
022 11B1552CP
Ball Joint - Gaiter - Kit 		$50.34 2
TO
023 14BA039CP
BALL JOINT - GAITER - LOWER - KIT 		$4.21 2
TO
024 11B0800CP
Tophat - Spacer - Diameter 20 - 10.2 ID 		$50.76 1
TO
025 14BA246CP
WISHBONE BUSH 		$162.46 1
TO
026 14BA255CP
WISHBONE BUSH - 3.5MM 		$162.46 1
TO
