McLaren 720S Coupe - 45 - WIRING HARNESS - 45.1 - POWER & GROUND DISTRIBUTION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11M0227CP BATTERY CABLE - NEGATIVE $151.05 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14MA024CP FUSEBOX - BATTERY - FRONT $382.67 To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
11M1124CP BUSBAR - RHD 24 $1,712.02 To Order
11M0926CP BUSBAR - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RA262 HALF NUT - M8 - DIN 439 Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
11M0186CP WIRING HARNESS GND24OOP-RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA344 SCREW - HEX - FLANGE - M8X16 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
11M0185CP WIRING HARNESS GND24OOP-LH Enquire To Order
Photo Part No Description Price (each) Stock
14MA628CP WIRING HARNESS - STARTER MOTOR - INC. CARRIER $1,289.04 To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
11M0743CP BUSBAR RETENTION PLATE $60.42 To Order
Photo Part No Description Price (each) Stock
11M0779CP BUSBAR RETENTION PLATE AFT - REAR $30.20 To Order
Photo Part No Description Price (each) Stock
13MA183CP ENGINE GROUND STRAP $261.81 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order

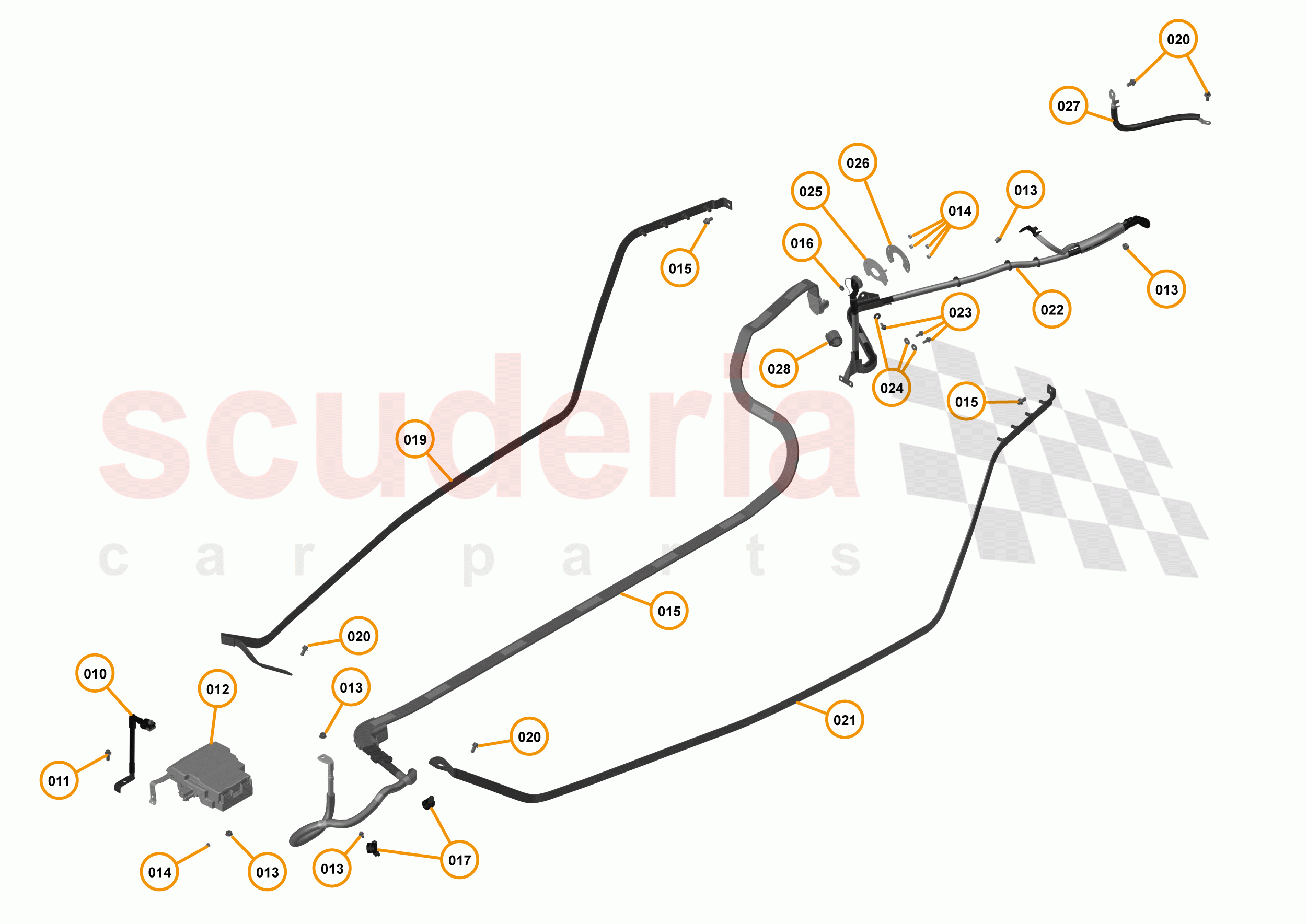

45 - WIRING HARNESS - 45.1 - POWER & GROUND DISTRIBUTION of McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11M0227CP
BATTERY CABLE - NEGATIVE 		$151.05 1
TO
011 00RA002
BOLT - M8X20 - HEX 		- 1
PE
 Enquire
012 14MA024CP
FUSEBOX - BATTERY - FRONT 		$382.67 1
TO
013 00RA075
NUT - M8-8 - HEX 		- 4
PE
 Enquire
014 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 6
PE
 Enquire
015 11M1124CP
BUSBAR - RHD 24 		$1,712.02 1
TO
015 11M0926CP
BUSBAR - LHD 		- 1
PE
 Enquire
016 00RA262
HALF NUT - M8 - DIN 439 		- 1
PE
 Enquire
017 00RB060
P CLIP - DIA 20 		- 2
PE
 Enquire
018 00RX003
BOLT - M6X1X12 - HEX 		- 1
PE
 Enquire
019 11M0186CP
WIRING HARNESS GND24OOP-RH 		- 1
PE
 Enquire
020 00RA344
SCREW - HEX - FLANGE - M8X16 - 8.8 		- 6
PE
 Enquire
021 11M0185CP
WIRING HARNESS GND24OOP-LH 		- 1
PE
 Enquire
022 14MA628CP
WIRING HARNESS - STARTER MOTOR - INC. CARRIER 		$1,289.04 1
TO
023 00RA556
BOLT - HEX - FLANGED - M6X16
Superseded parts: 00RA313; 		- 3
PE
 Enquire
024 00RC013
WASHER - M6X18X1.6 		- 3
PE
 Enquire
025 11M0743CP
BUSBAR RETENTION PLATE 		$60.42 1
TO
026 11M0779CP
BUSBAR RETENTION PLATE AFT - REAR 		$30.20 1
TO
027 13MA183CP
ENGINE GROUND STRAP 		$261.81 1
TO
028 00RA367
PIPE PROTECTOR - 19MM ID 		- 1
PE
 Enquire
