38 - Transmission - 38.1 - Transmission

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 38 - TRANSMISSION - 38.1 - TRANSMISSION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

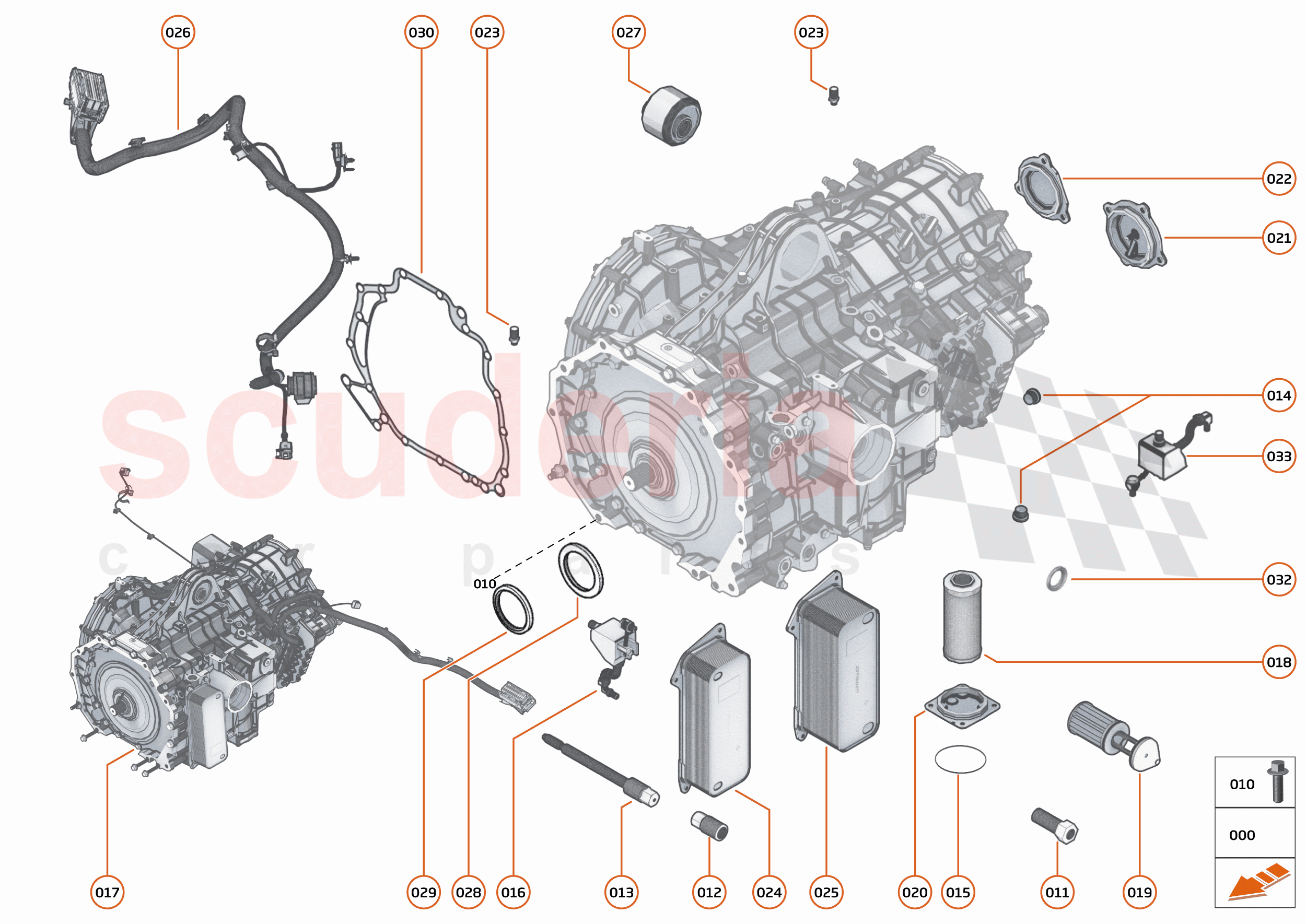

38 - TRANSMISSION - 38.1 - TRANSMISSION of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11SA022CP
INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE 		$124.38 1
TO
000 11Q0765CP
OIL - CLUTCH - PENTOSIN FFL4 - 1 LITRE 		$29.80 7
TO
000 11GA003CP
PLUG SERVICE KIT - DUAL CLUTCH TRANSMISSION 		$121.84 1
TO
010 00RA202
BOLT - M10X1.5 - HEX 		- 3
PE
 Enquire
011 11G0089CP
SCREW ADJUSTER - TRANSMISSION 		$74.95 1
TO
012 11G0090CP
NUT - SCREW ADJUSTER - TRANSMISSION 		$79.96 1
TO
013 11G0092CP
SHOULDER BOLT-HEX HD-M14 - 16 X 123 - BOLT- SCREW ADJUSTER - TRANSMISSION 		$189.92 1
TO
014 11G0156CP
Fill-Drain Plug - Trans/Clutch - inc. Washer 		$40.60 3
TO
015 11G0166CP
CLUTCH FILTER ACCESS COVER O-RING
IN STOCK 		$4.44 1
IN
016 14GA022CP
CLUTCH BREATHER TANK DCT 		$404.57 1
TO
017 14GA011CP
DUAL CLUTCH TRANSMISSION
Superseded parts: ASSY; 		$32,789.32 1
TO
018 11G0017CP
FILTER-CLUTCH FLUID
IN STOCK 		$98.61 1
IN
019 11G0018CP
FILTER-TRANSMISSION OIL
IN STOCK 		$172.62 1
IN
020 11G0019CP
Access Cover - Filter - Clutch Fluid 		$162.46 1
TO
021 11G0113CP
BEARING COVER-PRIM24Y SHAFT 		$223.40 1
TO
022 11G0122CP
BEARING COVER-SECO24ARY SHAFT 		$223.40 2
TO
023 11G0171CP
Breather - Transmission 		$40.60 1
TO
024 13G0055CP
Oil Cooler - Clutch 		$385.87 1
TO
025 13G0060CP
OIL COOLER-TRANSMI24ION 		$385.87 1
TO
026 14G0059CP
HARNESS - TRANSMISSION 		$5,136.09 1
TO
027 14GA005CP
MOUNT - TRANSMISSION 		$385.87 1
TO
028 11G0163CP
OUTPUT SHAFT SEAL-LH
IN STOCK 		$76.15 1
IN
029 11G0164CP
Seal - Driveshaft Output - RH 		$76.15 1
TO
030 12G0283CP
GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY 		$385.87 1
TO
032 11G0165CP
Seal - Input Shaft - Transmission 		$76.15 1
TO
033 14GA025CP
CLUTCH BREATHER TANK DCT 		$446.82 1
TO
