37 - Engine Mounting - 37.1 - Engine Mounting System

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 37 - ENGINE MOUNTING - 37.1 - ENGINE MOUNTING SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA005 NUT - M12 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC061 WASHER - M12X40X2 Enquire To Order
Photo Part No Description Price (each) Stock
11F0618CP BRACKET - SUPPORT - ENGINE LINK $86.29 To Order
Photo Part No Description Price (each) Stock
11F0619CP ENGINE LINK MOUNT-SUPPORT $45.68 To Order
Photo Part No Description Price (each) Stock
11F2680CP SPACER BUSH-ENGINE $111.69 To Order
Photo Part No Description Price (each) Stock
14FA290CP SPACER ENGINE MOUNT LOCATOR Enquire To Order
Photo Part No Description Price (each) Stock
14FA047CP MOUNT - ENGINE LINK $284.34 To Order
Photo Part No Description Price (each) Stock
14FA048CP MOUNT - ENGINE LINK - LATERAL $284.34 To Order

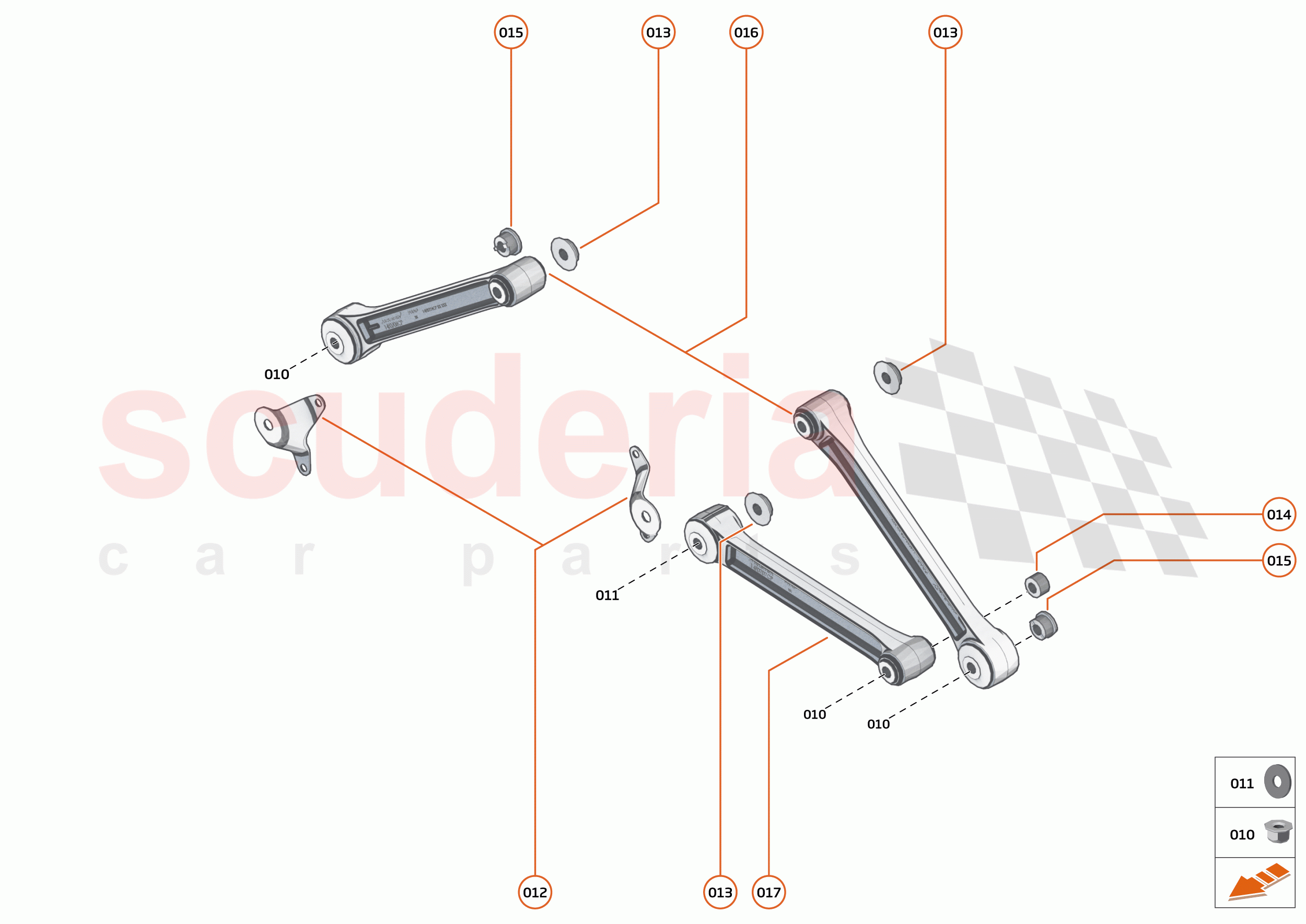

37 - ENGINE MOUNTING - 37.1 - ENGINE MOUNTING SYSTEM of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA005
NUT - M12 - LOCK HEX 		- 3
PE
 Enquire
011 00RC061
WASHER - M12X40X2 		- 1
PE
 Enquire
012 11F0618CP
BRACKET - SUPPORT - ENGINE LINK 		$86.29 2
TO
013 11F0619CP
ENGINE LINK MOUNT-SUPPORT 		$45.68 3
TO
014 11F2680CP
SPACER BUSH-ENGINE 		$111.69 1
TO
015 14FA290CP
SPACER ENGINE MOUNT LOCATOR 		- 2
PE
 Enquire
016 14FA047CP
MOUNT - ENGINE LINK 		$284.34 2
TO
017 14FA048CP
MOUNT - ENGINE LINK - LATERAL 		$284.34 1
TO
