36 - Engine Ancilliaries - 36.2 - Alternator

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 36 - ENGINE ANCILLIARIES - 36.2 - ALTERNATOR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F0807CP Bolt Set - Engine - Alternator Mounting $50.76 To Order
Photo Part No Description Price (each) Stock
11F0389CP Coupling - Alternator - Engine $71.07 To Order
Photo Part No Description Price (each) Stock
11F1869CP ALTERNATOR - ENGINE $1,726.40 To Order
Photo Part No Description Price (each) Stock
11F1875CP BRACKET - ALTERNATOR - UPPER $86.29 To Order
Photo Part No Description Price (each) Stock
11F1794CP SCREW - M6X25 HEX $8.10 To Order
Photo Part No Description Price (each) Stock
11F1877CP BRACKET - ALTERNATOR - LOWER $86.29 To Order

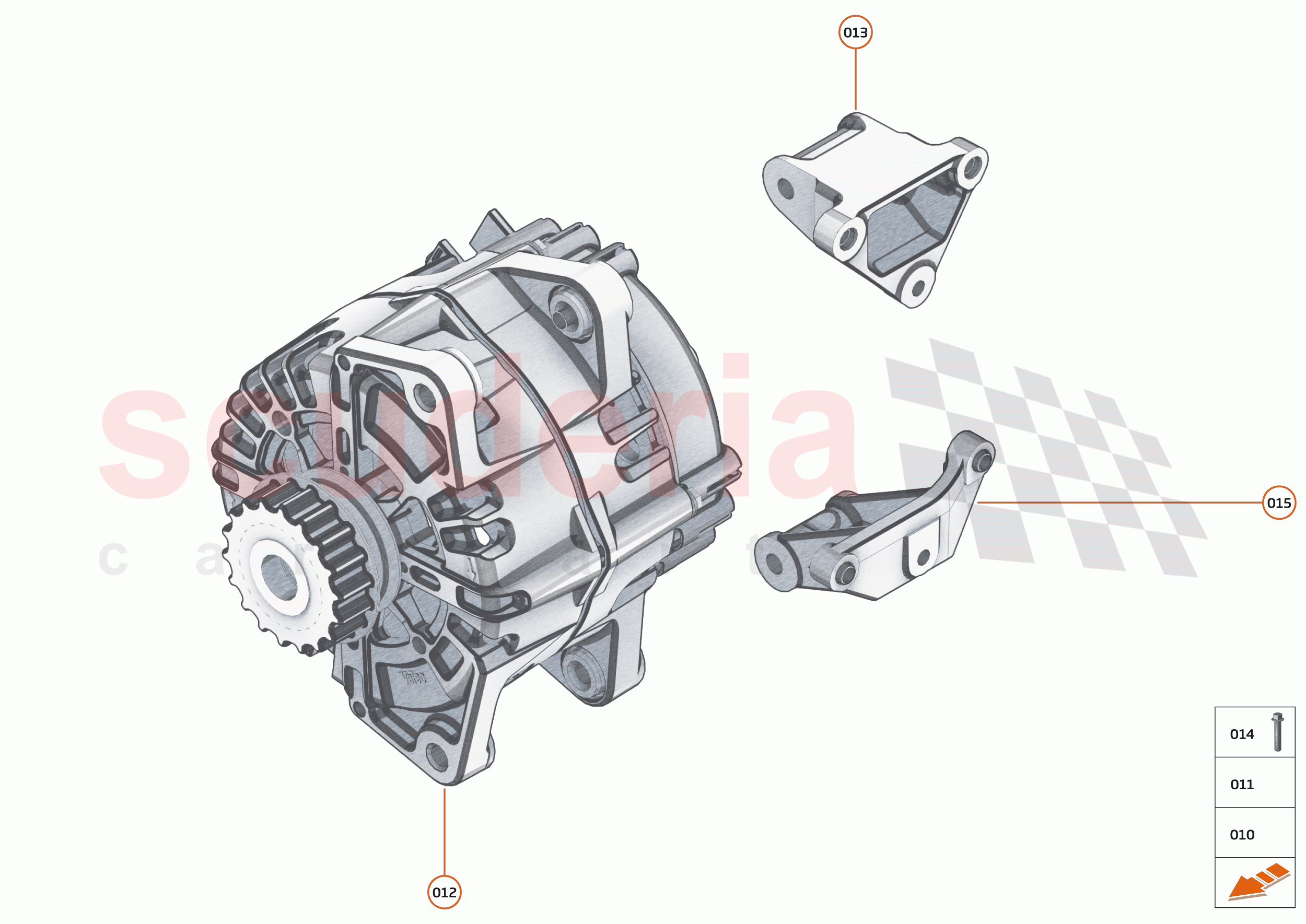

36 - ENGINE ANCILLIARIES - 36.2 - ALTERNATOR of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F0807CP
Bolt Set - Engine - Alternator Mounting 		$50.76 1
TO
011 11F0389CP
Coupling - Alternator - Engine 		$71.07 1
TO
012 11F1869CP
ALTERNATOR - ENGINE 		$1,726.40 1
TO
013 11F1875CP
BRACKET - ALTERNATOR - UPPER 		$86.29 1
TO
014 11F1794CP
SCREW - M6X25 HEX 		$8.10 1
TO
015 11F1877CP
BRACKET - ALTERNATOR - LOWER 		$86.29 1
TO
