33 - Engine - 33.4 - Inlet Manifold

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 33 - ENGINE - 33.4 - INLET MANIFOLD

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14F0674CP INLET MANIFOLD ASSY - ENGINE $5,218.29 To Order
Photo Part No Description Price (each) Stock
14F0360CP GASKET - INLET MANIFOLD - ENGINE $55.84 To Order
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F1740CP THROTTLE BODY - ENGINE $819.72 To Order
Photo Part No Description Price (each) Stock
11F2289CP SEAL - THROTTLE BODY - ENGINE $40.60 To Order
Photo Part No Description Price (each) Stock
11F1797CP SCREW - CAP HEAD - M6X45 $8.91 To Order
Photo Part No Description Price (each) Stock
14F0322CP SENSOR - TMAP - INLET MANIFOLD - ENGINE $70.46 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
14F0780CP INTAKE SOUND GENERATOR - THROTTLE $765.36 To Order
Photo Part No Description Price (each) Stock
11F2290CP SEAL - INTAKE SOUND GENERATOR - THROTTLE BODY - ENGINE $30.44 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $13.18 To Order
Photo Part No Description Price (each) Stock
11F1799CP BOLT - M6X60 - HEX $3.98 To Order
Photo Part No Description Price (each) Stock
14F0766CP ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD $79.32 To Order
Photo Part No Description Price (each) Stock
14F0666CP BLANK - THROTTLE - INTAKE SOUND GENERATOR $30.44 To Order

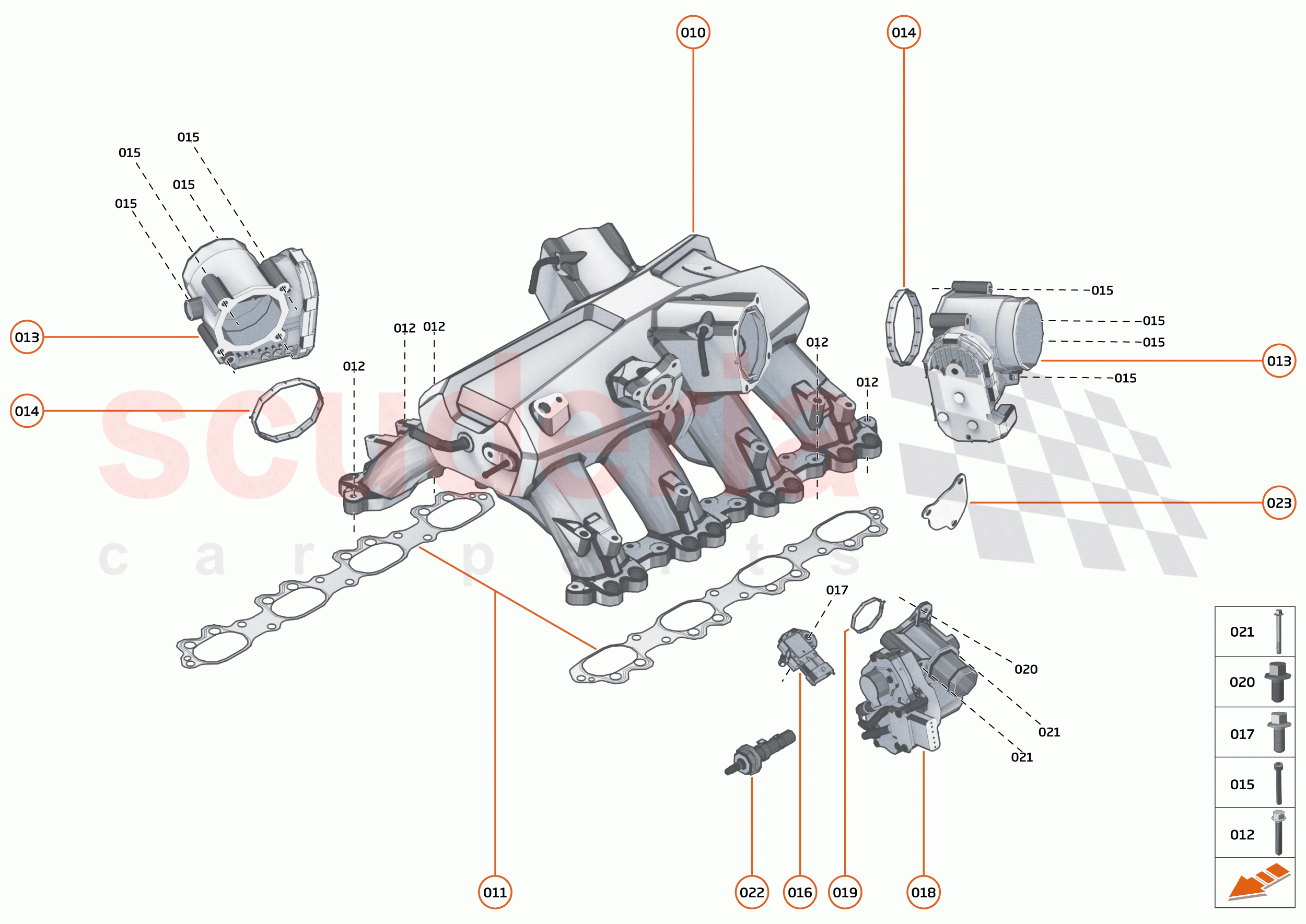

33 - ENGINE - 33.4 - INLET MANIFOLD of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14F0674CP
INLET MANIFOLD ASSY - ENGINE 		$5,218.29 1
TO
011 14F0360CP
GASKET - INLET MANIFOLD - ENGINE 		$55.84 2
TO
012 11F1776CP
BOLT - M6X30 - HEX
Superseded parts: 11F0824CP; 		$10.14 16
TO
013 11F1740CP
THROTTLE BODY - ENGINE
Superseded parts: 11F0407CP; 		$819.72 2
TO
014 11F2289CP
SEAL - THROTTLE BODY - ENGINE
Superseded parts: 11F0969CP; 		$40.60 2
TO
015 11F1797CP
SCREW - CAP HEAD - M6X45 		$8.91 2
TO
016 14F0322CP
SENSOR - TMAP - INLET MANIFOLD - ENGINE 		$70.46 1
TO
017 11F1793CP
BOLT - M6X20 - HEX
Superseded parts: 11F0825CP; 		$11.14 1
TO
018 14F0780CP
INTAKE SOUND GENERATOR - THROTTLE 		$765.36 1
TO
019 11F2290CP
SEAL - INTAKE SOUND GENERATOR - THROTTLE BODY - ENGINE
Superseded parts: 11F0968CP; 		$30.44 1
TO
020 11F1792CP
BOLT - M6X16 - ENGINE 		$13.18 1
TO
021 11F1799CP
BOLT - M6X60 - HEX 		$3.98 2
TO
022 14F0766CP
ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD 		$79.32 1
TO
023 14F0666CP
BLANK - THROTTLE - INTAKE SOUND GENERATOR 		$30.44 1
TO
