McLaren 720S Spider - 33 - ENGINE - 33.11 - ENGINE WATER PUMP & WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F2418CP SENSOR - HEAD TEMPERATURE $95.65 To Order
Photo Part No Description Price (each) Stock
14FA182CP WATER PUMP $1,712.02 To Order
Photo Part No Description Price (each) Stock
11F0686CP ENGINE WATER PUMP GASKET $35.54 IN STOCK
Photo Part No Description Price (each) Stock
11F2434CP GASKET SERVICE COVER WATER PUMP $16.22 IN STOCK
Photo Part No Description Price (each) Stock
11F1784CP BOLT - M6X80 - HEX $20.29 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
11F0802CP Heater Return Stub - Engine - Water Pump $132.00 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
13F0866CP COOLANT HOSE - FEED - CLUTCH COOLER $130.89 To Order
Photo Part No Description Price (each) Stock
11F1859CP OETIKER CLAMP - 24.1MM $13.18 To Order
Photo Part No Description Price (each) Stock
11F1791CP SCREW - HEX HEAD - FLANGE - M6X10 $8.70 To Order
Photo Part No Description Price (each) Stock
13FA050CP THERMOSTAT $264.02 To Order
Photo Part No Description Price (each) Stock
11F1783CP BOLT - M8X30 - HEX $14.21 To Order
Photo Part No Description Price (each) Stock
14F0654CP TOP HOSE - ENGINE RADIATOR - LH $152.32 To Order
Photo Part No Description Price (each) Stock
11F0704CP ENGINE COOLANT TOP24OSE SUPPOR $30.44 To Order
Photo Part No Description Price (each) Stock
11F1782CP BOLT - M6X10 - HEX $14.71 To Order
Photo Part No Description Price (each) Stock
14F0573CP ASSY - HOSE - COOLANT DEGAS - ENGINE $142.16 To Order
Photo Part No Description Price (each) Stock
11F1863CP OETIKER CLIP - 14.1-16.6 $8.31 To Order
Photo Part No Description Price (each) Stock
14F0414CP PLUG IN CLIP - RAYMOND - 15MM $7.09 To Order
Photo Part No Description Price (each) Stock
14F0636CP ASSY - HOSE - COOLANT DEGAS - VEHICLE $71.07 To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB093 OETIKER CLIP - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB204 CLAMP - SPRING BAND - 27X12 Enquire To Order
Photo Part No Description Price (each) Stock
13F0831CP ASSY PIPE TURBOCHARGER WATER RETURN - UPPER RH Enquire To Order
Photo Part No Description Price (each) Stock
14F0569CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH $111.69 To Order
Photo Part No Description Price (each) Stock
12F0684CP Banjo Bolt - M14x1.5 $45.68 To Order
Photo Part No Description Price (each) Stock
12F0685CP Washer - Sealing - M14 $10.14 To Order
Photo Part No Description Price (each) Stock
14FA043CP HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH $76.15 To Order
Photo Part No Description Price (each) Stock
14F0568CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH $111.69 To Order
Photo Part No Description Price (each) Stock
14FA044CP PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - LH $81.23 To Order
Photo Part No Description Price (each) Stock
13FA050CP THERMOSTAT $264.02 To Order
Photo Part No Description Price (each) Stock
14F0569CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH $111.69 To Order
Photo Part No Description Price (each) Stock
13F0828CP ASSY PIPE STUB TURBOCHARGER WATER FEED - RH $55.84 To Order
Photo Part No Description Price (each) Stock
13F0829CP ASSY PIPE STUB TURBO WTR FEED LH $39.12 To Order
Photo Part No Description Price (each) Stock
11F2167CP Pipe - Heater Feed Stub $96.45 To Order

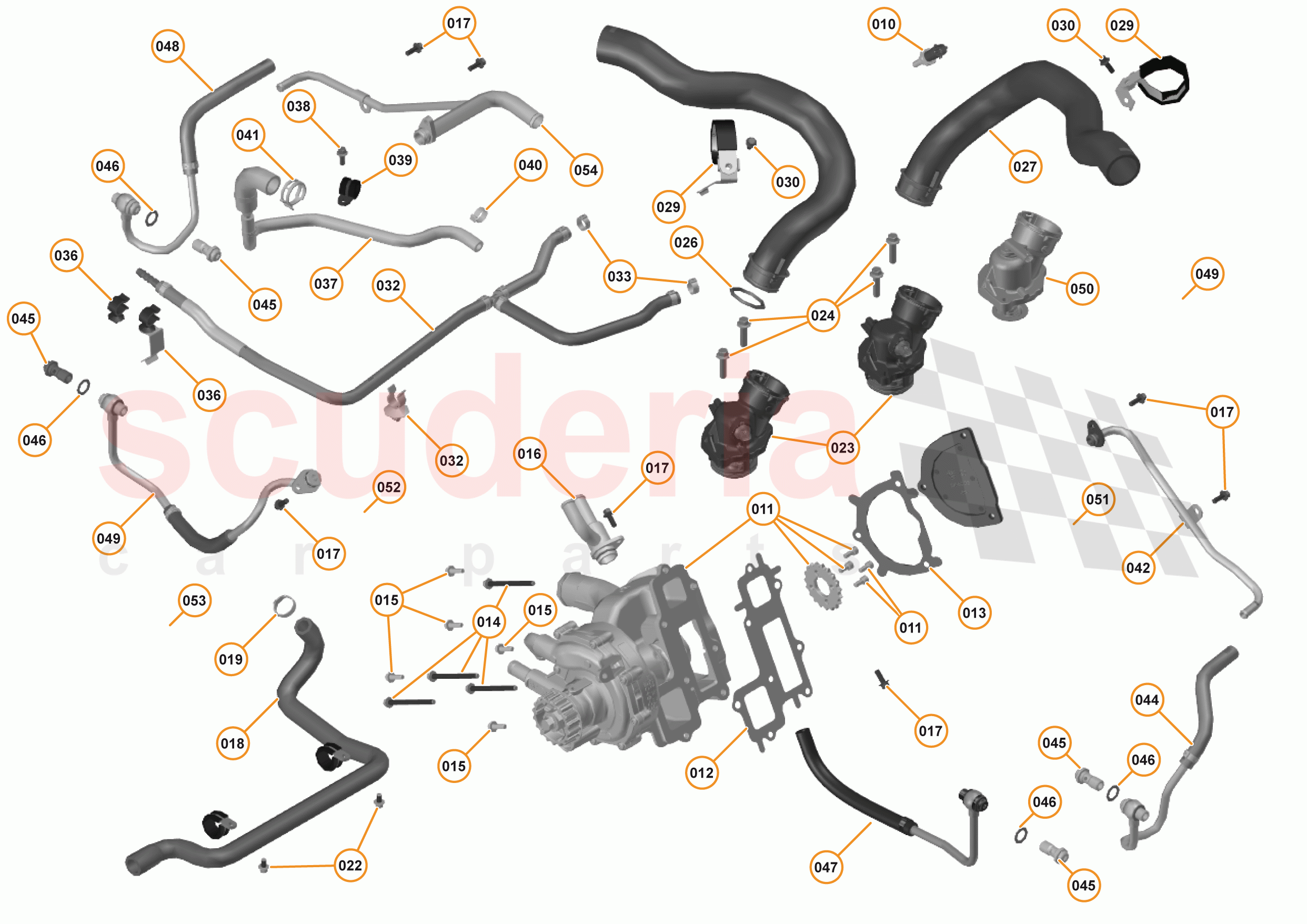

33 - ENGINE - 33.11 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F2418CP
SENSOR - HEAD TEMPERATURE
Superseded parts: 11F0739CP; 		$95.65 1
TO
011 14FA182CP
WATER PUMP
Superseded parts: 14FA021CP; 		$1,712.02 1
TO
012 11F0686CP
ENGINE WATER PUMP GASKET
IN STOCK 		$35.54 1
IN
013 11F2434CP
GASKET SERVICE COVER WATER PUMP
IN STOCK 		$16.22 1
IN
014 11F1784CP
BOLT - M6X80 - HEX 		$20.29 4
TO
015 11F1793CP
BOLT - M6X20 - HEX 		$11.14 8
TO
016 11F0802CP
Heater Return Stub - Engine - Water Pump 		$132.00 1
TO
017 11F0822CP
Bolt - M6x16 - Engine 		- 7
PE
 Enquire
018 13F0866CP
COOLANT HOSE - FEED - CLUTCH COOLER 		$130.89 1
TO
019 11F1859CP
OETIKER CLAMP - 24.1MM 		$13.18 1
TO
022 11F1791CP
SCREW - HEX HEAD - FLANGE - M6X10 		$8.70 2
TO

13FA050CP

THERMOSTAT

from $264.02

024 11F1783CP
BOLT - M8X30 - HEX 		$14.21 4
TO
027 14F0654CP
TOP HOSE - ENGINE RADIATOR - LH 		$152.32 1
TO
028 14F0655CP
TOP HOSE - ENGINE RADIATOR - RH 		$152.32 1
TO
029 11F0704CP
ENGINE COOLANT TOP24OSE SUPPOR 		$30.44 1
TO
030 11F1782CP
BOLT - M6X10 - HEX 		$14.71 2
TO
032 14F0573CP
ASSY - HOSE - COOLANT DEGAS - ENGINE 		$142.16 1
TO
033 11F1863CP
OETIKER CLIP - 14.1-16.6 		$8.31 2
TO
035 14F0411CP
BRACKET - DEGAS HOSE 		$24.00 1
TO
036 14F0414CP
PLUG IN CLIP - RAYMOND - 15MM 		$7.09 1
TO
037 14F0636CP
ASSY - HOSE - COOLANT DEGAS - VEHICLE 		$71.07 1
TO
038 00RA556
BOLT - HEX - FLANGED - M6X16
Superseded parts: 00RA313; 		- 1
PE
 Enquire
039 00RB005
P CLIP - DIA 16 		- 1
PE
 Enquire
040 00RB093
OETIKER CLIP - 16.6 		- 1
PE
 Enquire
041 00RB204
CLAMP - SPRING BAND - 27X12 		- 1
PE
 Enquire
042 13F0831CP
ASSY PIPE TURBOCHARGER WATER RETURN - UPPER RH 		- 1
PE
 Enquire

14F0569CP

PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH

from $111.69

045 12F0684CP
Banjo Bolt - M14x1.5 		$45.68 4
TO
046 12F0685CP
Washer - Sealing - M14 		$10.14 4
TO
047 14FA043CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH 		$76.15 1
TO
048 14F0568CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH 		$111.69 1
TO
049 14FA044CP
PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - LH 		$81.23 1
TO
052 13F0828CP
ASSY PIPE STUB TURBOCHARGER WATER FEED - RH 		$55.84 1
TO
053 13F0829CP
ASSY PIPE STUB TURBO WTR FEED LH 		$39.12 1
TO
054 11F2167CP
Pipe - Heater Feed Stub 		$96.45 1
TO
