McLaren 720S Spider - 31 - FLUIDS - HVAC - 31.1 - HVAC FLUIDS CIRCUIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $76.15 To Order
Photo Part No Description Price (each) Stock
13A3307CP PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER $96.45 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
14A3051CP INTERNAL HEAT EXCHANGER UNIT $324.96 To Order
Photo Part No Description Price (each) Stock
11A6627CP SENSOR - PRESSURE - HVAC $322.24 To Order
Photo Part No Description Price (each) Stock
14A1645CP HOSE - CONDENSER LATERAL - CENTRE - HVAC $101.53 To Order
Photo Part No Description Price (each) Stock
14A1656CP HOSE - CONDENSER - RECIEVER DRIER - HVAC $111.69 To Order
Photo Part No Description Price (each) Stock
14A1802CP HOSE - COMPRESSOR TO CONDENSER - R134A $264.02 To Order
14A1653CP HOSE - COMPRESSOR TO CONDENSER - R1234YF $243.70 To Order
Photo Part No Description Price (each) Stock
14AB753CP HOSE - HVAC COMPRESSOR - REAR - R134A $132.00 To Order
14AB752CP HOSE - COMPRESSOR - REAR - R1234YF $132.00 To Order
Photo Part No Description Price (each) Stock
11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC $65.98 To Order
Photo Part No Description Price (each) Stock
00RC038 WASHER - WAVE M8 Enquire To Order
Photo Part No Description Price (each) Stock
14LA045CP HOSE - HEATER TO ENGINE - INCLUDING VALVE $304.64 To Order
Photo Part No Description Price (each) Stock
00RB145 CLAMP - SPRING BAND - 26/12 Enquire To Order
Photo Part No Description Price (each) Stock
14A4228CP HOSE - HEATER TO PUMP - HVAC $304.64 To Order

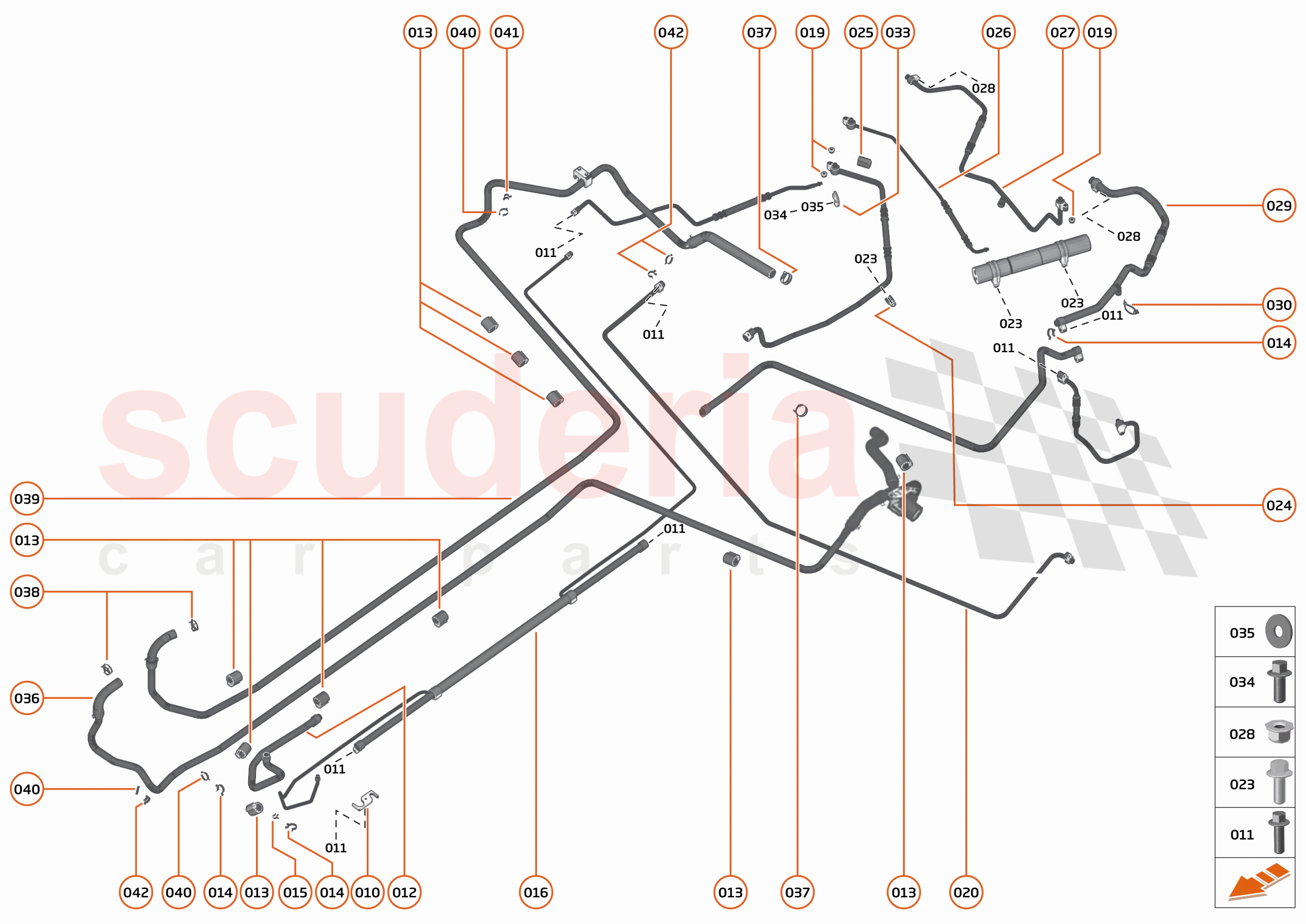

31 - FLUIDS - HVAC - 31.1 - HVAC FLUIDS CIRCUIT of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION 		$76.15 1
TO
012 13A3307CP
PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER 		$96.45 1
TO
013 00RA367
PIPE PROTECTOR - 19MM ID 		- 2
PE
 Enquire
016 14A3051CP
INTERNAL HEAT EXCHANGER UNIT 		$324.96 1
TO
017 14A1800CP
PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR
IN STOCK 		$142.16 1
IN
018 14A1654CP
HOSE - CONDENSER LATERAL - LH - HVAC 		$172.62 1
TO
019 11A6627CP
SENSOR - PRESSURE - HVAC 		$322.24 1
TO
020 14A1645CP
HOSE - CONDENSER LATERAL - CENTRE - HVAC 		$101.53 1
TO
021 13A4104CP
HOSE - RECEIVER DRIER - HVAC - REAR 		$345.26 1
TO
022 14A1655CP
ASSY HOSE-CONDENSOR LATERAL-RH-STD 		$264.02 1
TO
026 14A1656CP
HOSE - CONDENSER - RECIEVER DRIER - HVAC 		$111.69 1
TO
027 14A1802CP
HOSE - COMPRESSOR TO CONDENSER - R134A 		$264.02 1
TO
027 14A1653CP
HOSE - COMPRESSOR TO CONDENSER - R1234YF 		$243.70 1
TO
029 14AB753CP
HOSE - HVAC COMPRESSOR - REAR - R134A 		$132.00 1
TO
029 14AB752CP
HOSE - COMPRESSOR - REAR - R1234YF 		$132.00 1
TO
031 12A2757CP
RECEIVER DRIER - HVAC 		$467.13 1
TO
033 11A4433CP
CLAMP PLATE - RECEIVER DRIER - HVAC 		$65.98 1
TO
035 00RC038
WASHER - WAVE M8 		- 1
PE
 Enquire
036 14LA045CP
HOSE - HEATER TO ENGINE - INCLUDING VALVE 		$304.64 1
TO
037 00RB145
CLAMP - SPRING BAND - 26/12 		- 1
PE
 Enquire
039 14A4228CP
HOSE - HEATER TO PUMP - HVAC 		$304.64 1
TO
043 14A3034CP
CLIP - HEATER PIPE 		$66.75 1
TO
