McLaren 720S Spider - 24 - BRAKES - SYSTEMS - 24.4 - BRAKE PIPES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11C0680CP BRAKE HOSE - IRON - CARBON - FRONT $65.98 To Order
Photo Part No Description Price (each) Stock
13C0188CP BRAKE HOSE - CARBON - REAR $85.58 To Order
Photo Part No Description Price (each) Stock
11C0501CP BRAKE HOSE BANJO BOLT INC WASHERS $25.37 To Order
11C0501CP BRAKE HOSE BANJO BOLT INC WASHERS $25.37 To Order
Photo Part No Description Price (each) Stock
14C0005CP BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - LH $55.84 To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB134 DOUBLE PIPE CLIP IAC27 Enquire To Order
Photo Part No Description Price (each) Stock
00RB168 SWIVEL CLIP - 4.3-5.2 - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB180 CLIP - FIRTREE - 23.8X4 Enquire To Order
Photo Part No Description Price (each) Stock
14C0167CP BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - RH $96.45 To Order
Photo Part No Description Price (each) Stock
00RB042 SWIVEL PIPE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
14CA011CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - RHD $96.67 To Order
14CA004CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RB043 CLIP-DOUBLE-DIA 6 24 Enquire To Order
Photo Part No Description Price (each) Stock
14CA005CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - LHD Enquire To Order
14CA012CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - RHD $111.69 To Order
Photo Part No Description Price (each) Stock
14C0165CP BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - RH $132.00 To Order
Photo Part No Description Price (each) Stock
00RB063 P CLIP - DIA 6 (M6) Enquire To Order
Photo Part No Description Price (each) Stock
14C0007CP BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - LH $76.15 To Order
Photo Part No Description Price (each) Stock
14C0065CP BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - LH $55.84 To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA580 SCREW - M6X1X16 Enquire To Order
Photo Part No Description Price (each) Stock
14C0067CP BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - RH $55.84 To Order
Photo Part No Description Price (each) Stock
14C0119CP BRACKET - BRAKE PIPE - FRONT - LH $30.20 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14C0118CP BRACKET - BRAKE PIPE - FRONT - RH $30.20 To Order
Photo Part No Description Price (each) Stock
14CA078CP BRACKET - BRAKE PIPE - REAR - LH $35.23 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14CA077CP BRACKET - BRAKE PIPE - REAR - RH $35.23 To Order
Photo Part No Description Price (each) Stock
11C0237CP CLAMP - CHASSIS TUNNEL $40.60 To Order
Photo Part No Description Price (each) Stock
11C0592CP WASHER - COPPER - BRAKE HOSE $4.44 To Order

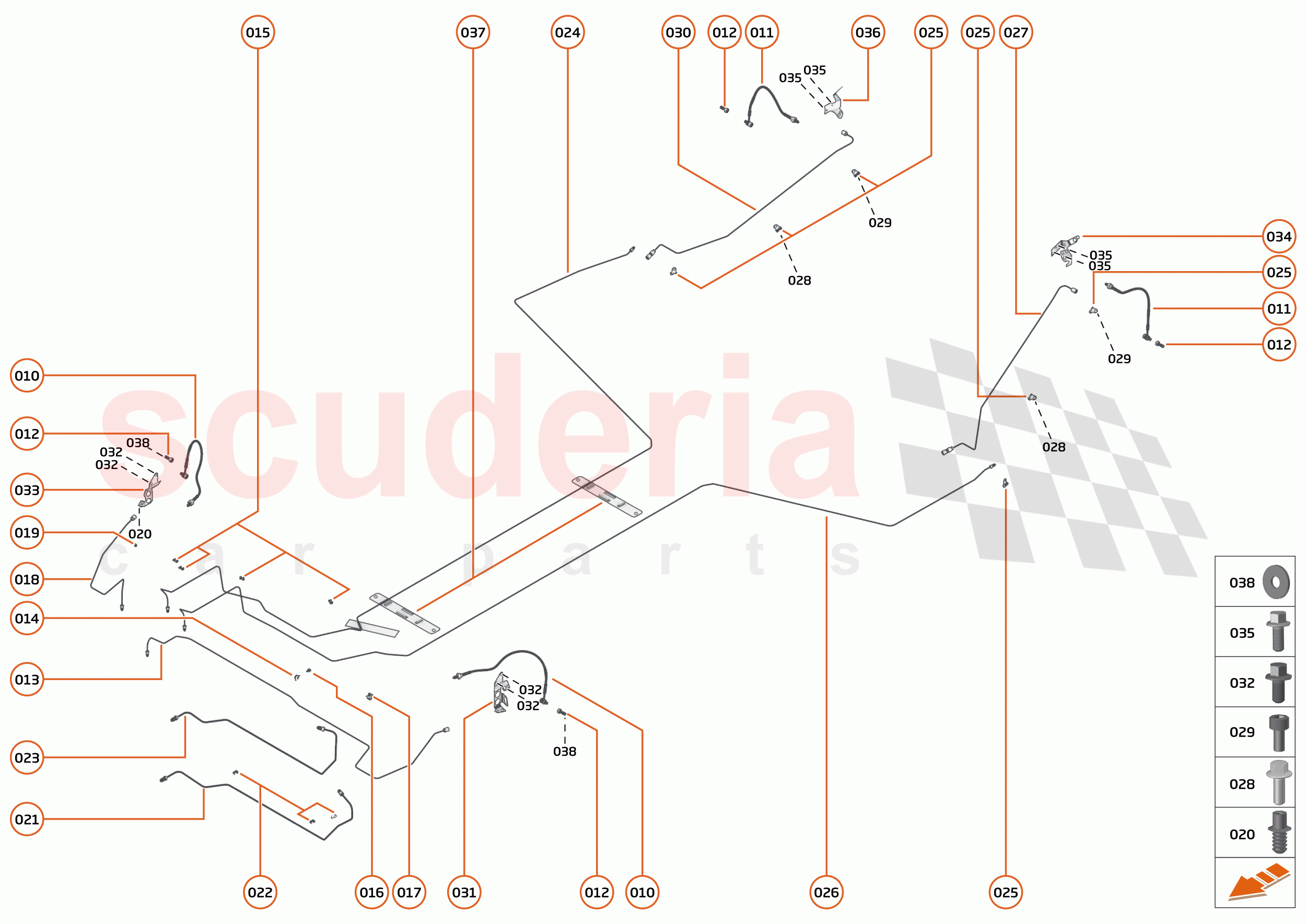

24 - BRAKES - SYSTEMS - 24.4 - BRAKE PIPES of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11C0680CP
BRAKE HOSE - IRON - CARBON - FRONT 		$65.98 1
TO
011 13C0188CP
BRAKE HOSE - CARBON - REAR 		$85.58 1
TO

11C0501CP

BRAKE HOSE BANJO BOLT INC WASHERS

from $25.37

013 14C0005CP
BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - LH 		$55.84 1
TO
014 00RB018
CLIP - 11-13MM - MALE 		- 1
PE
 Enquire
015 00RB134
DOUBLE PIPE CLIP IAC27 		- 4
PE
 Enquire
016 00RB168
SWIVEL CLIP - 4.3-5.2 - FEMALE 		- 1
PE
 Enquire
017 00RB180
CLIP - FIRTREE - 23.8X4 		- 1
PE
 Enquire
018 14C0167CP
BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - RH 		$96.45 1
TO
019 00RB042
SWIVEL PIPE CLIP 		- 1
PE
 Enquire
020 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 1
PE
 Enquire
021 14CA011CP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - RHD 		$96.67 1
TO
021 14CA004CP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - LHD 		- 1
PE
 Enquire
022 00RB043
CLIP-DOUBLE-DIA 6 24 		- 4
PE
 Enquire
023 14CA005CP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - LHD 		- 1
PE
 Enquire
023 14CA012CP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - RHD 		$111.69 1
TO
024 14C0165CP
BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - RH 		$132.00 1
TO
025 00RB063
P CLIP - DIA 6 (M6) 		- 1
PE
 Enquire
026 14C0007CP
BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - LH 		$76.15 1
TO
027 14C0065CP
BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - LH 		$55.84 1
TO
028 00RA556
BOLT - HEX - FLANGED - M6X16
Superseded parts: 00RA313; 		- 2
PE
 Enquire
029 00RA580
SCREW - M6X1X16 		- 1
PE
 Enquire
030 14C0067CP
BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - RH 		$55.84 1
TO
031 14C0119CP
BRACKET - BRAKE PIPE - FRONT - LH 		$30.20 1
TO
032 00RA087
SCREW - M5X10 - HEX 		- 4
PE
 Enquire
033 14C0118CP
BRACKET - BRAKE PIPE - FRONT - RH 		$30.20 1
TO
034 14CA078CP
BRACKET - BRAKE PIPE - REAR - LH 		$35.23 1
TO
035 00RX001
BOLT - M5X16 - HEX 		- 4
PE
 Enquire
036 14CA077CP
BRACKET - BRAKE PIPE - REAR - RH 		$35.23 1
TO
037 11C0237CP
CLAMP - CHASSIS TUNNEL 		$40.60 2
TO
038 11C0592CP
WASHER - COPPER - BRAKE HOSE 		$4.44 1
TO
