McLaren 720S Spider - 24 - BRAKES - SYSTEMS - 24.1 - PEDAL BOX

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13C0198CP ASSY-RESERVOIR-BRAKE FLUID $264.02 To Order
11CA002CP THROTTLE PEDAL $966.78 To Order
Photo Part No Description Price (each) Stock
13CA034CP BRAKE PEDAL ASSY - RHD Enquire To Order
11CA001CP BRAKE PEDAL ASSY - LHD Enquire To Order
13C0197CP BRACKET - BRAKE FLUID RESERVOIR - RHD $25.37 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11CA003CP PAD-PEDAL-BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
11M0352CP Switch - Brake Light $80.54 To Order
Photo Part No Description Price (each) Stock
11CA005CP PIN - PISTON ROD TO BRAKE PEDAL $3.43 To Order
Photo Part No Description Price (each) Stock
11C0286CP SPRING CLIP - CLEVIS PIN $6.06 To Order

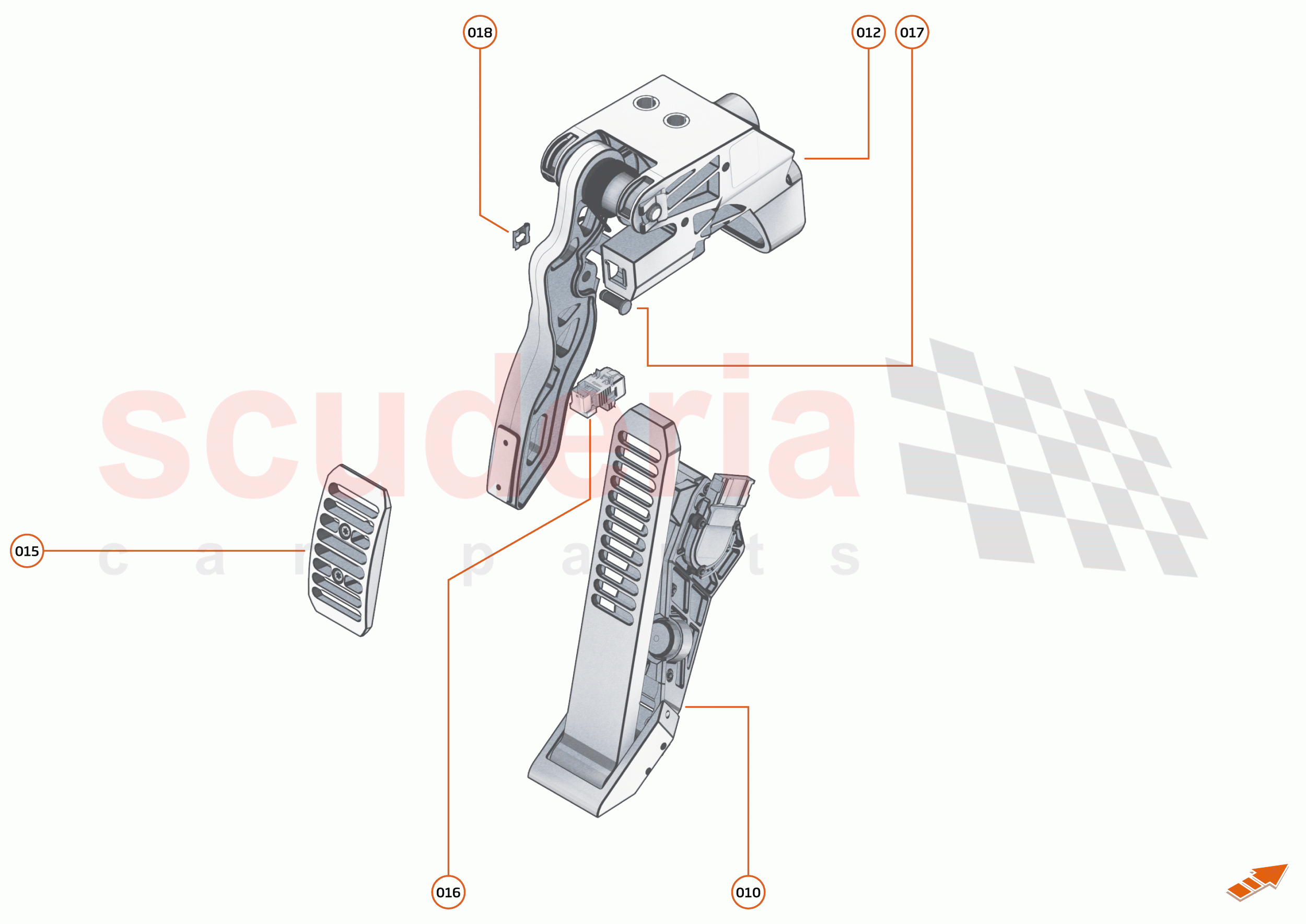

24 - BRAKES - SYSTEMS - 24.1 - PEDAL BOX of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13C0198CP
ASSY-RESERVOIR-BRAKE FLUID 		$264.02 1
TO
010 11CA002CP
THROTTLE PEDAL 		$966.78 1
TO
011 00RA373
SCREW - HEX HEAD - LOCK - M6X25 - 8.8 		- 1
PE
 Enquire
011 00RA581
BOLT - HEX HEAD - FLANGE - M6X30 		- 3
PE
 Enquire
012 13CA034CP
BRAKE PEDAL ASSY - RHD 		- 1
PE
 Enquire
012 11CA001CP
BRAKE PEDAL ASSY - LHD 		- 1
PE
 Enquire
012 13C0197CP
BRACKET - BRAKE FLUID RESERVOIR - RHD 		$25.37 1
TO
012 13C0196CP
BRACKET - BRAKE FLUID RESERVOIR - LHD 		- 1
PE
 Enquire
013 00RA236
BOLT-HEX HEAD-FLANGE-M8X70-8.8 		- 2
PE
 Enquire
014 00RC048
WASHER - FORM C - 21X1.6 - M8 		- 2
PE
 Enquire
015 11CA003CP
PAD-PEDAL-BRAKE 		- 1
PE
 Enquire
016 11M0352CP
Switch - Brake Light 		$80.54 1
TO
017 11CA005CP
PIN - PISTON ROD TO BRAKE PEDAL 		$3.43 1
TO
018 11C0286CP
SPRING CLIP - CLEVIS PIN 		$6.06 1
TO
