McLaren 720S Spider - 9 - ACTIVE AERO - 9.2 - REAR ACTIVE AERO MECHANISMS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA614 BOLT - M8X1.25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA627 BOLT - HEX - FLANGED - M6X80 Enquire To Order
Photo Part No Description Price (each) Stock
14AB118CP ASSY - AIRBRAKE - FULL ASSY - 14AM002 SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB019 CLIP - 90DEG - FEMALE - 10-12MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
14A0110CP HOSE - CONNECTOR - GEARBOX - 8MM $19.27 To Order
Photo Part No Description Price (each) Stock
14A0606CP HOSE - ACTUATOR - UNION MANIFOLD $241.69 To Order
Photo Part No Description Price (each) Stock
14A3600CP CONNECTOR - HOSE - AIRBRAKE MECHANISM - 4.5MM $81.23 To Order
Photo Part No Description Price (each) Stock
11A4676CP Hose - Airbrake - Union Manifold $192.93 To Order
Photo Part No Description Price (each) Stock
14A1175CP ACTUATOR - AIRBRAKE - LH Enquire To Order
Photo Part No Description Price (each) Stock
14A3598CP ACTUATOR - AIRBRAKE - RH Enquire To Order
Photo Part No Description Price (each) Stock
14A1169CP WIRING HARNESS - AIRBRAKE - LH $50.34 To Order
Photo Part No Description Price (each) Stock
14A1184CP WIRING HARNESS - AIRBRAKE - RH $55.36 To Order
Photo Part No Description Price (each) Stock
14A0434CP POSITION SENSOR - AIRBRAKE $264.02 To Order
Photo Part No Description Price (each) Stock
14A0431CP FRONT LINK - AIRBRAKE Enquire To Order
Photo Part No Description Price (each) Stock
14A4418CP ASSY BRKT AIRBRAKE MANIFOLD SUPPORT $152.32 To Order
Photo Part No Description Price (each) Stock
14AB129CP BRACKET - AIRBRAKE - LH SUPPORT $31.57 To Order
Photo Part No Description Price (each) Stock
14AB130CP BRACKET - AIRBRAKE - RH SUPPORT $31.57 To Order
Photo Part No Description Price (each) Stock
14A4138CP HEX SOCKET HD CAP M4X10 $35.54 To Order

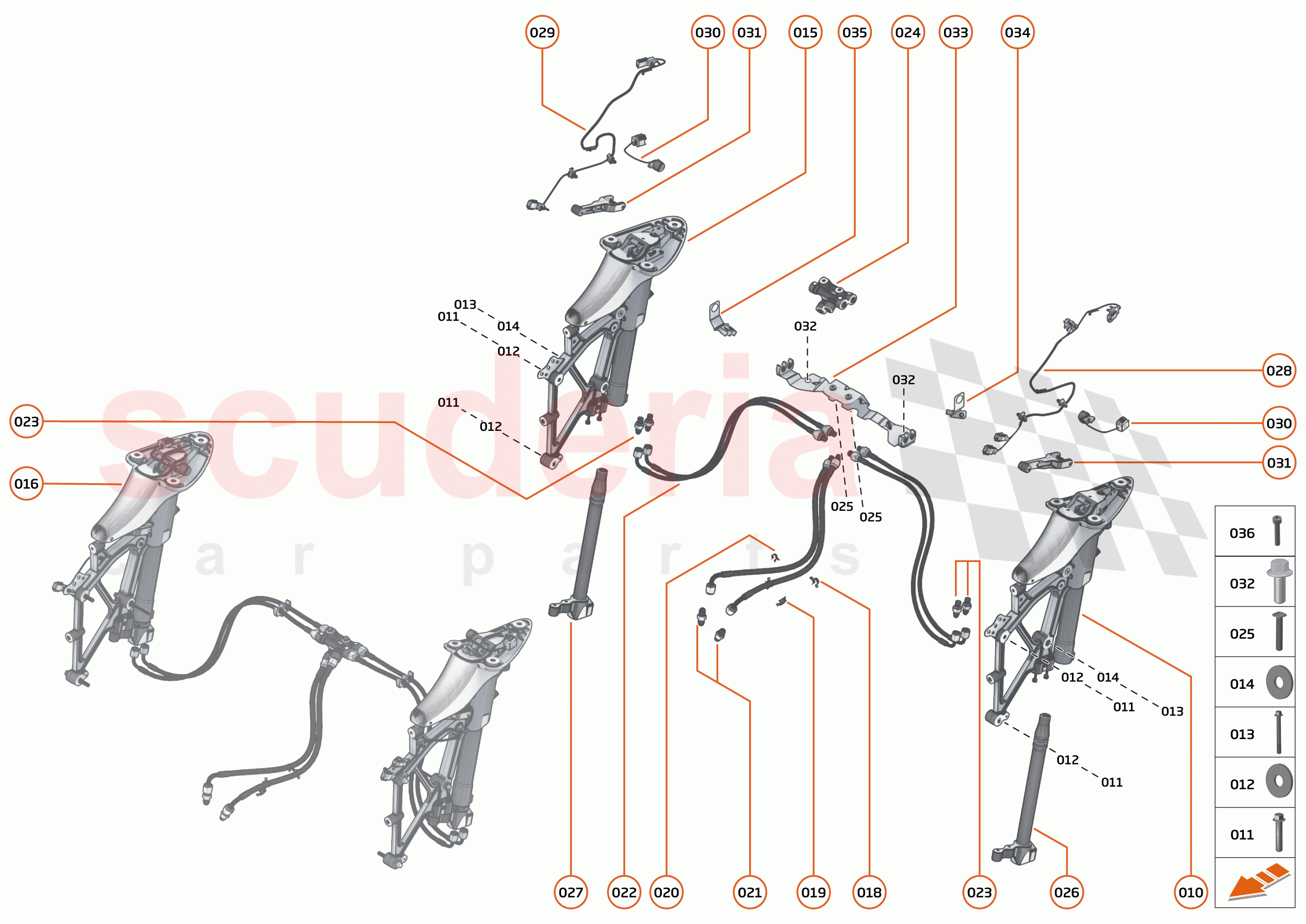

9 - ACTIVE AERO - 9.2 - REAR ACTIVE AERO MECHANISMS of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
011 00RA614
BOLT - M8X1.25 - HEX 		- 4
PE
 Enquire
013 00RA627
BOLT - HEX - FLANGED - M6X80 		- 2
PE
 Enquire
016 14AB118CP
ASSY - AIRBRAKE - FULL ASSY - 14AM002 SILVER 		- 1
PE
 Enquire
017 14AA089CP
HOSE - GEARBOX - UNION MANIFOLD 		$162.46 1
TO
018 00RB019
CLIP - 90DEG - FEMALE - 10-12MM 		- 2
PE
 Enquire
019 00RB044
SWIVEL PIPE CLIP - 16MM 		- 1
PE
 Enquire
020 00RB045
CLIP - 9.5-10MM - MALE 		- 1
PE
 Enquire
021 14A0110CP
HOSE - CONNECTOR - GEARBOX - 8MM 		$19.27 2
TO
022 14A0606CP
HOSE - ACTUATOR - UNION MANIFOLD 		$241.69 1
TO
023 14A3600CP
CONNECTOR - HOSE - AIRBRAKE MECHANISM - 4.5MM 		$81.23 4
TO
024 11A4676CP
Hose - Airbrake - Union Manifold 		$192.93 1
TO
026 14A1175CP
ACTUATOR - AIRBRAKE - LH 		- 1
PE
 Enquire
027 14A3598CP
ACTUATOR - AIRBRAKE - RH 		- 1
PE
 Enquire
028 14A1169CP
WIRING HARNESS - AIRBRAKE - LH 		$50.34 1
TO
029 14A1184CP
WIRING HARNESS - AIRBRAKE - RH 		$55.36 1
TO
030 14A0434CP
POSITION SENSOR - AIRBRAKE 		$264.02 1
TO
031 14A0431CP
FRONT LINK - AIRBRAKE 		- 1
PE
 Enquire
033 14A4418CP
ASSY BRKT AIRBRAKE MANIFOLD SUPPORT 		$152.32 1
TO
034 14AB129CP
BRACKET - AIRBRAKE - LH SUPPORT 		$31.57 1
TO
035 14AB130CP
BRACKET - AIRBRAKE - RH SUPPORT 		$31.57 1
TO
036 14A4138CP
HEX SOCKET HD CAP M4X10 		$35.54 1
TO
