McLaren 720S Spider - 7 - CLOSURES - 7.1 - BONNET STRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AA078MP BONNET ASSEMBLY - CARBON - MSO Enquire To Order
14AC195CP BONNET ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
14A4507CP BADGE - MCLAREN - FRONT - RED CHROME $76.15 To Order
14AC704CP BADGE - MCLAREN - FRONT - CHROME $121.84 To Order
Photo Part No Description Price (each) Stock
14A3590CP BONNET GRILLE RH $322.24 To Order
Photo Part No Description Price (each) Stock
14AA901CP TRIM - BONNET GRILLE - RH Enquire To Order
Photo Part No Description Price (each) Stock
14A3591CP BONNET GRILLE LH $322.24 To Order
Photo Part No Description Price (each) Stock
00RA303 Screw - Button Head - Hex Flange - M4x6-10.9 BLK Enquire To Order
Photo Part No Description Price (each) Stock
14A3590CP BONNET GRILLE RH $322.24 To Order
Photo Part No Description Price (each) Stock
14A2918CP BONNET DUCT CARBON LH Enquire To Order
Photo Part No Description Price (each) Stock
14A2694CP DUCT - BONNET - RH - CARBON Enquire To Order
Photo Part No Description Price (each) Stock
14AB882CP REAR FINISHER LH - BONNET INNER $24.80 To Order
Photo Part No Description Price (each) Stock
14AB883CP REAR FINISHER RH - BONNET INNER $24.80 To Order
Photo Part No Description Price (each) Stock
14AB873CP REAR BONNET VENT PLUG $5.88 To Order
Photo Part No Description Price (each) Stock
13A3813CP Color codes: BUMPSTOP $7.24 To Order

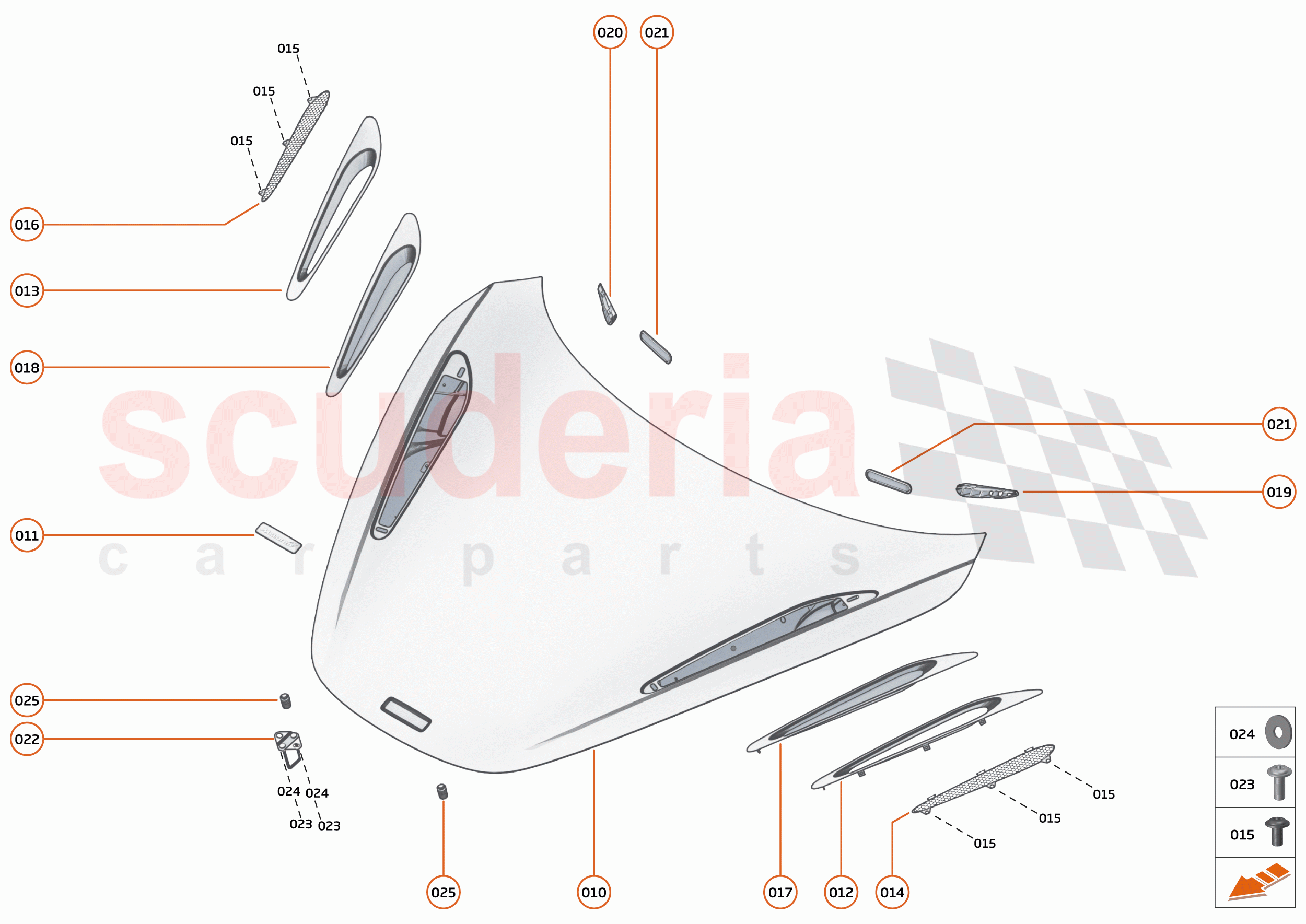

7 - CLOSURES - 7.1 - BONNET STRUCTURE of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AA078MP
BONNET ASSEMBLY - CARBON - MSO 		- 1
PE
 Enquire
010 14AC195CP
BONNET ASSEMBLY 		- 1
PE
 Enquire
011 14A4507CP
BADGE - MCLAREN - FRONT - RED CHROME 		$76.15 1
TO
011 14AC704CP
BADGE - MCLAREN - FRONT - CHROME
Superseded parts: 14A4507CP; 		$121.84 1
TO

14A3590CP

BONNET GRILLE RH

from $322.24

013 14AA901CP
TRIM - BONNET GRILLE - RH 		- 1
PE
 Enquire
014 14A3591CP
BONNET GRILLE LH 		$322.24 1
TO
015 00RA303
Screw - Button Head - Hex Flange - M4x6-10.9 BLK 		- 6
PE
 Enquire
017 14A2918CP
BONNET DUCT CARBON LH 		- 1
PE
 Enquire
018 14A2694CP
DUCT - BONNET - RH - CARBON 		- 1
PE
 Enquire
019 14AB882CP
REAR FINISHER LH - BONNET INNER 		$24.80 1
TO
020 14AB883CP
REAR FINISHER RH - BONNET INNER 		$24.80 1
TO
021 14AB873CP
REAR BONNET VENT PLUG 		$5.88 1
TO
024 13A3813CP
Color codes: BUMPSTOP
Color codes: BUMPSTOP; 		$7.24 1
TO
