McLaren 720S Spider - 6 - PANELS - 6.5 - UPPER STRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
11A3464CP SPACER - BULKHEAD GLASS $8.10 To Order
Photo Part No Description Price (each) Stock
14AA645SP BTS UPPER SHIM 1MM $13.18 To Order
Photo Part No Description Price (each) Stock
14AA646SP BTS UPPER SHIM 0.5MM $9.20 To Order
Photo Part No Description Price (each) Stock
14AB139SP ASSY PNL HEADER CAPPING SP Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA302 SCREW - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14A1604SP TONNEAU CVR HINGE SHIM 1MM $9.20 To Order
Photo Part No Description Price (each) Stock
14A1605SP TONNEAU CVR HINGE SHIM 0.5MM $8.43 To Order
Photo Part No Description Price (each) Stock
14AA021SP RETRACTOR-MTG BRKT-SPIDER-LH Enquire To Order
Photo Part No Description Price (each) Stock
14AA024SP RETRACTOR-MTG BRKT-SPIDER-RH Enquire To Order
Photo Part No Description Price (each) Stock
14AA532SP ASSY LATCH COVER PNL RH Enquire To Order
Photo Part No Description Price (each) Stock
14AA342SP MLDG CABIN AIR EVAC $25.37 To Order
Photo Part No Description Price (each) Stock
14AB176SP ASSY TONNEAU CHMSL FINISHER $45.68 To Order
Photo Part No Description Price (each) Stock
00RA149 Torx Screw-Washer 4.2x13 Enquire To Order
Photo Part No Description Price (each) Stock
14AA634SP ADJUSTMENT PLATE $35.54 To Order
Photo Part No Description Price (each) Stock
14AA947SP FOAM AIR EVAC $6.13 To Order
Photo Part No Description Price (each) Stock
14AA946SP FOAM CHMSL FINISHER $12.17 To Order
Photo Part No Description Price (each) Stock
14AB649SP EDGE FINISHER PNL CVR BTS $6.87 To Order
Photo Part No Description Price (each) Stock
14AB197SP ASSY LATCH COVER PNL LH $62.12 To Order
Photo Part No Description Price (each) Stock
14AB408SP ASSY BUTTRESS LH $1,013.63 To Order
Photo Part No Description Price (each) Stock
14AB409SP ASSY BUTTRESS RH $1,013.63 To Order
Photo Part No Description Price (each) Stock
14AB458SP ASSY PNL CVR BTS LH $264.02 To Order
Photo Part No Description Price (each) Stock
14AB461SP ASSY PNL CVR BTS RH Enquire To Order
Photo Part No Description Price (each) Stock
14AB604SP ASSY CAPPING PNL TNU CVR LH $304.64 To Order
Photo Part No Description Price (each) Stock
14AB607SP ASSY CAPPING PNL TNU CVR RH $304.64 To Order
Photo Part No Description Price (each) Stock
14AA325MP ASSY TONNEAU - COVER PANEL VCF Enquire To Order
14AB336SP ASSY TONNEAU CVR PNL $4,713.12 To Order
Photo Part No Description Price (each) Stock
14AB406SP ASSY TOP - CAP BTS - RH - ASSY TOP CAP BTS RH $243.70 To Order
Photo Part No Description Price (each) Stock
14AB404SP ASSY TOP - CAP BTS - LH $243.70 To Order

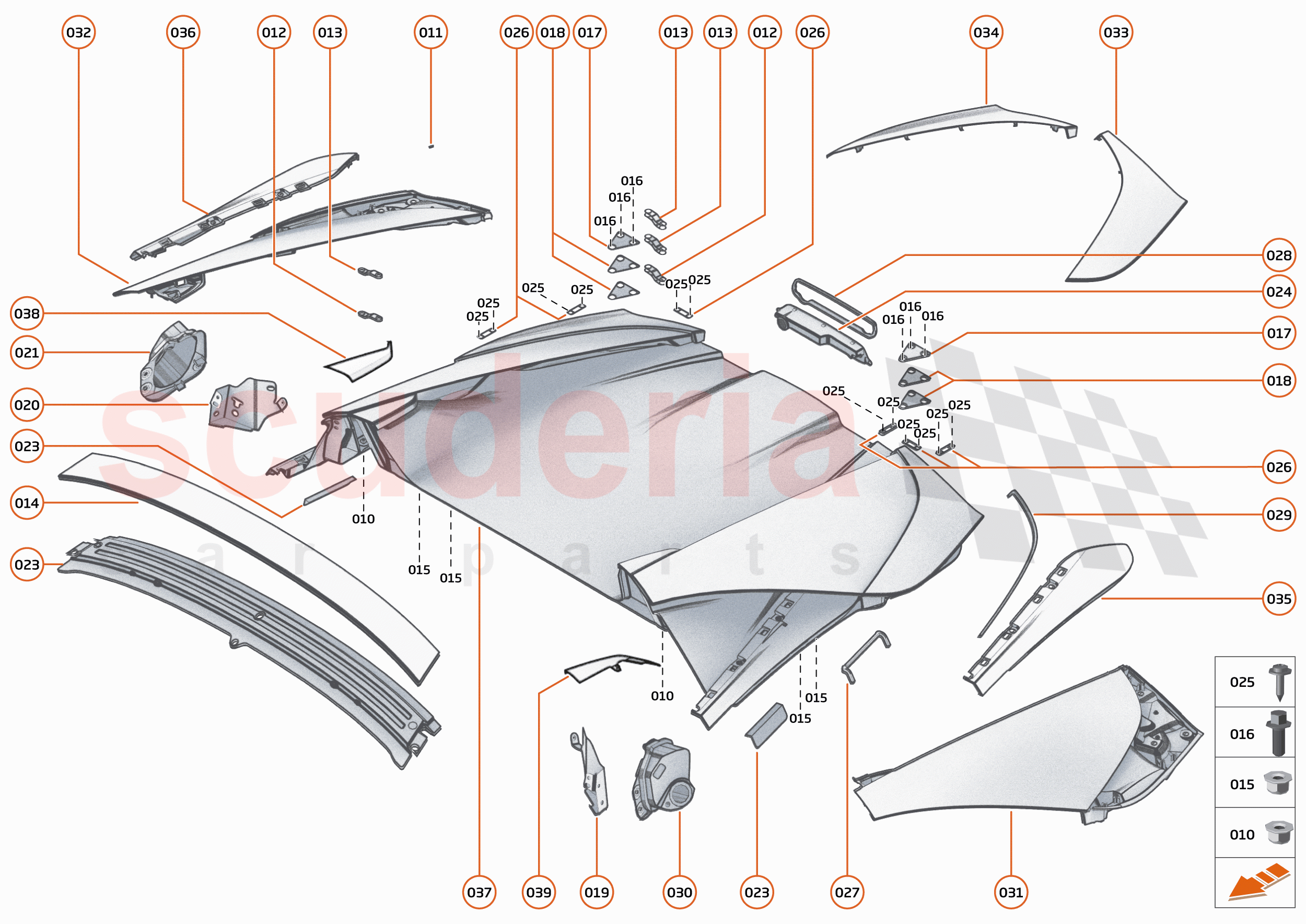

6 - PANELS - 6.5 - UPPER STRUCTURE of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 2
PE
 Enquire
011 11A3464CP
SPACER - BULKHEAD GLASS 		$8.10 10
TO
012 14AA645SP
BTS UPPER SHIM 1MM 		$13.18 2
TO
013 14AA646SP
BTS UPPER SHIM 0.5MM 		$9.20 4
TO
014 14AB139SP
ASSY PNL HEADER CAPPING SP 		- 1
PE
 Enquire
015 00RA075
NUT - M8-8 - HEX 		- 4
PE
 Enquire
016 00RA302
SCREW - M8X20 - HEX 		- 6
PE
 Enquire
017 14A1604SP
TONNEAU CVR HINGE SHIM 1MM 		$9.20 2
TO
018 14A1605SP
TONNEAU CVR HINGE SHIM 0.5MM 		$8.43 4
TO
019 14AA021SP
RETRACTOR-MTG BRKT-SPIDER-LH 		- 1
PE
 Enquire
020 14AA024SP
RETRACTOR-MTG BRKT-SPIDER-RH 		- 1
PE
 Enquire
021 14AA532SP
ASSY LATCH COVER PNL RH 		- 1
PE
 Enquire
022 14AA658SP
ASSY PNL HEADER INNR SPIDER 		$1,218.63 1
TO
023 14AA342SP
MLDG CABIN AIR EVAC 		$25.37 2
TO
024 14AB176SP
ASSY TONNEAU CHMSL FINISHER 		$45.68 1
TO
025 00RA149
Torx Screw-Washer 4.2x13 		- 12
PE
 Enquire
026 14AA634SP
ADJUSTMENT PLATE 		$35.54 6
TO
027 14AA947SP
FOAM AIR EVAC 		$6.13 1
TO
028 14AA946SP
FOAM CHMSL FINISHER 		$12.17 1
TO
029 14AB649SP
EDGE FINISHER PNL CVR BTS 		$6.87 1
TO
030 14AB197SP
ASSY LATCH COVER PNL LH 		$62.12 1
TO
031 14AB408SP
ASSY BUTTRESS LH 		$1,013.63 1
TO
032 14AB409SP
ASSY BUTTRESS RH 		$1,013.63 1
TO
033 14AB458SP
ASSY PNL CVR BTS LH 		$264.02 1
TO
034 14AB461SP
ASSY PNL CVR BTS RH 		- 1
PE
 Enquire
035 14AB604SP
ASSY CAPPING PNL TNU CVR LH 		$304.64 1
TO
036 14AB607SP
ASSY CAPPING PNL TNU CVR RH 		$304.64 1
TO
037 14AA325MP
ASSY TONNEAU - COVER PANEL VCF 		- 1
PE
 Enquire
037 14AB336SP
ASSY TONNEAU CVR PNL 		$4,713.12 1
TO
038 14AB406SP
ASSY TOP - CAP BTS - RH - ASSY TOP CAP BTS RH 		$243.70 1
TO
039 14AB404SP
ASSY TOP - CAP BTS - LH 		$243.70 1
TO
