3 - Rear Structures - 3.3 - Engine Cradle

McLaren 720S Coupe

Find Your Part

McLaren 720S Coupe - 3 - REAR STRUCTURES - 3.3 - ENGINE CRADLE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14A1677CP ENGINE CRADLE $7,291.24 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
11A4284CP PLUG - DOME - 25 DIAMETER $2.00 To Order
Photo Part No Description Price (each) Stock
00RA575 BOLT - M12X110 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC066 WASHER - M12X28X2.5 Enquire To Order
Photo Part No Description Price (each) Stock
00RG050 Plug - Dome - 33 Diameter Enquire To Order

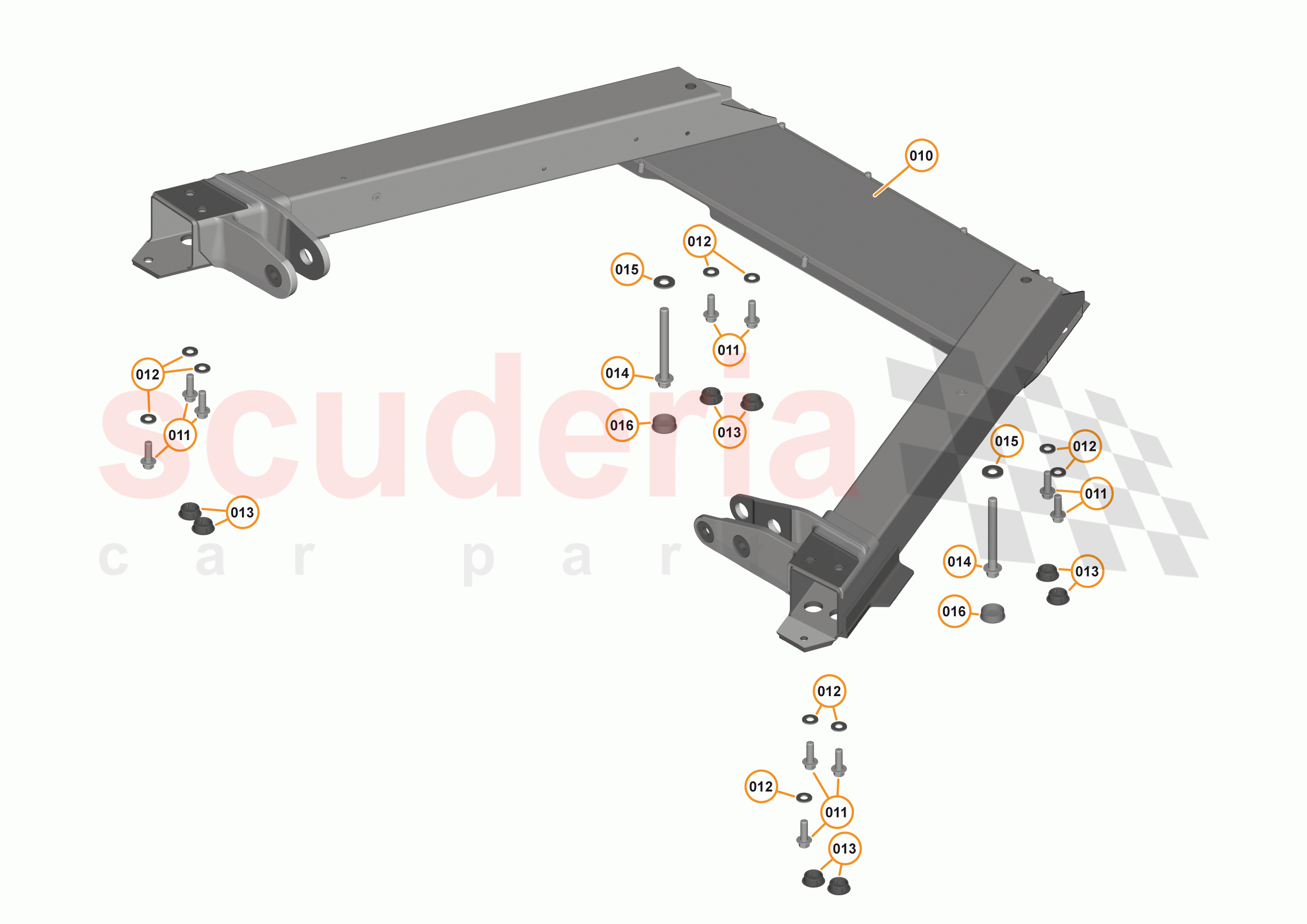

3 - REAR STRUCTURES - 3.3 - ENGINE CRADLE of McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14A1677CP
ENGINE CRADLE 		$7,291.24 1
TO
011 00RA457
SCREW - M10X30-10.9 - HEX 		- 10
PE
 Enquire
012 00RC065
WASHER - M10X21X2.0 		- 10
PE
 Enquire
013 11A4284CP
PLUG - DOME - 25 DIAMETER 		$2.00 8
TO
014 00RA575
BOLT - M12X110 - HEX 		- 2
PE
 Enquire
015 00RC066
WASHER - M12X28X2.5 		- 2
PE
 Enquire
016 00RG050
Plug - Dome - 33 Diameter 		- 2
PE
 Enquire
