7 - Closures - 7.6 - Door Latch

McLaren 720S Coupe

Find Your Part

McLaren 720S Coupe - 7 - CLOSURES - 7.6 - DOOR LATCH

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AD083CP LATCH DOOR - POWER CLOSE - RH $684.79 To Order
14AD084CP LATCH DOOR - POWER CLOSE - RH $684.79 To Order
11A8745CP Door Latch - RH $1,079.63 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC062 WASHER - M6 - SERRATED Enquire To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
16AF051CP DOOR STRIKER - SILVER $40.60 To Order
14AC217CP DOOR STRIKER $60.42 To Order
Photo Part No Description Price (each) Stock
00RA551 SCREW - COUNTERSUNK - HEX - M8X16 Enquire To Order
Photo Part No Description Price (each) Stock
14A3218CP MOULDING - DOOR STRIKER $40.60 To Order
Photo Part No Description Price (each) Stock
14A4435CP ASSY BRKT FNDR LWR RH $40.60 To Order
14AC679CP BRACKET - BODYSIDE - LOWER - ASSY BRKT FNDR LWR KEY BARREL $194.06 To Order
Photo Part No Description Price (each) Stock
13MA028CP SWITCH - DOOR LOCK - PIEZOELECTRIC $241.69 To Order
Photo Part No Description Price (each) Stock
14AB009CP EXTERIOR DOOR OPEN SWITCH $140.97 To Order
Photo Part No Description Price (each) Stock
00RC050 WASHER - M6X5.0MM Enquire To Order
Photo Part No Description Price (each) Stock
15AC144CP CABLE RELEASE - INTERNAL - DOOR LATCH $35.23 To Order

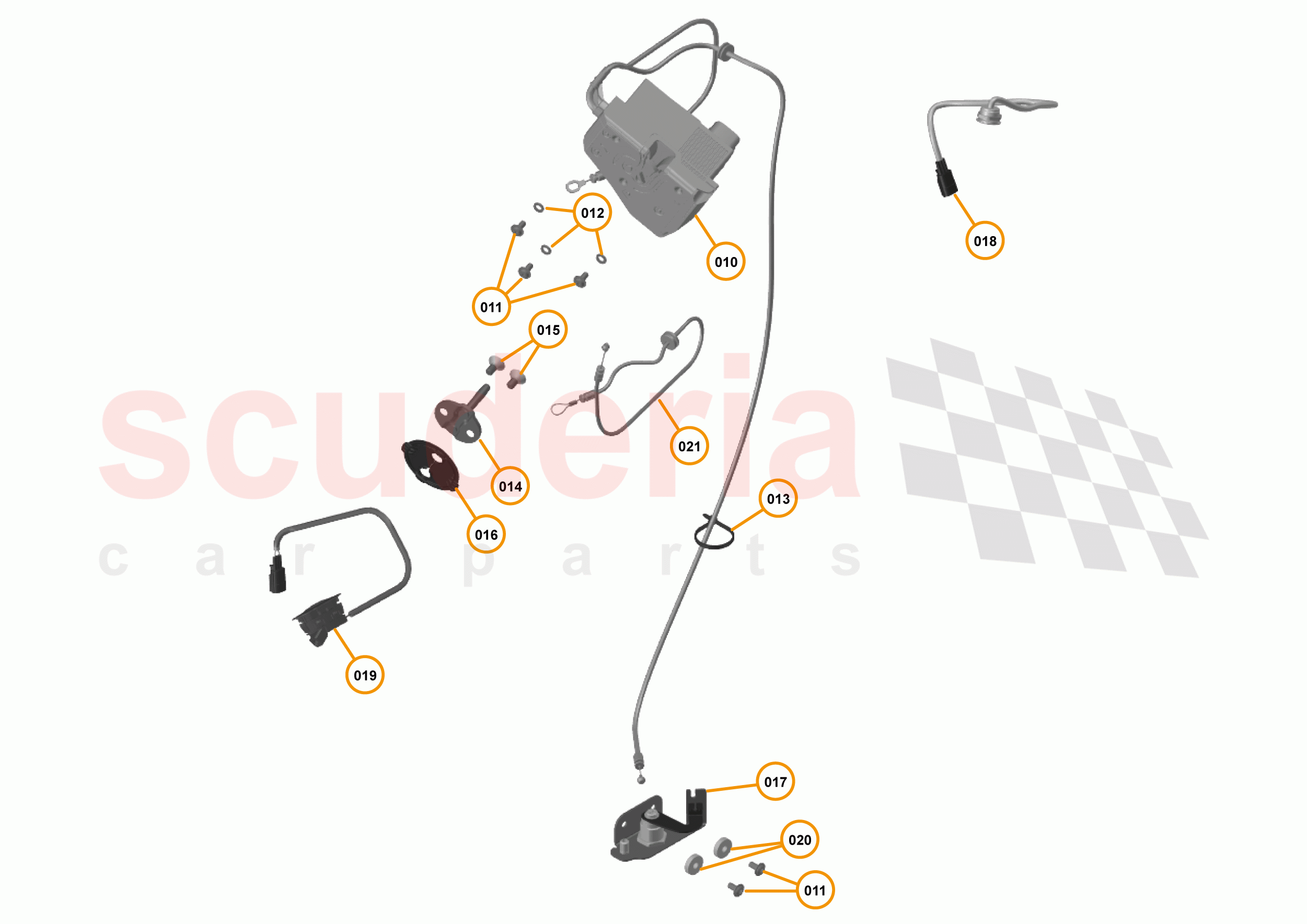

7 - CLOSURES - 7.6 - DOOR LATCH of McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AD083CP
LATCH DOOR - POWER CLOSE - RH 		$684.79 1
TO
010 14AD084CP
LATCH DOOR - POWER CLOSE - RH 		$684.79 1
TO
010 11A8745CP
Door Latch - RH 		$1,079.63 1
TO
010 14AC420CP
DOOR LATCH - SOFT CLOSE - RH
Superseded parts: 11A8743CP; 		$1,171.90 1
TO
010 11A8744CP
Door Latch - LH 		$1,079.63 1
TO
010 14AC419CP
DOOR LATCH - SOFT CLOSE - LH
Superseded parts: 11A8742CP; 		$1,171.90 1
TO
011 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 9
PE
 Enquire
012 00RC062
WASHER - M6 - SERRATED 		- 6
PE
 Enquire
013 00RL012
CABLE TIE - 300X4.6MM 		- 2
PE
 Enquire
014 16AF051CP
DOOR STRIKER - SILVER 		$40.60 2
TO
014 14AC217CP
DOOR STRIKER 		$60.42 2
TO
015 00RA551
SCREW - COUNTERSUNK - HEX - M8X16 		- 4
PE
 Enquire
016 14A3218CP
MOULDING - DOOR STRIKER 		$40.60 2
TO
017 14A4435CP
ASSY BRKT FNDR LWR RH 		$40.60 1
TO
017 14AC679CP
BRACKET - BODYSIDE - LOWER - ASSY BRKT FNDR LWR KEY BARREL 		$194.06 1
TO
018 13MA028CP
SWITCH - DOOR LOCK - PIEZOELECTRIC 		$241.69 1
TO
019 14AB009CP
EXTERIOR DOOR OPEN SWITCH 		$140.97 2
TO
020 00RC050
WASHER - M6X5.0MM 		- 3
PE
 Enquire
021 15AC144CP
CABLE RELEASE - INTERNAL - DOOR LATCH 		$35.23 1
TO
