7 - Closures - 7.5 - Door Hinge

McLaren 720S Coupe

Find Your Part

McLaren 720S Coupe - 7 - CLOSURES - 7.5 - DOOR HINGE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AB914CP HINGE - DOOR - LOWER COUPE - RH $1,691.89 To Order
14AB909CP HINGE - DOOR - LOWER COUPE - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA485 BOLT - HEX HEAD - FLANGED - M8X25 Enquire To Order
Photo Part No Description Price (each) Stock
00RC048 WASHER - FORM C - 21X1.6 - M8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA590 BOLT - HEX HEAD - FLANGED - M10X35 Enquire To Order
Photo Part No Description Price (each) Stock
00RA616 BOLT - M10X1.5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC034 WASHER - PLAIN - M12X28X2.7 Enquire To Order
Photo Part No Description Price (each) Stock
14AC854CP GAS STRUT - DOOR - LOWER $192.93 To Order
Photo Part No Description Price (each) Stock
11A4503CP BALL STUD - DOOR STRUT $25.37 To Order
Photo Part No Description Price (each) Stock
14AA600CP CLIP - SAFETY LOCKING - GAS STRUT - DOOR $1.49 To Order
Photo Part No Description Price (each) Stock
14A3741CP GROMMET - GAS STRUT - LH $45.68 To Order
14A3742CP GROMMET - GAS STRUT - RH $45.68 To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
14AD088CP PNL UPPER HINGE COVER RH $125.13 To Order
14AD087CP PNL UPPER HINGE COVER LH $125.13 To Order
Photo Part No Description Price (each) Stock
00RA601 SCREW - M6X1X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB012 CLIP - 2MM - TRIM PANEL Enquire To Order
Photo Part No Description Price (each) Stock
14AA503CP SEAL - UPPER HINGE - CAPPING - RH $60.90 To Order
14AA501CP SEAL - UPPER HINGE - CAPPING - LH $60.90 To Order
Photo Part No Description Price (each) Stock
00RA427 Starlock - Diameter 6mm Shaft - 8024 Enquire To Order
Photo Part No Description Price (each) Stock
14AB919CP HINGE - DOOR - UPPER COUPE - LH $805.65 To Order
14AB922CP HINGE - DOOR - UPPER COUPE - RH $758.19 To Order
Photo Part No Description Price (each) Stock
00RA483 SCREW - BUTTON HEAD - TORX - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
00RA600 SCREW - HEX HEAD - M6X1X20-8.8-78 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14AB924CP WASHER - M6X18X3 $3.23 To Order
Photo Part No Description Price (each) Stock
13AA448CP SHIM - DOOR HINGE - UPPER OUTBOARD - 0.6MM $25.37 To Order
Photo Part No Description Price (each) Stock
14AC497CP COVER - UPPER DOOR HINGE - RH Enquire To Order
14AD270CP PNL UPPER HINGE COVER LH $142.16 To Order

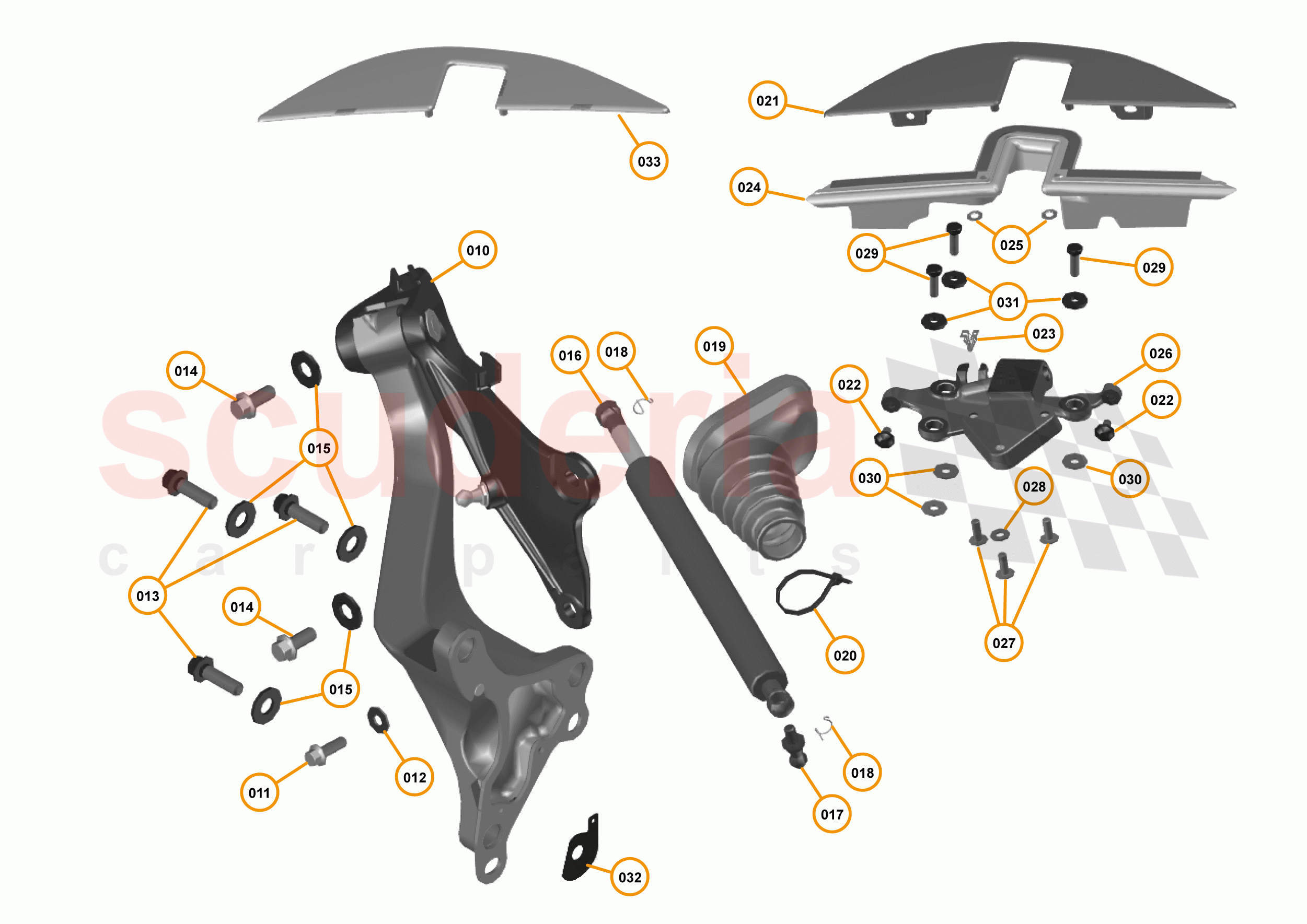

7 - CLOSURES - 7.5 - DOOR HINGE of McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AB914CP
HINGE - DOOR - LOWER COUPE - RH 		$1,691.89 1
TO
010 14AB909CP
HINGE - DOOR - LOWER COUPE - LH 		- 1
PE
 Enquire
011 00RA485
BOLT - HEX HEAD - FLANGED - M8X25 		- 2
PE
 Enquire
012 00RC048
WASHER - FORM C - 21X1.6 - M8 		- 2
PE
 Enquire
013 00RA590
BOLT - HEX HEAD - FLANGED - M10X35 		- 6
PE
 Enquire
014 00RA616
BOLT - M10X1.5 - HEX 		- 4
PE
 Enquire
015 00RC034
WASHER - PLAIN - M12X28X2.7 		- 10
PE
 Enquire
016 14AC854CP
GAS STRUT - DOOR - LOWER 		$192.93 2
TO
017 11A4503CP
BALL STUD - DOOR STRUT 		$25.37 2
TO
018 14AA600CP
CLIP - SAFETY LOCKING - GAS STRUT - DOOR 		$1.49 4
TO
019 14A3741CP
GROMMET - GAS STRUT - LH 		$45.68 1
TO
019 14A3742CP
GROMMET - GAS STRUT - RH 		$45.68 1
TO
020 00RL012
CABLE TIE - 300X4.6MM 		- 1
PE
 Enquire
021 14AD088CP
PNL UPPER HINGE COVER RH 		$125.13 1
TO
021 14AD087CP
PNL UPPER HINGE COVER LH 		$125.13 1
TO
022 00RA601
SCREW - M6X1X12 		- 4
PE
 Enquire
023 00RB012
CLIP - 2MM - TRIM PANEL 		- 2
PE
 Enquire
024 14AA503CP
SEAL - UPPER HINGE - CAPPING - RH 		$60.90 1
TO
024 14AA501CP
SEAL - UPPER HINGE - CAPPING - LH 		$60.90 1
TO
025 00RA427
Starlock - Diameter 6mm Shaft - 8024 		- 2
PE
 Enquire
026 14AB919CP
HINGE - DOOR - UPPER COUPE - LH 		$805.65 1
TO
026 14AB922CP
HINGE - DOOR - UPPER COUPE - RH 		$758.19 1
TO
027 00RA483
SCREW - BUTTON HEAD - TORX - M6X16 		- 6
PE
 Enquire
028 00RC028
WASHER - M6 FORM C 		- 2
PE
 Enquire
029 00RA600
SCREW - HEX HEAD - M6X1X20-8.8-78 		- 6
PE
 Enquire
030 00RC064
WASHER - M6X18X1.6 - BLACK 		- 6
PE
 Enquire
031 14AB924CP
WASHER - M6X18X3 		$3.23 6
TO
032 13AA448CP
SHIM - DOOR HINGE - UPPER OUTBOARD - 0.6MM 		$25.37 1
TO
033 14AC497CP
COVER - UPPER DOOR HINGE - RH 		- 1
PE
 Enquire
033 14AD270CP
PNL UPPER HINGE COVER LH 		$142.16 1
TO
