Name: 6 - PANELS - 6.4 - ENGINE BAY PANELS
Rating: 5.0 (1 reviews)

Diagram
INFO

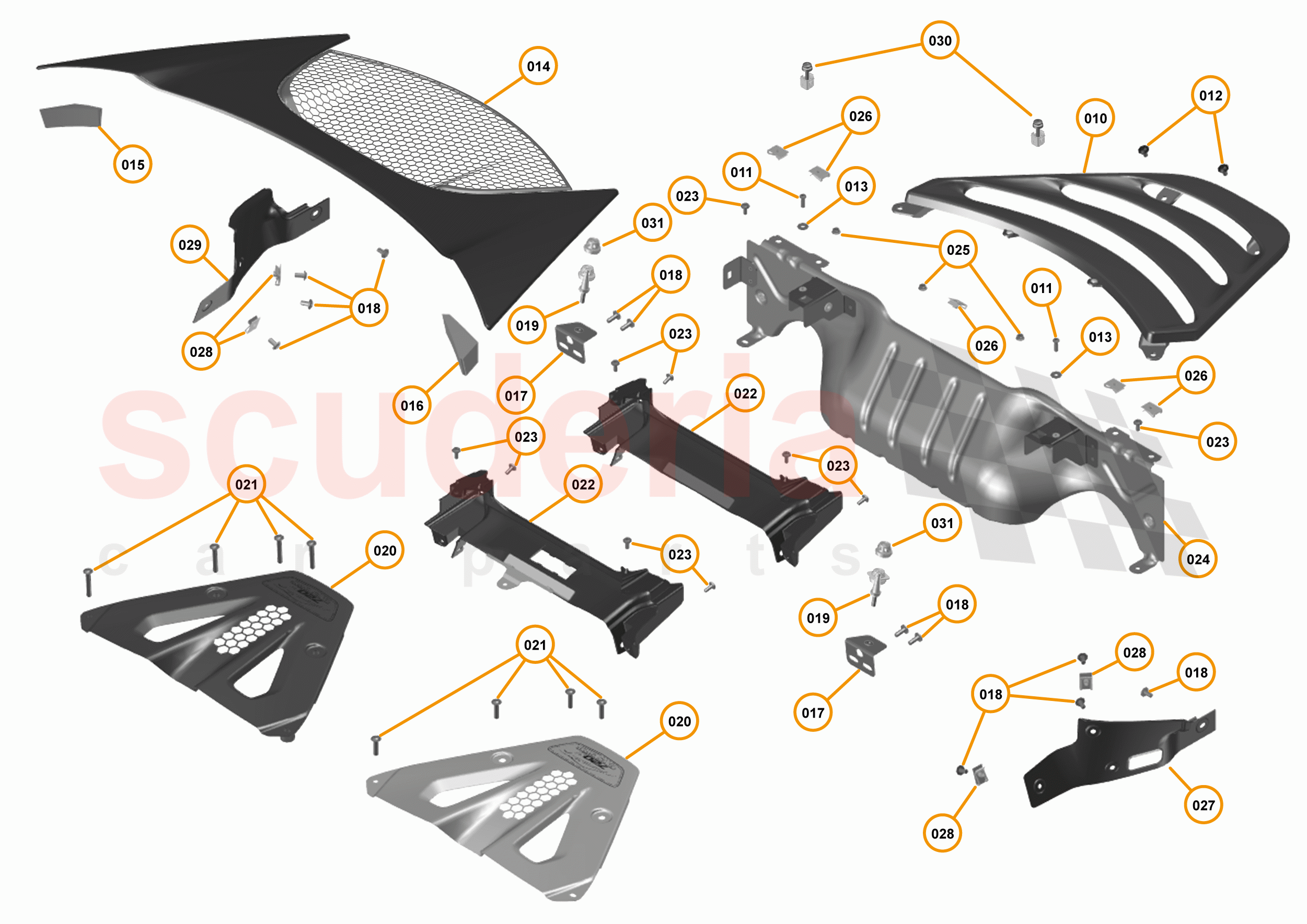

6 - PANELS - 6.4 - ENGINE BAY PANELS of McLaren McLaren 720S Coupe

McLaren 720S Coupe - 6 - PANELS - 6.4 - ENGINE BAY PANELS

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14AA032MP	DECK VENT - REAR - GLOSS CARBON FIBRE	Enquire	To Order
	14AB114CP	DECK VENT - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA521	SCREW - BUTTON HEAD - HEX - M5X16-10.9-86	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA621	SCREW - M6X24 - BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC017	WASHER - M5X15X1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AC838CP	ASSY - CF SERVICE COVER AIH - INC. MESH - SOP AIH	$4,647.88	To Order
	14AC162CP	ASSY - SERVICE COVER - INC. MESH	$2,641.73	To Order

Photo	Part No	Description	Price (each)	Stock
	14AC222CP	FOAM - SERVICE COVER - LH	$181.26	To Order

Photo	Part No	Description	Price (each)	Stock
	14AC223CP	FOAM - SERVICE COVER - RH	$191.32	To Order

Photo	Part No	Description	Price (each)	Stock
	14AC220CP	BRACKET LOWER - SERVICE COVER	$50.76	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA543	BALL STUD - REAR DECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA537CP	CLOSURES SEALS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA608	SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00	Enquire	To Order
	00RA753	SCR-BTN HD-TX-FL-M6X1X40-SS-90-LP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB164CP	HEATSHIELD - HIGH MOUNT STOP LAMP	$74.75	To Order
	14AB168CP	HEATSHIELD - HIGH MOUNT STOP LAMP - WITH ENGINE BAY LAMP	$151.05	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB175CP	HEATSHIELD - REAR DECK VENT	$563.95	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA582	NUT - M5 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB194	CLIP - U NUT - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A1965CP	SERVICE COVER - INNER - LH	$533.16	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB183	CLIP - U NUT - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A3534CP	SERVICE COVER - INNER - RH	$609.32	To Order

Photo	Part No	Description	Price (each)	Stock
	14AC818CP	SERV COVER FIXING COMPLETE	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC089	Snaploc - Socket - Bollhoff 40590060802	Enquire	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	14AA032MP	DECK VENT - REAR - GLOSS CARBON FIBRE	14AA032MP DECK VENT - REAR - GLOSS CARBON FIBRE	-	1	PE	Enquire
010	14AB114CP	DECK VENT - REAR	14AB114CP DECK VENT - REAR	-	1	PE	Enquire
011	00RA521	SCREW - BUTTON HEAD - HEX - M5X16-10.9-86	00RA521 SCREW - BUTTON HEAD - HEX - M5X16-10.9-86	-	2	PE	Enquire
012	00RA621	SCREW - M6X24 - BUTTON	00RA621 SCREW - M6X24 - BUTTON	-	2	PE	Enquire
013	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2	-	2	PE	Enquire
014	14AC838CP	ASSY - CF SERVICE COVER AIH - INC. MESH - SOP AIH	14AC838CP ASSY - CF SERVICE COVER AIH - INC. MESH - SOP AIH	$4,647.88	1	TO
014	14AC162CP	ASSY - SERVICE COVER - INC. MESH	14AC162CP ASSY - SERVICE COVER - INC. MESH	$2,641.73	1	TO
015	14AC222CP	FOAM - SERVICE COVER - LH	14AC222CP FOAM - SERVICE COVER - LH	$181.26	1	TO
016	14AC223CP	FOAM - SERVICE COVER - RH	14AC223CP FOAM - SERVICE COVER - RH	$191.32	1	TO
017	14AC220CP	BRACKET LOWER - SERVICE COVER	14AC220CP BRACKET LOWER - SERVICE COVER	$50.76	2	TO
018	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	-	12	PE	Enquire
019	00RA543	BALL STUD - REAR DECK	00RA543 BALL STUD - REAR DECK	-	2	PE	Enquire
020	14AA537CP	CLOSURES SEALS	14AA537CP CLOSURES SEALS	-	1	PE	Enquire
021	00RA608	SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00	00RA608 SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00	-	4	PE	Enquire
021	00RA753	SCR-BTN HD-TX-FL-M6X1X40-SS-90-LP	00RA753 SCR-BTN HD-TX-FL-M6X1X40-SS-90-LP	-	4	PE	Enquire
022	14AB164CP	HEATSHIELD - HIGH MOUNT STOP LAMP	14AB164CP HEATSHIELD - HIGH MOUNT STOP LAMP	$74.75	1	TO
022	14AB168CP	HEATSHIELD - HIGH MOUNT STOP LAMP - WITH ENGINE BAY LAMP	14AB168CP HEATSHIELD - HIGH MOUNT STOP LAMP - WITH ENGINE BAY LAMP	$151.05	1	TO
023	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	-	10	PE	Enquire
024	14AB175CP	HEATSHIELD - REAR DECK VENT	14AB175CP HEATSHIELD - REAR DECK VENT	$563.95	1	TO
025	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX	-	3	PE	Enquire
026	00RB194	CLIP - U NUT - M6	00RB194 CLIP - U NUT - M6	-	5	PE	Enquire
027	14A1965CP	SERVICE COVER - INNER - LH	14A1965CP SERVICE COVER - INNER - LH	$533.16	1	TO
028	00RB183	CLIP - U NUT - M6	00RB183 CLIP - U NUT - M6	-	4	PE	Enquire
029	14A3534CP	SERVICE COVER - INNER - RH	14A3534CP SERVICE COVER - INNER - RH	$609.32	1	TO
030	14AC818CP	SERV COVER FIXING COMPLETE	14AC818CP SERV COVER FIXING COMPLETE	$10.14	1	TO
031	00RC089	Snaploc - Socket - Bollhoff 40590060802	00RC089 Snaploc - Socket - Bollhoff 40590060802	-	1	PE	Enquire

6 - Panels - 6.4 - Engine Bay Panels

McLaren 720S Coupe

McLaren 720S Coupe - 6 - PANELS - 6.4 - ENGINE BAY PANELS
