14 - Ducts, Vents & Floors - 14.1 - Front Ducts & Vents

McLaren 720S Coupe

Find Your Part

McLaren 720S Coupe - 14 - DUCTS, VENTS & FLOORS - 14.1 - FRONT DUCTS & VENTS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14A0308CP DUCT - LOW TEMPERATURE RADIATOR - LH $302.10 To Order
Photo Part No Description Price (each) Stock
14AA416CP FOAM - LOW TEMPERATURE RADIATOR - UPPER - LH $9.72 To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
14A0309CP DUCT - LOW TEMPERATURE RADIATOR - RH $302.10 To Order
Photo Part No Description Price (each) Stock
14AB043CP FOAM - LOW TEMPERATURE RADIATOR - UPPER - RH $9.72 To Order
Photo Part No Description Price (each) Stock
11AA035CP FOAM GASKET - FRONT DUCT - END $25.15 To Order
Photo Part No Description Price (each) Stock
11AA036CP FOAM GASKET - FRONT DUCT - SIDE $25.15 To Order
Photo Part No Description Price (each) Stock
14A0310CP FRONT DUCT - LTR - REAR - LH $161.11 To Order
Photo Part No Description Price (each) Stock
14A0311CP FRONT DUCT - LTR - REAR - RH $161.11 To Order
Photo Part No Description Price (each) Stock
14A4693CP BRACE - UPPER - LH $59.56 To Order
Photo Part No Description Price (each) Stock
14A4696CP BRACE - UPPER - RH $59.56 To Order
Photo Part No Description Price (each) Stock
14A2599CP BRACKET - FRONT DUCT - REAR LH $24.80 To Order
Photo Part No Description Price (each) Stock
14A2601CP BRACKET - FRONT DUCT - REAR RH $24.80 To Order
Photo Part No Description Price (each) Stock
14A4275CP LTR EXIT DUCT INR 1 - LH Enquire To Order
Photo Part No Description Price (each) Stock
14A4277CP LTR EXIT DUCT INR 1 - RH Enquire To Order
Photo Part No Description Price (each) Stock
14A2306CP DUCT EXIT OUTER - LOW TEMPERATURE RADIATOR - LH Enquire To Order
Photo Part No Description Price (each) Stock
14A2311CP DUCT EXIT OUTER - LOW TEMPERATURE RADIATOR - RH Enquire To Order
Photo Part No Description Price (each) Stock
14A4278CP DUCT - LTR EXIT - INNER REAR - RH $120.83 To Order
Photo Part No Description Price (each) Stock
14A3067CP BRACKET - HORN - LH $65.98 To Order
Photo Part No Description Price (each) Stock
14A3069CP BRACKET - HORN - RH $65.98 To Order

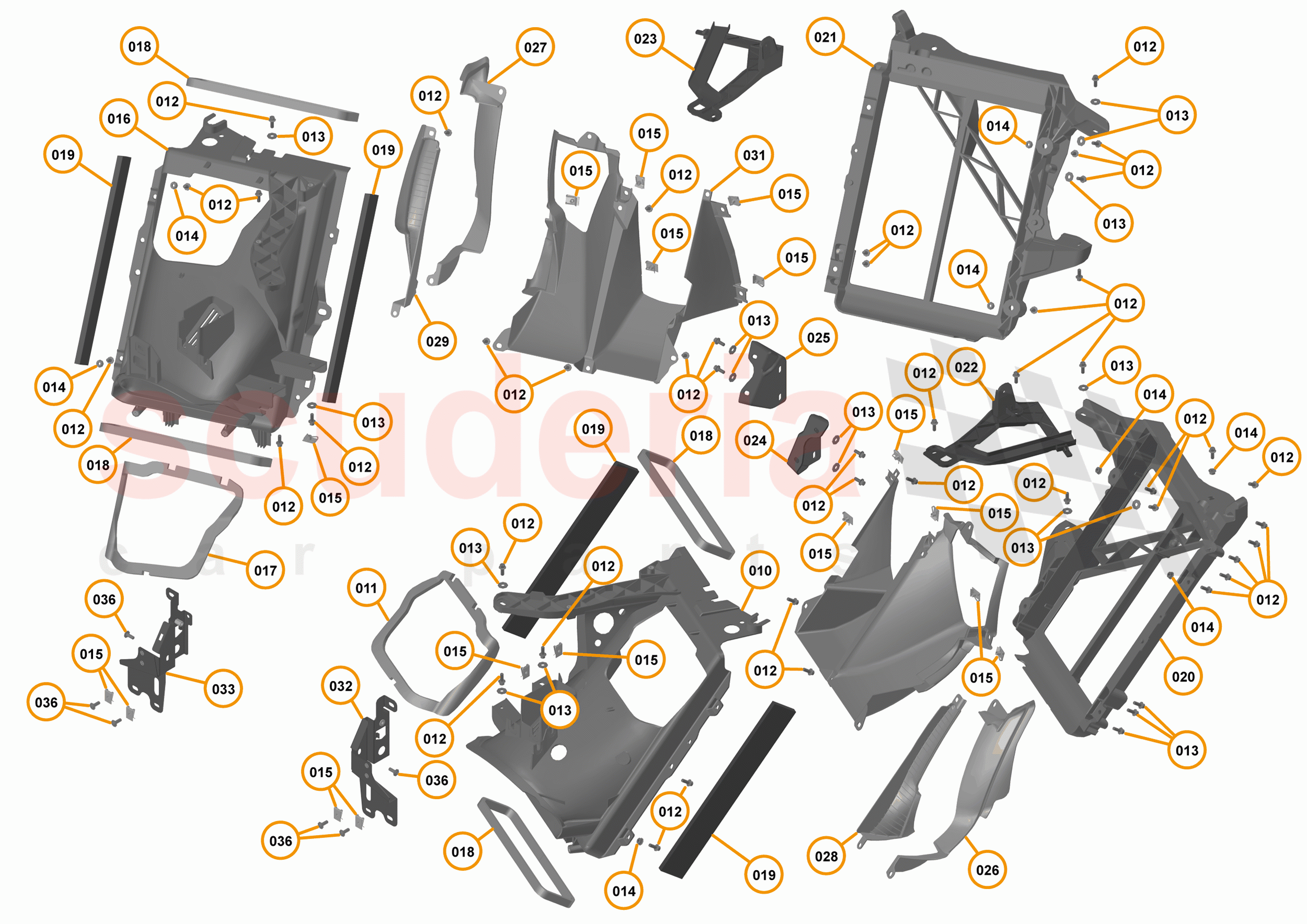

14 - DUCTS, VENTS & FLOORS - 14.1 - FRONT DUCTS & VENTS of McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14A0308CP
DUCT - LOW TEMPERATURE RADIATOR - LH 		$302.10 1
TO
011 14AA416CP
FOAM - LOW TEMPERATURE RADIATOR - UPPER - LH 		$9.72 1
TO
012 00RA556
BOLT - HEX - FLANGED - M6X16
Superseded parts: 00RA313; 		- 52
PE
 Enquire
013 00RC064
WASHER - M6X18X1.6 - BLACK 		- 18
PE
 Enquire
014 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 10
PE
 Enquire
015 00RB183
CLIP - U NUT - M6 		- 17
PE
 Enquire
016 14A0309CP
DUCT - LOW TEMPERATURE RADIATOR - RH 		$302.10 4
TO
017 14AB043CP
FOAM - LOW TEMPERATURE RADIATOR - UPPER - RH 		$9.72 1
TO
018 11AA035CP
FOAM GASKET - FRONT DUCT - END 		$25.15 4
TO
019 11AA036CP
FOAM GASKET - FRONT DUCT - SIDE 		$25.15 4
TO
020 14A0310CP
FRONT DUCT - LTR - REAR - LH 		$161.11 1
TO
021 14A0311CP
FRONT DUCT - LTR - REAR - RH 		$161.11 1
TO
022 14A4693CP
BRACE - UPPER - LH 		$59.56 1
TO
023 14A4696CP
BRACE - UPPER - RH 		$59.56 1
TO
024 14A2599CP
BRACKET - FRONT DUCT - REAR LH 		$24.80 1
TO
025 14A2601CP
BRACKET - FRONT DUCT - REAR RH 		$24.80 1
TO
026 14A4275CP
LTR EXIT DUCT INR 1 - LH 		- 1
PE
 Enquire
027 14A4277CP
LTR EXIT DUCT INR 1 - RH 		- 1
PE
 Enquire
028 14A2306CP
DUCT EXIT OUTER - LOW TEMPERATURE RADIATOR - LH 		- 1
PE
 Enquire
029 14A2311CP
DUCT EXIT OUTER - LOW TEMPERATURE RADIATOR - RH 		- 1
PE
 Enquire
030 14A4276CP
DUCT - LTR EXIT - INNER REAR - LH 		$110.42 1
TO
031 14A4278CP
DUCT - LTR EXIT - INNER REAR - RH 		$120.83 1
TO
032 14A3067CP
BRACKET - HORN - LH 		$65.98 1
TO
033 14A3069CP
BRACKET - HORN - RH 		$65.98 1
TO
034 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 6
PE
 Enquire
