30 - N3 - Seat Assembly - 30.1 - 01 - Seat Assembly - Misc

McLaren 675LT Coupe

Find Your Part

McLaren 675LT Coupe - 30 - N3 - SEAT ASSEMBLY - 30.1 - 01 - SEAT ASSEMBLY - MISC

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11N4091SP Film - Seat Back - RH Enquire To Order
11N4090SP Film - Seat Back - LH Enquire To Order
11N3143CP Seat - IEE - Wiring Harness - Full Electric $906.35 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11N3154CP Plastic Base Pan - Seat - IEE $1,067.48 To Order
Photo Part No Description Price (each) Stock
11N3146CP Seat - IEE - Heating Element Mat - Base $281.95 To Order
Photo Part No Description Price (each) Stock
11N2300CP Switchpack - Seat Electric - RH $866.06 To Order
11N1977CP Switchpack - Seat Electric - LH $866.06 To Order
Photo Part No Description Price (each) Stock
11N1945CP Control Unit - Seat - LH $521.85 To Order
11N1946CP Control Unit - Seat - RH $521.85 To Order
Photo Part No Description Price (each) Stock
11N3133CP Module and Rivets - Seat - Occupant Classification System - IEE $1,027.21 To Order
11N2306CP Module - Seat - Occupant Classification System $563.95 To Order
Photo Part No Description Price (each) Stock
11N2457CP Seatbelt - Buckle and Bolt - Electric $543.81 To Order
Photo Part No Description Price (each) Stock
11N1990CP Bolt - Side Panel - Seat $100.68 To Order
Photo Part No Description Price (each) Stock
11N1980CP Seat - Heating Element Mat - Back $201.40 To Order
Photo Part No Description Price (each) Stock
11N1940CP SEAT BACK CUSHION 24 $624.38 To Order
Photo Part No Description Price (each) Stock
11N2526CP Cap - Seat - Side Panel $111.69 To Order
Photo Part No Description Price (each) Stock
11N3149CP Seat - IEE - Side Panel - Carbon - RH - Electric $1,329.33 To Order
11N3147CP Seat - IEE - Side Panel - Plastic - RH $402.81 To Order
Photo Part No Description Price (each) Stock
11N2309CP SEAT COAT HOOK $40.26 To Order
Photo Part No Description Price (each) Stock
11N2456CP Seat - Back Shell - Carbon - RH - Electric $4,451.27 To Order
11N2455CP Seat - Back Shell - Carbon - LH - Electric $4,451.27 To Order
11N2454CP SEAT BACK SHELL RH24 ELEC $2,074.56 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11N3150CP Seat - IEE - Side Panel - Carbon - LH - Electric $1,329.33 To Order
11N3148CP Seat - IEE - Side Panel - Plastic - LH $402.81 To Order
Photo Part No Description Price (each) Stock
00RA325 SCREW - M8X20 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
11N3145CP Seat - Base - Foam $342.38 To Order
Photo Part No Description Price (each) Stock
11N1943CP Seat - Lumber Support $725.08 To Order
Photo Part No Description Price (each) Stock
11N1976CP Seat - Tilt Lever & Cables $543.81 To Order
Photo Part No Description Price (each) Stock
11N1991CP Clip Set - Seat Cover Retaining $30.44 To Order
Photo Part No Description Price (each) Stock
11N2463CP Foam Block - Seat Lower - RH $71.07 To Order
Photo Part No Description Price (each) Stock
11N2464CP Foam Block - Seat Lower - LH $71.07 To Order
Photo Part No Description Price (each) Stock
11N3140CP Seat - Base - IEE- Electric - RH $4,632.55 To Order
11N3139CP Seat - Base - IEE- Electric - LH $4,713.12 To Order
Photo Part No Description Price (each) Stock
11N2999CP Felt - Ring - 1mm - 10mm - Black $0.89 To Order
Photo Part No Description Price (each) Stock
11N3159CP Bracket - Seat - IEE - Electronic $302.10 To Order
Photo Part No Description Price (each) Stock
11N3157CP Bracket - Seat - IEE - Anti Rotation $483.38 To Order
Photo Part No Description Price (each) Stock
11N3161CP Seat - Electric - Bezel - Release Strap - LH $488.54 To Order
Photo Part No Description Price (each) Stock
11N3160CP Seat - Electric - Bezel - Release Strap - RH $488.54 To Order
Photo Part No Description Price (each) Stock
11N3158CP Seat - IEE - Mechanism Bolt Kit $281.95 To Order
Photo Part No Description Price (each) Stock
11N3156CP Seat - IEE - Pull Up Circuit Kit $503.52 To Order
Photo Part No Description Price (each) Stock
11N3153CP Sensor Mat - Occupant Classification System - IEE $503.52 To Order

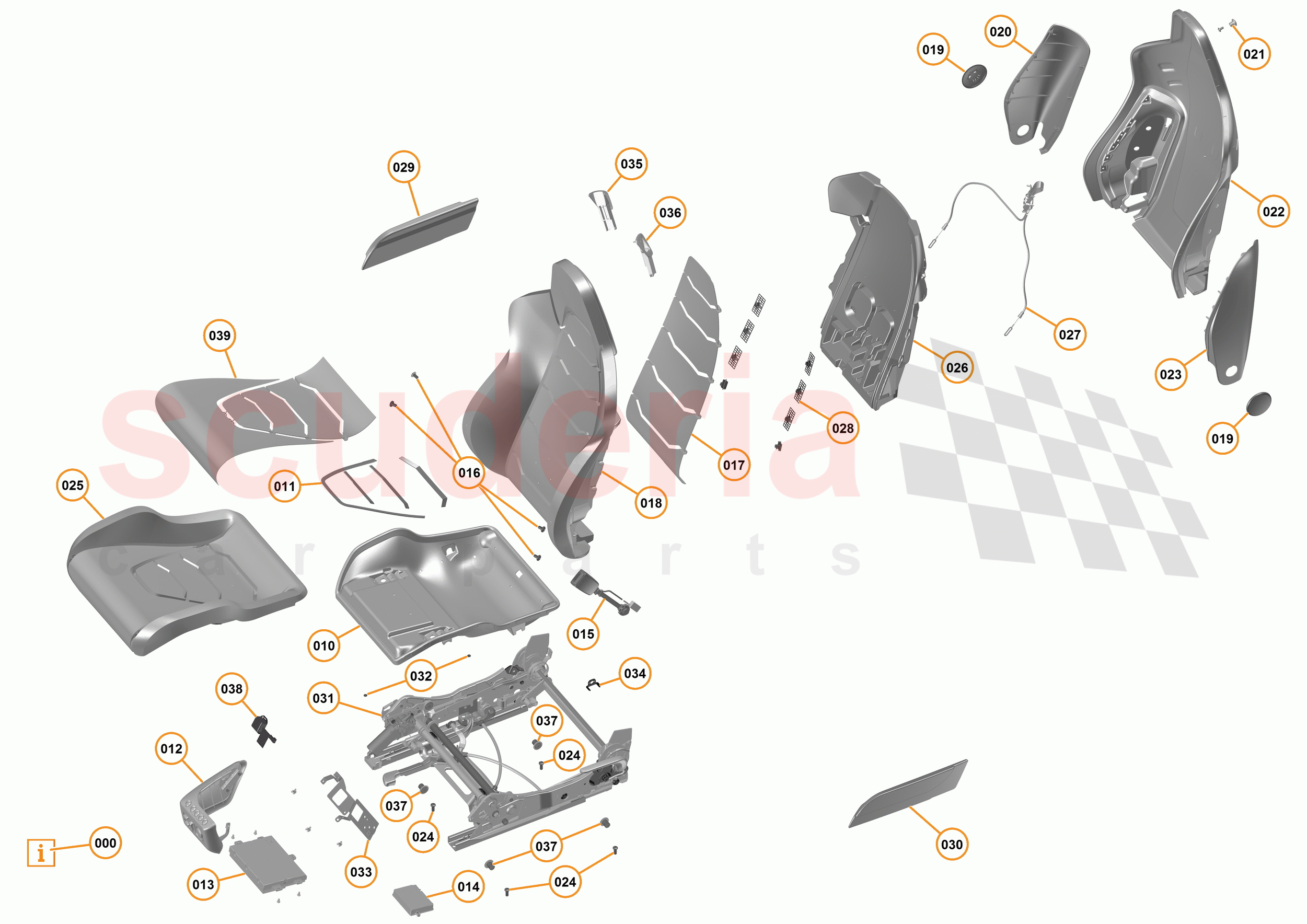

30 - N3 - SEAT ASSEMBLY - 30.1 - 01 - SEAT ASSEMBLY - MISC of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11N4091SP
Film - Seat Back - RH 		- 1
PE
 Enquire
000 11N4090SP
Film - Seat Back - LH 		- 1
PE
 Enquire
000 11N3143CP
Seat - IEE - Wiring Harness - Full Electric 		$906.35 1
TO
000 11N2527CP
Stud - Seat Belt Buckle 		$100.68 2
TO
000 11N3155CP
Fixing Kit - Plastic Base Pan - Seat - IEE 		$120.83 1
TO
010 11N3154CP
Plastic Base Pan - Seat - IEE 		$1,067.48 1
TO
011 11N3146CP
Seat - IEE - Heating Element Mat - Base 		$281.95 1
TO
012 11N2300CP
Switchpack - Seat Electric - RH 		$866.06 1
TO
012 11N1977CP
Switchpack - Seat Electric - LH 		$866.06 1
TO
013 11N1945CP
Control Unit - Seat - LH 		$521.85 1
TO
013 11N1946CP
Control Unit - Seat - RH 		$521.85 1
TO
014 11N3133CP
Module and Rivets - Seat - Occupant Classification System - IEE 		$1,027.21 1
TO
014 11N2306CP
Module - Seat - Occupant Classification System 		$563.95 1
TO
015 11N2457CP
Seatbelt - Buckle and Bolt - Electric 		$543.81 1
TO
016 11N1990CP
Bolt - Side Panel - Seat 		$100.68 4
TO
017 11N1980CP
Seat - Heating Element Mat - Back 		$201.40 1
TO
018 11N1940CP
SEAT BACK CUSHION 24 		$624.38 1
TO
019 11N2526CP
Cap - Seat - Side Panel 		$111.69 2
TO
020 11N3149CP
Seat - IEE - Side Panel - Carbon - RH - Electric 		$1,329.33 1
TO
020 11N3147CP
Seat - IEE - Side Panel - Plastic - RH 		$402.81 1
TO
021 11N2309CP
SEAT COAT HOOK 		$40.26 1
TO
022 11N2456CP
Seat - Back Shell - Carbon - RH - Electric 		$4,451.27 1
TO
022 11N2455CP
Seat - Back Shell - Carbon - LH - Electric 		$4,451.27 1
TO
022 11N2454CP
SEAT BACK SHELL RH24 ELEC 		$2,074.56 1
TO
022 11N2453CP
SEAT BACK SHELL LH24 ELEC 		$2,074.56 1
TO
022 11N1982CP
SEAT BACK SHELL - 24N 		$2,215.55 1
TO
023 11N3150CP
Seat - IEE - Side Panel - Carbon - LH - Electric 		$1,329.33 1
TO
023 11N3148CP
Seat - IEE - Side Panel - Plastic - LH 		$402.81 1
TO
024 00RA325
SCREW - M8X20 - BUTTON 		- 8
PE
 Enquire
025 11N3145CP
Seat - Base - Foam 		$342.38 1
TO
026 11N1943CP
Seat - Lumber Support 		$725.08 1
TO
027 11N1976CP
Seat - Tilt Lever & Cables 		$543.81 1
TO
028 11N1991CP
Clip Set - Seat Cover Retaining 		$30.44 1
TO
029 11N2463CP
Foam Block - Seat Lower - RH 		$71.07 1
TO
030 11N2464CP
Foam Block - Seat Lower - LH 		$71.07 1
TO
031 11N3140CP
Seat - Base - IEE- Electric - RH 		$4,632.55 1
TO
031 11N3139CP
Seat - Base - IEE- Electric - LH 		$4,713.12 1
TO
032 11N2999CP
Felt - Ring - 1mm - 10mm - Black 		$0.89 2
TO
033 11N3159CP
Bracket - Seat - IEE - Electronic 		$302.10 2
TO
034 11N3157CP
Bracket - Seat - IEE - Anti Rotation 		$483.38 2
TO
035 11N3161CP
Seat - Electric - Bezel - Release Strap - LH 		$488.54 1
TO
036 11N3160CP
Seat - Electric - Bezel - Release Strap - RH 		$488.54 1
TO
037 11N3158CP
Seat - IEE - Mechanism Bolt Kit 		$281.95 1
TO
038 11N3156CP
Seat - IEE - Pull Up Circuit Kit 		$503.52 1
TO
039 11N3153CP
Sensor Mat - Occupant Classification System - IEE 		$503.52 1
TO
040 11N1942CP
Seatbelt - Buckle and Bolt - Manual 		$322.24 1
TO
