McLaren 675LT Coupe - 16 - F1 - POWER UNIT - 16.7 - 01 - POWER UNIT - OIL FILTER ASSEMBLY + OIL PUMP

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F0690CP Seal - Engine Oil Pump $30.44 To Order
11F2172CP Nut - Oil Pump Sprocket $20.29 To Order
Photo Part No Description Price (each) Stock
11F1217CP Gasket - Turbocharger - Oil Return Hose Enquire To Order
Photo Part No Description Price (each) Stock
11F2806CP ORING-SEAL-16X2 $7.69 IN STOCK
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F2171CP VEE MODULE - BLOCK SEAL KIT $111.69 To Order
11F0725CP ENGINE VEE MODULE ASSY SEALS $446.36 To Order
Photo Part No Description Price (each) Stock
11F0107CP OIL-FILTER $45.67 IN STOCK
Photo Part No Description Price (each) Stock
11F0746CP ENGINE OIL FILTER 24P ASSY Enquire To Order
Photo Part No Description Price (each) Stock
11F2804CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH $203.09 To Order
Photo Part No Description Price (each) Stock
13F0755CP HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - LH $243.70 To Order
Photo Part No Description Price (each) Stock
11F1131CP Banjo Washer - Turbo Oil Feed $6.48 To Order
Photo Part No Description Price (each) Stock
11F1016CP SEALS-COOLER-VEE-MOD-ENGINE $111.69 To Order
Photo Part No Description Price (each) Stock
13F0747CP OIL COOLER - ENGINE $771.79 To Order
Photo Part No Description Price (each) Stock
11F1388CP Bolt - Stud M6x74 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F1278CP Switch - Engine Oil Pressure $65.44 To Order
Photo Part No Description Price (each) Stock
13F0754CP DRAIN TUBE - OIL TANK $345.26 To Order
Photo Part No Description Price (each) Stock
00RB091 Oetiker Clip - 18.5 Enquire To Order
Photo Part No Description Price (each) Stock
11F1030CP Seal Kit - Oil Pump to Block - Engine $81.23 To Order
Photo Part No Description Price (each) Stock
11F0690CP Seal - Engine Oil Pump $30.44 To Order
Photo Part No Description Price (each) Stock
11F1149CP Bolt - M8x40 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0823CP Bolt - M6x35 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
13F0756CP HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH $142.16 To Order
Photo Part No Description Price (each) Stock
11F2805CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH $446.82 To Order
Photo Part No Description Price (each) Stock
11F1803RP Oil Pump - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F2288RP Cover - Oil Pump - 675LT $140.97 To Order
Photo Part No Description Price (each) Stock
13F0762CP BOLT - HOLLOW - M12 $40.60 To Order

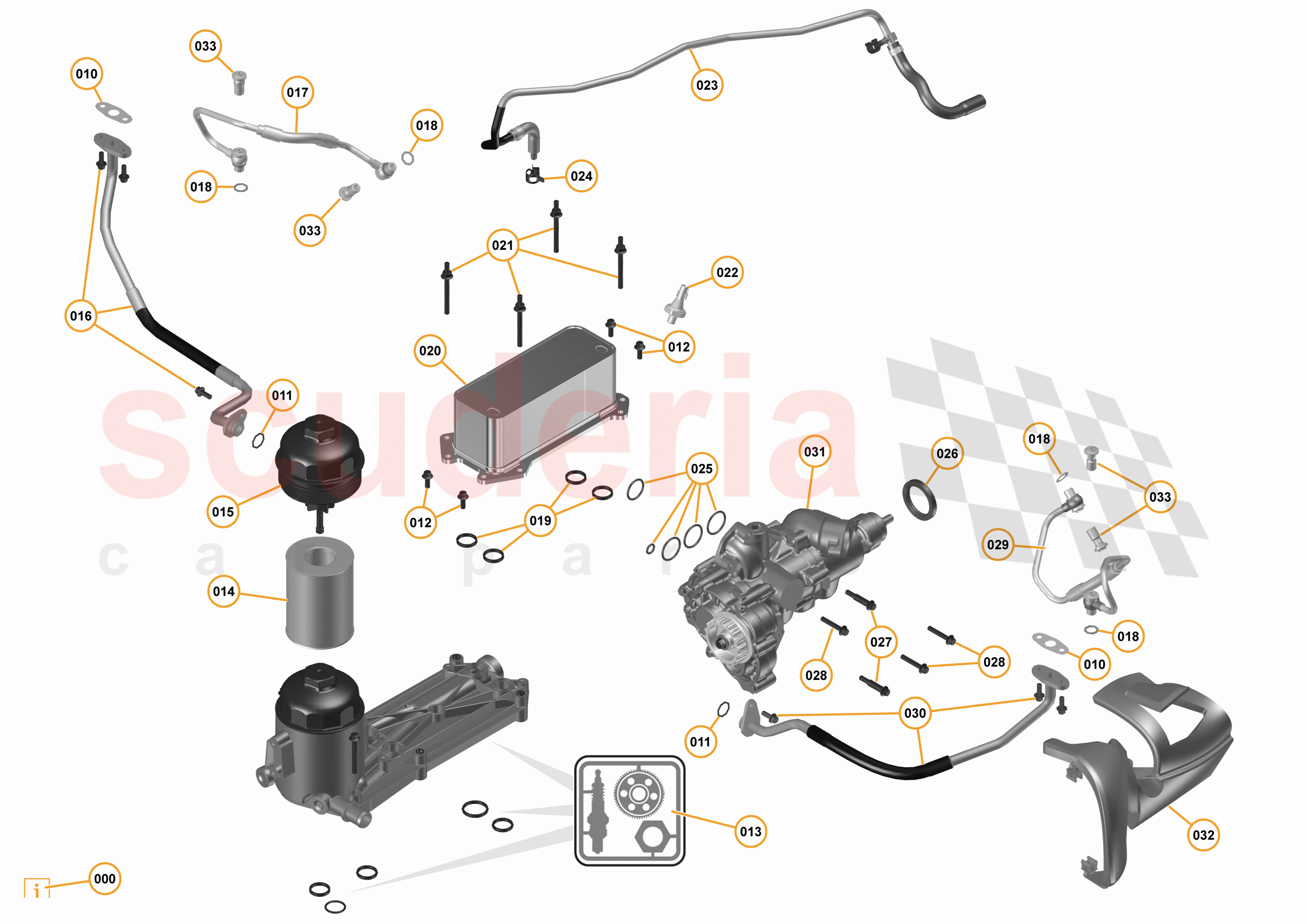

16 - F1 - POWER UNIT - 16.7 - 01 - POWER UNIT - OIL FILTER ASSEMBLY + OIL PUMP of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

11F0690CP

SEAL - ENGINE OIL PUMP

from $30.44

000 11F2172CP
Nut - Oil Pump Sprocket 		$20.29 1
TO
010 11F1217CP
Gasket - Turbocharger - Oil Return Hose 		- 2
PE
 Enquire
011 11F2806CP
ORING-SEAL-16X2
IN STOCK 		$7.69 2
IN
012 11F0822CP
Bolt - M6x16 - Engine 		- 1
PE
 Enquire
013 11F2171CP
VEE MODULE - BLOCK SEAL KIT 		$111.69 1
TO
013 11F0725CP
ENGINE VEE MODULE ASSY SEALS 		$446.36 1
TO
014 11F0107CP
OIL-FILTER
IN STOCK 		$45.67 1
IN
015 11F0746CP
ENGINE OIL FILTER 24P ASSY 		- 2
PE
 Enquire
016 11F2804CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH
Superseded parts: 11F0693CP; 		$203.09 1
TO
017 13F0755CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - LH 		$243.70 1
TO
018 11F1131CP
Banjo Washer - Turbo Oil Feed 		$6.48 8
TO
019 11F1016CP
SEALS-COOLER-VEE-MOD-ENGINE 		$111.69 1
TO
020 13F0747CP
OIL COOLER - ENGINE 		$771.79 1
TO
021 11F1388CP
Bolt - Stud M6x74 - Engine
Superseded parts: 11F0973CP; 		- 1
PE
 Enquire
022 11F1278CP
Switch - Engine Oil Pressure
Superseded parts: 11F1266CP; 		$65.44 1
TO
023 13F0754CP
DRAIN TUBE - OIL TANK 		$345.26 1
TO
024 00RB091
Oetiker Clip - 18.5 		- 1
PE
 Enquire
025 11F1030CP
Seal Kit - Oil Pump to Block - Engine 		$81.23 1
TO
027 11F1149CP
Bolt - M8x40 - Engine 		- 1
PE
 Enquire
028 11F0823CP
Bolt - M6x35 - Engine 		- 1
PE
 Enquire
029 13F0756CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH 		$142.16 1
TO
030 11F2805CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH
Superseded parts: 11F0694CP; 		$446.82 1
TO
031 11F1803RP
Oil Pump - Engine 		- 1
PE
 Enquire
032 11F2288RP
Cover - Oil Pump - 675LT 		$140.97 1
TO
033 13F0762CP
BOLT - HOLLOW - M12 		$40.60 2
TO
