16 - F1 - Power Unit - 16.18 - 02 - Air Intake System

McLaren 675LT Coupe

Find Your Part

McLaren 675LT Coupe - 16 - F1 - POWER UNIT - 16.18 - 02 - AIR INTAKE SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RM003 Rivet - DIA 5 x 10 - Torx Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11F1809RP Duct - External Air Intake to Airbox - Coupe - RH - 675LT $422.96 To Order
Photo Part No Description Price (each) Stock
13F0288CP Airbox Assy - Engine - RH Enquire To Order
Photo Part No Description Price (each) Stock
11F0238CP DUCT-MAF TUBE TO T24-RH $203.09 To Order
Photo Part No Description Price (each) Stock
11F0471CP SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE $30.44 To Order
Photo Part No Description Price (each) Stock
00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
11F0217CP AIR FILTER $121.84 IN STOCK
Photo Part No Description Price (each) Stock
11F0020CP SENSOR-MASS AIR FL24 $619.78 To Order
Photo Part No Description Price (each) Stock
11F0470CP Isolator - Mass Air Flow Tube $12.17 To Order
Photo Part No Description Price (each) Stock
11F0246CP MAF TUBE $345.26 To Order
Photo Part No Description Price (each) Stock
11F0944CP ELBOW-AIRBOX TO MA24TUBE-RH $264.02 To Order
Photo Part No Description Price (each) Stock
00RA073 SCREW - M6X30 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11F0943CP ELBOW-AIRBOX TO MA24TUBE-LH $264.02 To Order
Photo Part No Description Price (each) Stock
13F0283CP Airbox Assy - Engine - LH Enquire To Order
Photo Part No Description Price (each) Stock
11F0641CP Airbox Service Panel - Engine $172.62 To Order
Photo Part No Description Price (each) Stock
11F1808RP Duct - External Air Intake to Airbox - Coupe - LH - 675LT $422.96 To Order
Photo Part No Description Price (each) Stock
11F1057CP Duct - Mass Air Flow Tube to Turbocharger - Engine - LH $203.09 To Order
Photo Part No Description Price (each) Stock
00RB068 Hose Clamp - 80-100 - Norma Torro Enquire To Order
Photo Part No Description Price (each) Stock
11F0889CP SPACER - TOPHAT - AIRBOX $20.29 To Order
Photo Part No Description Price (each) Stock
00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Enquire To Order
Photo Part No Description Price (each) Stock
00RL023 CABLE TIE - HIGH TEMP Enquire To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
11F2293RP Dirty Air Duct - ISG Spigot - 675LT $119.17 To Order

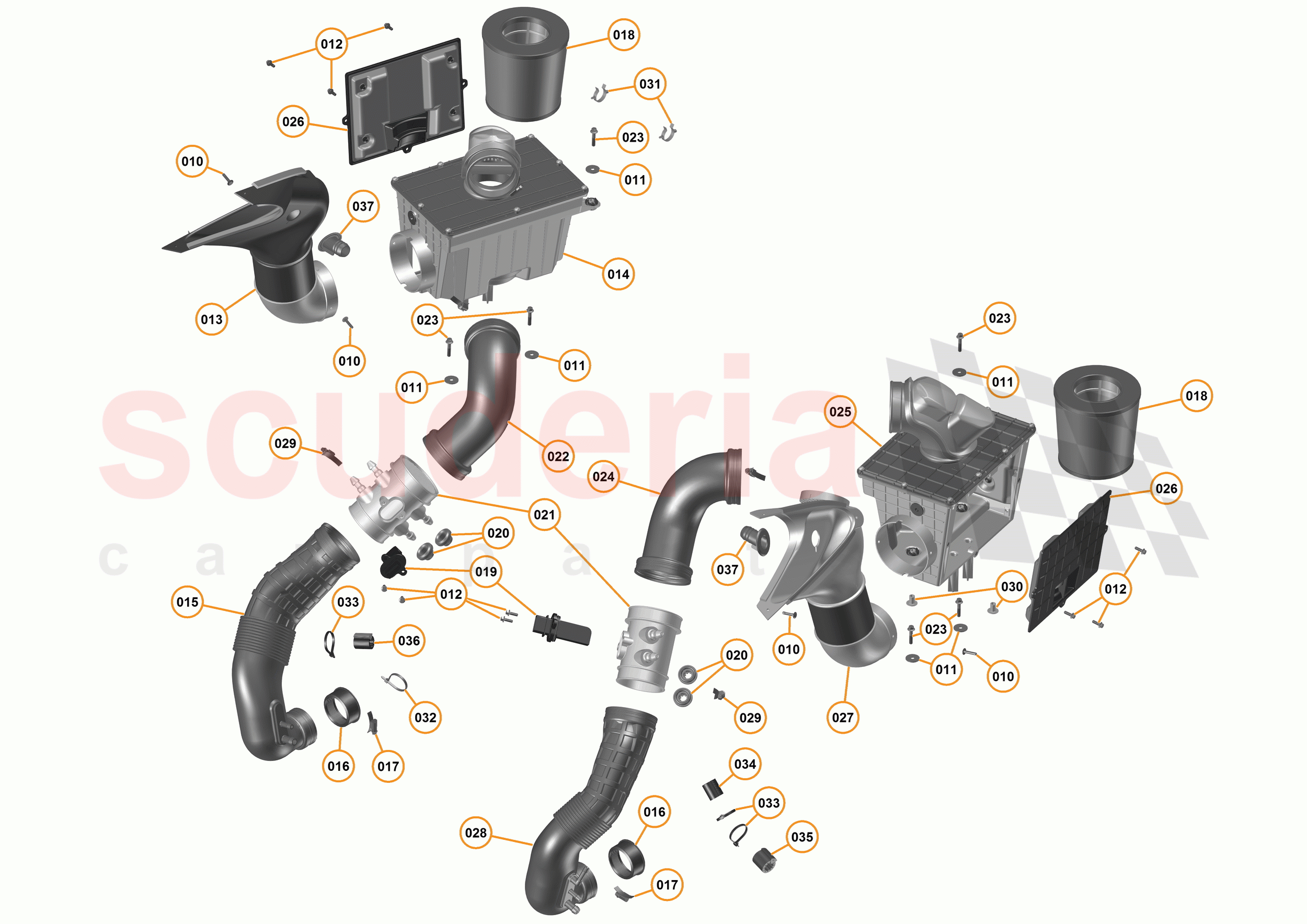

16 - F1 - POWER UNIT - 16.18 - 02 - AIR INTAKE SYSTEM of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RM003
Rivet - DIA 5 x 10 - Torx 		- 4
PE
 Enquire
011 00RC043
WASHER - M6XOD25 		- 6
PE
 Enquire
012 00RX001
BOLT - M5X16 - HEX 		- 10
PE
 Enquire
013 11F1809RP
Duct - External Air Intake to Airbox - Coupe - RH - 675LT 		$422.96 1
TO
014 13F0288CP
Airbox Assy - Engine - RH 		- 1
PE
 Enquire
015 11F0238CP
DUCT-MAF TUBE TO T24-RH 		$203.09 1
TO
016 11F0471CP
SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE 		$30.44 2
TO
017 00RB030
HOSE CLAMP - 60-80 - NORMA TORRO 		- 2
PE
 Enquire
018 11F0217CP
AIR FILTER
IN STOCK 		$121.84 2
IN
019 11F0020CP
SENSOR-MASS AIR FL24 		$619.78 2
TO
020 11F0470CP
Isolator - Mass Air Flow Tube 		$12.17 4
TO
021 11F0246CP
MAF TUBE
MAF Tube; 		$345.26 2
TO
022 11F0944CP
ELBOW-AIRBOX TO MA24TUBE-RH 		$264.02 1
TO
023 00RA073
SCREW - M6X30 - HEX 		- 6
PE
 Enquire
024 11F0943CP
ELBOW-AIRBOX TO MA24TUBE-LH 		$264.02 1
TO
025 13F0283CP
Airbox Assy - Engine - LH 		- 1
PE
 Enquire
026 11F0641CP
Airbox Service Panel - Engine 		$172.62 2
TO
027 11F1808RP
Duct - External Air Intake to Airbox - Coupe - LH - 675LT 		$422.96 1
TO
028 11F1057CP
Duct - Mass Air Flow Tube to Turbocharger - Engine - LH 		$203.09 1
TO
029 00RB068
Hose Clamp - 80-100 - Norma Torro 		- 2
PE
 Enquire
030 11F0889CP
SPACER - TOPHAT - AIRBOX 		$20.29 3
TO
031 00RG028
CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 		- 2
PE
 Enquire
032 00RL023
CABLE TIE - HIGH TEMP 		- 1
PE
 Enquire
033 00RL012
CABLE TIE - 300X4.6MM 		- 3
PE
 Enquire
034 00RA366
PIPE PROTECTOR - 13MM ID 		- 1
PE
 Enquire
035 00RA367
PIPE PROTECTOR - 19MM ID 		- 1
PE
 Enquire
036 00RA357
PIPE PROTECTOR 		- 1
PE
 Enquire
037 11F2293RP
Dirty Air Duct - ISG Spigot - 675LT 		$119.17 2
TO
