McLaren 675LT Coupe - 7 - B2 - REAR SUSPENSION - 7.3 - 04 - DAMPING REAR PIPES KINETIC H2

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

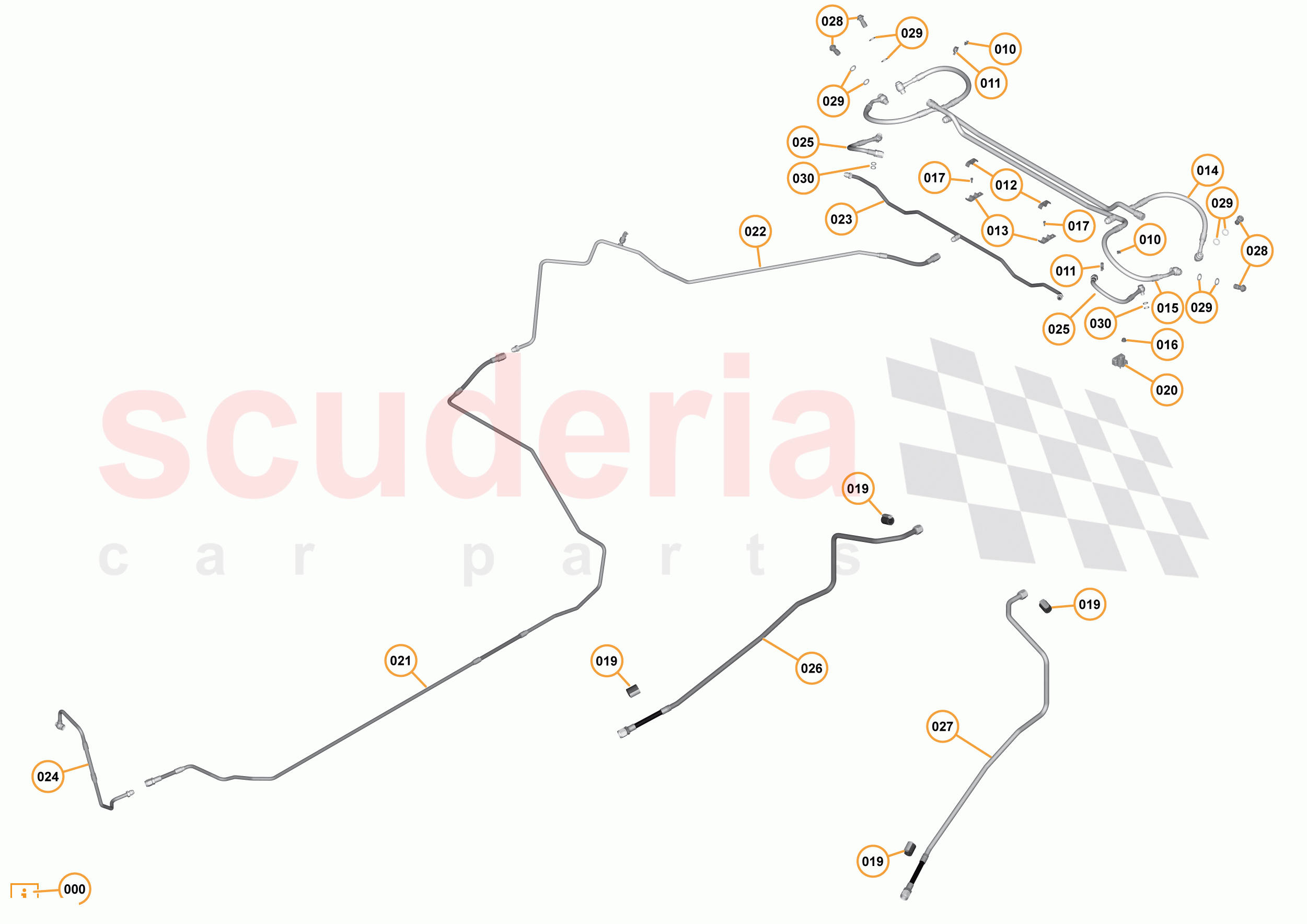

7 - B2 - REAR SUSPENSION - 7.3 - 04 - DAMPING REAR PIPES KINETIC H2 of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11B1615CP
QUICK RELEASE - SUSPENSION BLEED CONNECTOR 		$247.20 2
TO
010 00RB024
CLIP - 6.0-6.5MM - FEMALE 		- 2
PE
 Enquire
011 00RB034
CLIP - 14-15MM - MALE 		- 2
PE
 Enquire
012 11B0703CP
Hose Seperator - Upper 		$40.60 1
TO
013 11B0704CP
HOSE SEPERATOR-LOW24 		$40.60 1
TO
014 11B1347CP
Hose - Suspension - Lateral - Rear - Upper - MY2015 		$1,188.33 1
TO
015 11B1348CP
Hose - Suspension - Lateral - Rear - Lower - MY2015 		$2,819.80 1
TO
016 00RA055
NUT - M6 - LOCKING - HEX 		- 1
PE
 Enquire
017 00RA058
SCREW - M4X10 - CAP SOCKET - 12.9 		- 2
PE
 Enquire
019 00RA357
PIPE PROTECTOR 		- 4
PE
 Enquire
020 11M0252CP
Sensor - Accelerometer 		$201.40 1
TO
021 11B1114CP
Hose - Suspension - Rear - Nose Lift 		$913.96 1
TO
022 11B1115CP
Hose - Suspension - Rear Frame - Nose Lift 		$629.62 1
TO
023 11B0986CP
Hose - Suspension - Rear to Dampers - Nose Lift 		$345.26 1
TO
024 11B1112CP
Hose - Suspension - Rear to Valve - Nose Lift 		$487.43 1
TO
025 11B1113CP
Hose - Damper Flexi - Rear - Noselift 		$243.70 2
TO
026 11B1346CP
Pipe - Suspension - Frame to Lateral Upper Pipe - Rear - RH 		$1,502.99 1
TO
027 11B1345CP
Pipe - Suspension - LH Frame to Lateral Lower Pipe - Rear 		$1,482.67 1
TO
028 12F0684CP
Banjo Bolt - M14x1.5 		$45.68 4
TO
029 12F0685CP
Washer - Sealing - M14 		$10.14 8
TO
030 11F1277SP
Washer - M10 x 1.27 x 14.8 		$1.19 4
TO
